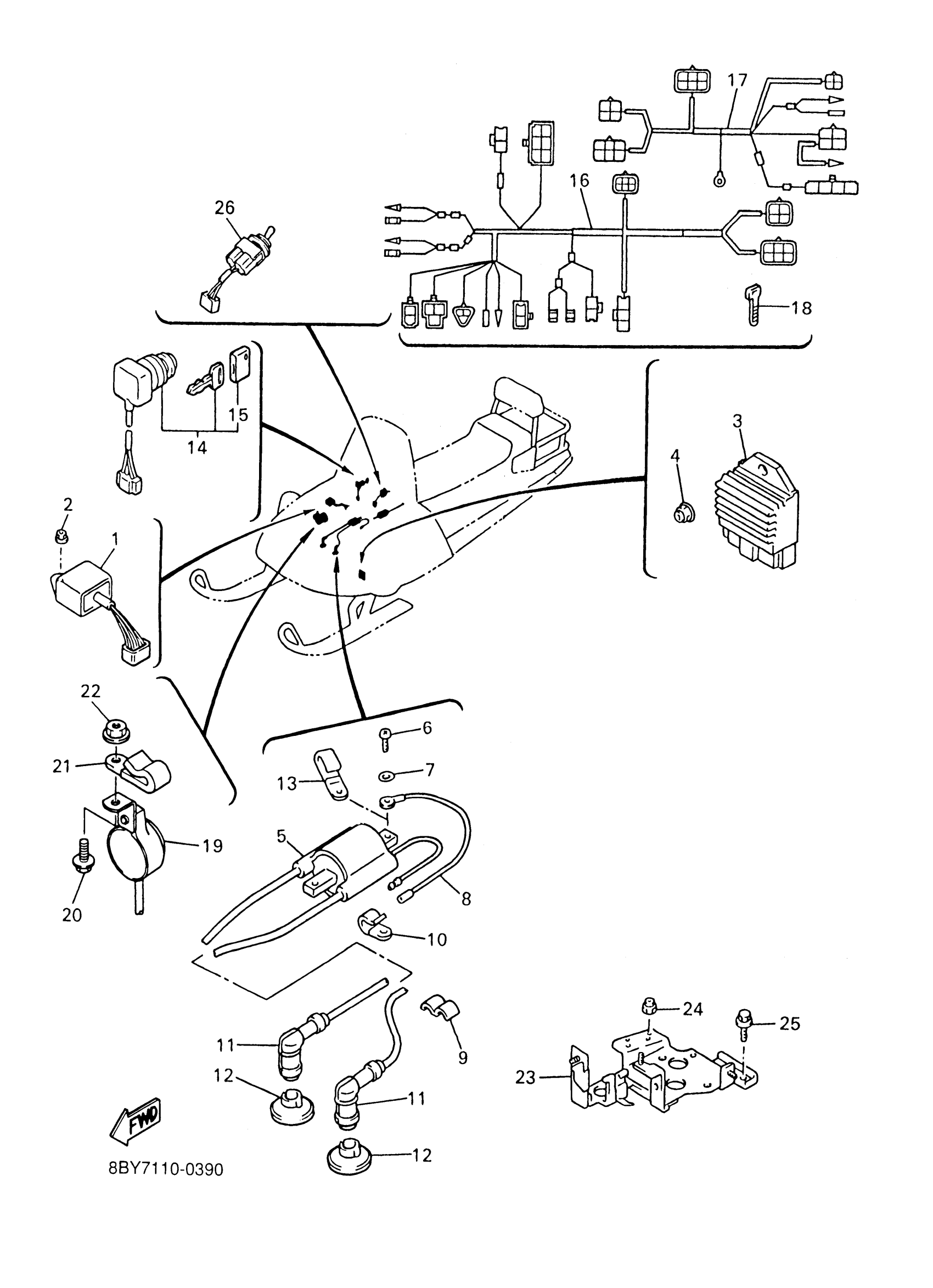

Find the part on the Electrical 1 diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha ET410TRF 8BY8 Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

8BY-85540-00-00

1
Out of stock

2

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

1

$91.88

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

CLAMP

90465-08028-00

1

$4.62

In stock

11

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

12

SEAL

8G5-82372-00-00

1

$4.66

In stock

13

CLAMP(51Y)

90465-08277-00

—
Out of stock

14

MAIN SWITCH ASSY

8K1-82510-21-00

—
Out of stock

15

CAP, KEY

526-82579-00-00

1

$6.72

In stock

16

WIRE HARNESS ASSY

8BY-82590-00-00

1
Out of stock

17

WIRE HARNESS ASSY 2

8BY-82580-00-00

1
Out of stock

18

BAND

341-26397-01-00

1
Out of stock

19

BUZZER

87L-83383-01-00

—

$84.89

In stock

20

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

21

CLAMP(4MX)

90465-06376-00

—

$7.08

In stock

22

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

23

BRACKET, BATTERY

89X-2199G-01-00

1
Out of stock

24

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

25

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

26

SWITCH

8JD-82917-00-00

—
Out of stock
