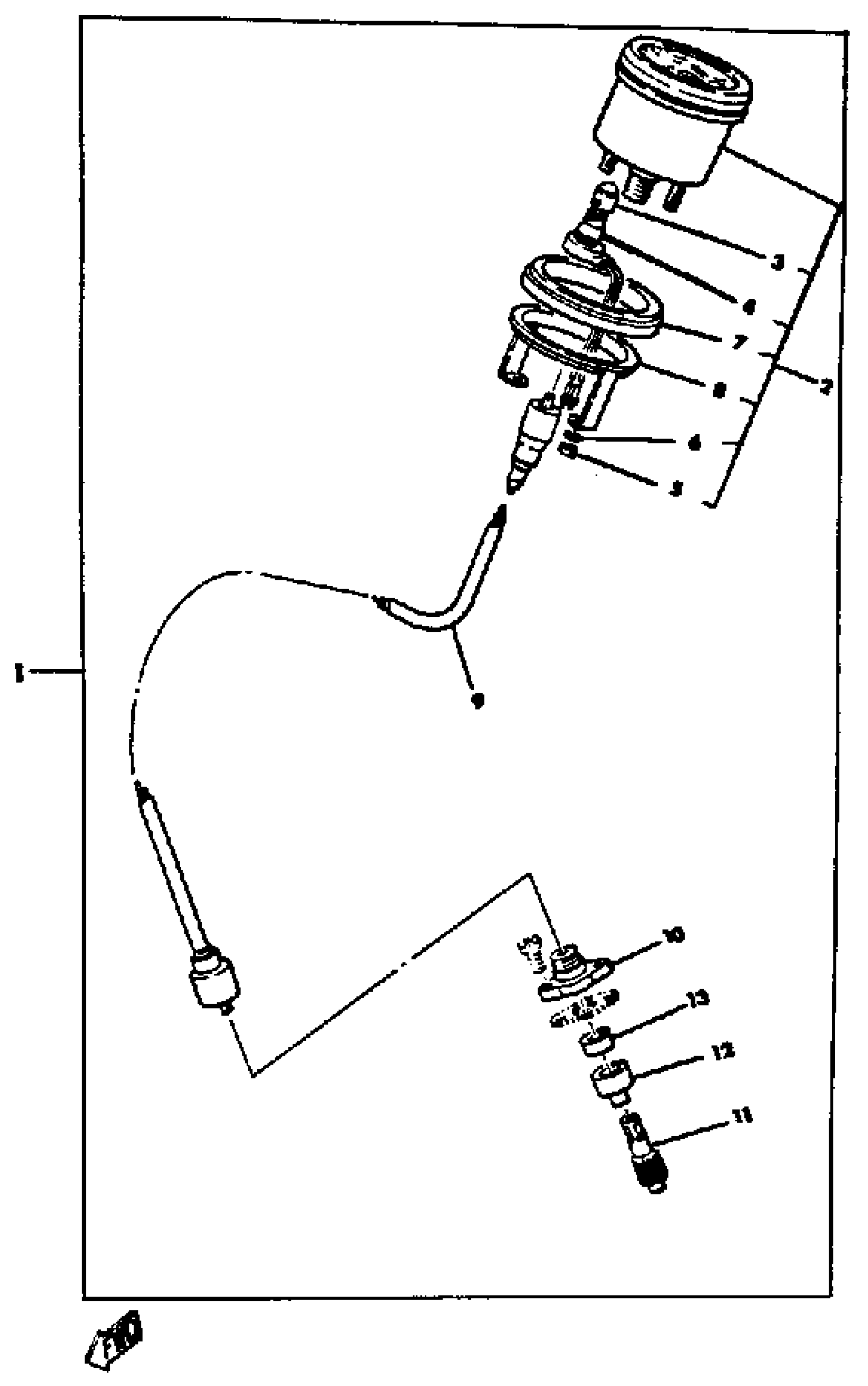

1982 Yamaha ET340TF Tachometer KIT ET340TF - TG Diagram

← All diagrams

Find the part on the Tachometer KIT ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha ET340TF Tachometer KIT ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHET300/340BCDED

(ACC-01200-71-00)

1
Out of stock

2

TACHOMETER ASSEMBLY

8R5-83540-00-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(861-83536-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

8

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

9

TACHOMETER CABLE

8G6-83560-01-00

1
Out of stock

10

CAP, HOUSING

821-17819-00-00

1
Out of stock

11

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

12

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

13

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

13

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock
