1982 Yamaha ET340TF Speedometer - KIT ET340TG Diagram

← All diagrams

Find the part on the Speedometer - KIT ET340TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

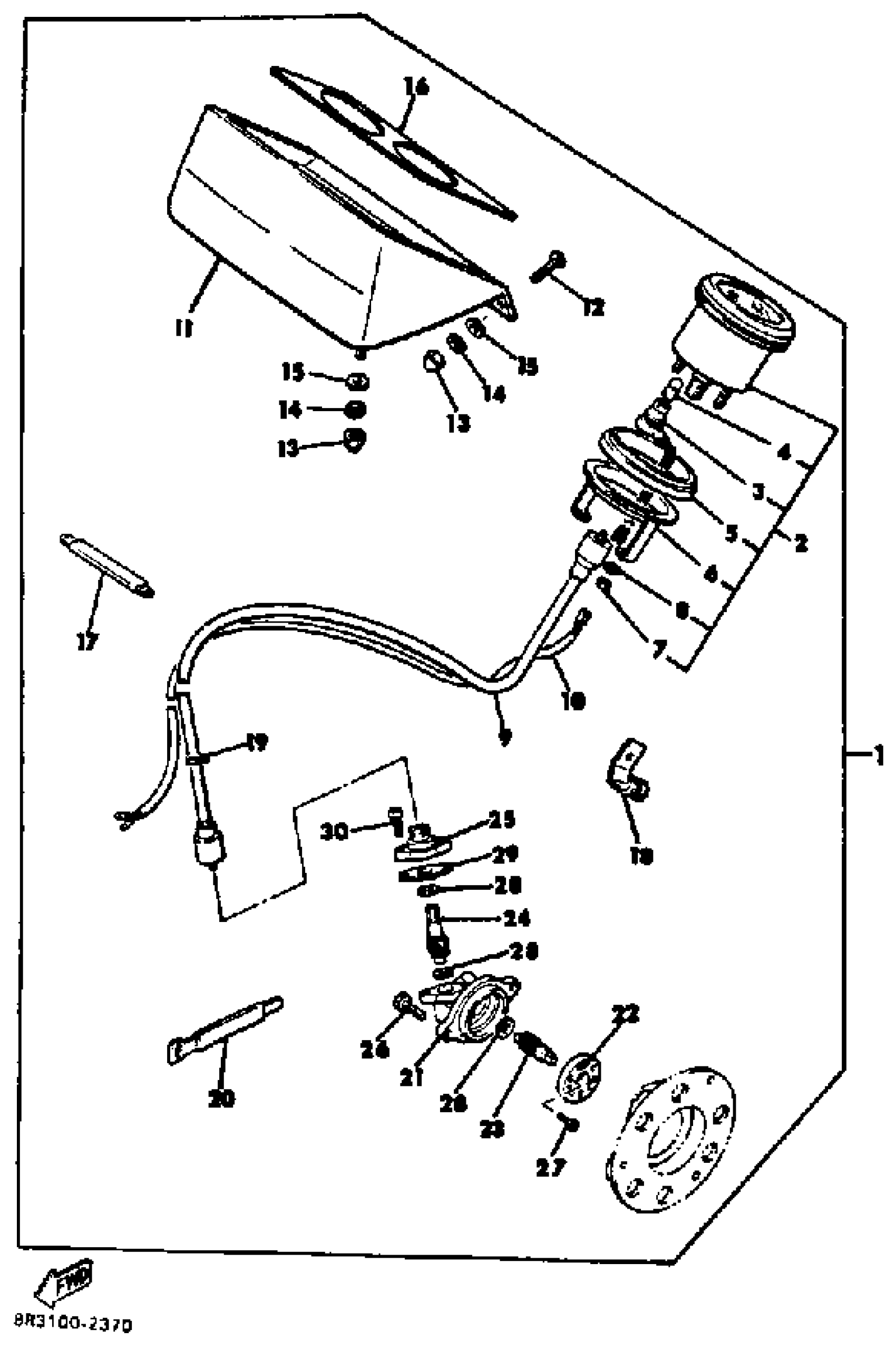

1982 Yamaha ET340TF Speedometer - KIT ET340TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOET300/340BCD

(ACC-01200-68-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

8G8-83510-21-00

1
Out of stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

5

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

6

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

10

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

11

PANEL,METER

8G5-83611-00-00

—
Out of stock

12

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

COVER, METER PANEL

8G6-83612-00-00

1
Out of stock

17

CLAMP

90465-05128-00

1
Out of stock

18

CLAMP

90465-08028-00

1

$4.62

In stock

19

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

20

BAND

341-26397-01-00

1
Out of stock

21

HOUSING

8E6-47711-10-00

1
Out of stock

22

JOURNAL

853-47712-10-00

1
Out of stock

23

GEAR, DRIVE

810-47731-11-00

1
Out of stock

24

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

25

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

28

SHIM

810-47717-10-00

1
Out of stock

29

GASKET

810-47727-11-00

1
Out of stock

30

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock
