1982 Yamaha ET340TF Instrument Panel ET340TF - TG Diagram

← All diagrams

Find the part on the Instrument Panel ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

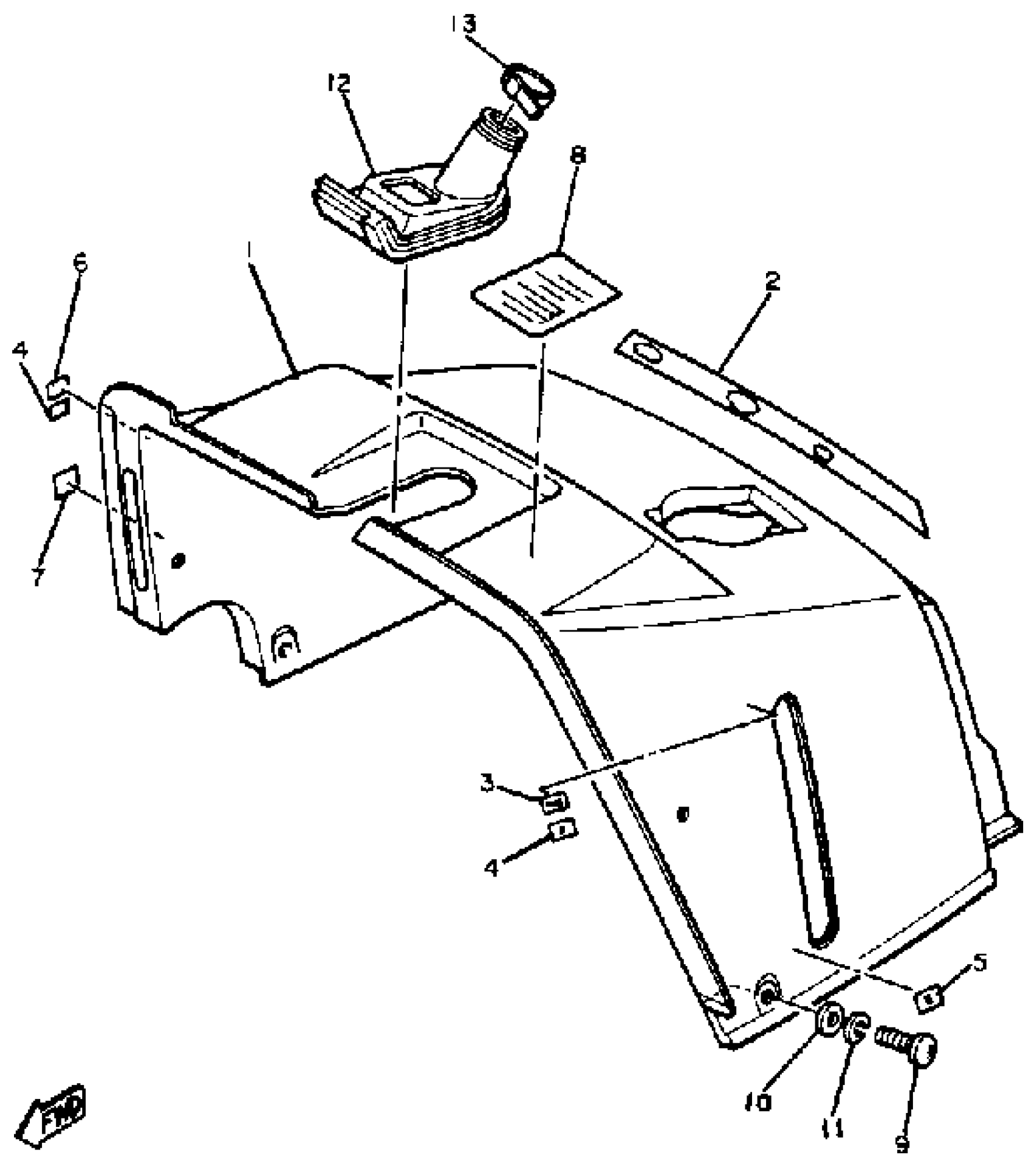

1982 Yamaha ET340TF Instrument Panel ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

8G8-77711-00-00

1
Out of stock

2

INDICATOR 1

8J6-77741-00-00

1
Out of stock

3

INDICATOR 3

8A1-77743-00-00

1
Out of stock

4

INDICATOR 4

878-77744-00-00

1
Out of stock

5

INDICATOR 5

878-77745-00-00

1
Out of stock

6

INDICATOR 2

8G8-77742-00-00

1
Out of stock

7

INDICATOR 2

8E7-77742-00-00

1
Out of stock

8

LABEL, WARNING 7

8G8-77767-01-00

1
Out of stock

8

LABEL, WARNING 7

8N5-77767-00-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

GROMMET

(8G8-77746-00-00)

1
Out of stock

13

BAND

341-26397-01-00

1
Out of stock
