1980 Yamaha ET340ED Starting Motor Diagram

← All diagrams

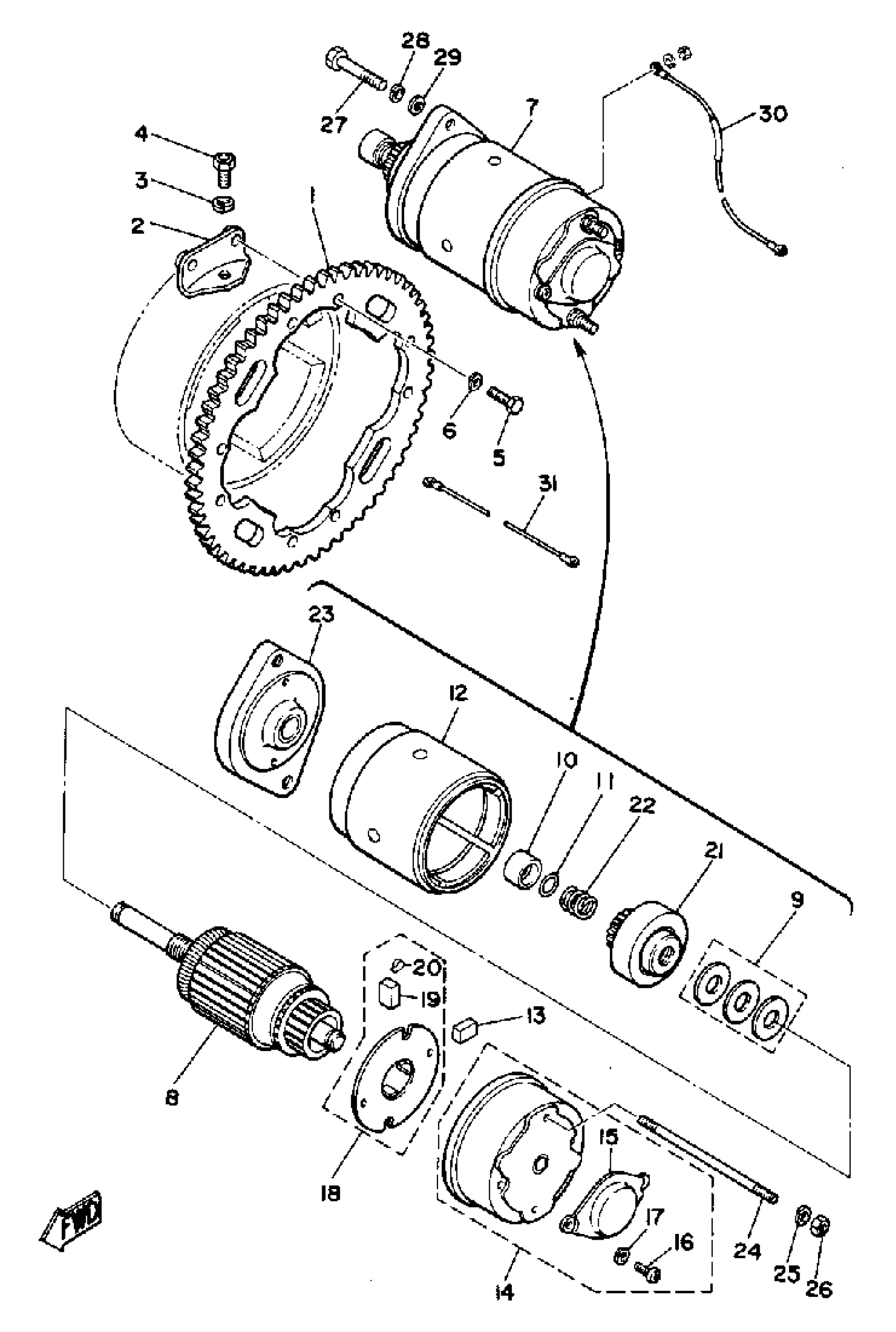

Find the part on the Starting Motor diagram for your 1980 Yamaha ET340ED, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha ET340ED Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

8J4-81891-01-00

1
Out of stock

2

STAY, RING GEAR

8J4-81895-01-00

1
Out of stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

STARTING MOTOR ASSEMBLY

8J9-81800-10-00

1
Out of stock

8

ARMATURE ASSEMBLY

(8J9-81850-10-00)

1
Out of stock

9

WASHER KIT

(689-81809-10-00)

1
Out of stock

10

STOPPER, PINION

(8J9-81859-10-00)

1
Out of stock

11

. RING

663-81834-10-00

1

$15.37

In stock

12

STATOR ASSEMBLY

(8J9-81810-10-00)

1
Out of stock

13

. BRUSH 1

8J9-81811-10-00

1
Out of stock

14

REAR BRACKET ASSEMBLY

(8J9-81820-10-00)

1
Out of stock

15

.. COVER

8J4-81842-10-00

1
Out of stock

16

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

BRUSH HOLDER ASSEMBLY

(8J9-81840-10-00)

1
Out of stock

19

BRUSH 2

8J9-81812-10-00

—

$4.68

In stock

20

.. SPRING, BRUSH

8J9-81813-10-00

1
Out of stock

21

CLUTCH, OVER RUN

(8J4-81832-10-00)

1
Out of stock

22

SPRING, RETURN

(8J9-81858-10-00)

1
Out of stock

23

FRONT BRACKET ASSEMBLY

(8J9-81830-10-00)

1
Out of stock

24

BOLT

(8J9-81826-10-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

BOLT

97014-08040-00

—

$5.26

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

WIRE, LEAD

8J4-82117-01-00

1
Out of stock

31

WIRE, MINUS LEAD

8J4-82116-01-00

1
Out of stock
