1980 Yamaha ET340ED Meter Diagram

← All diagrams

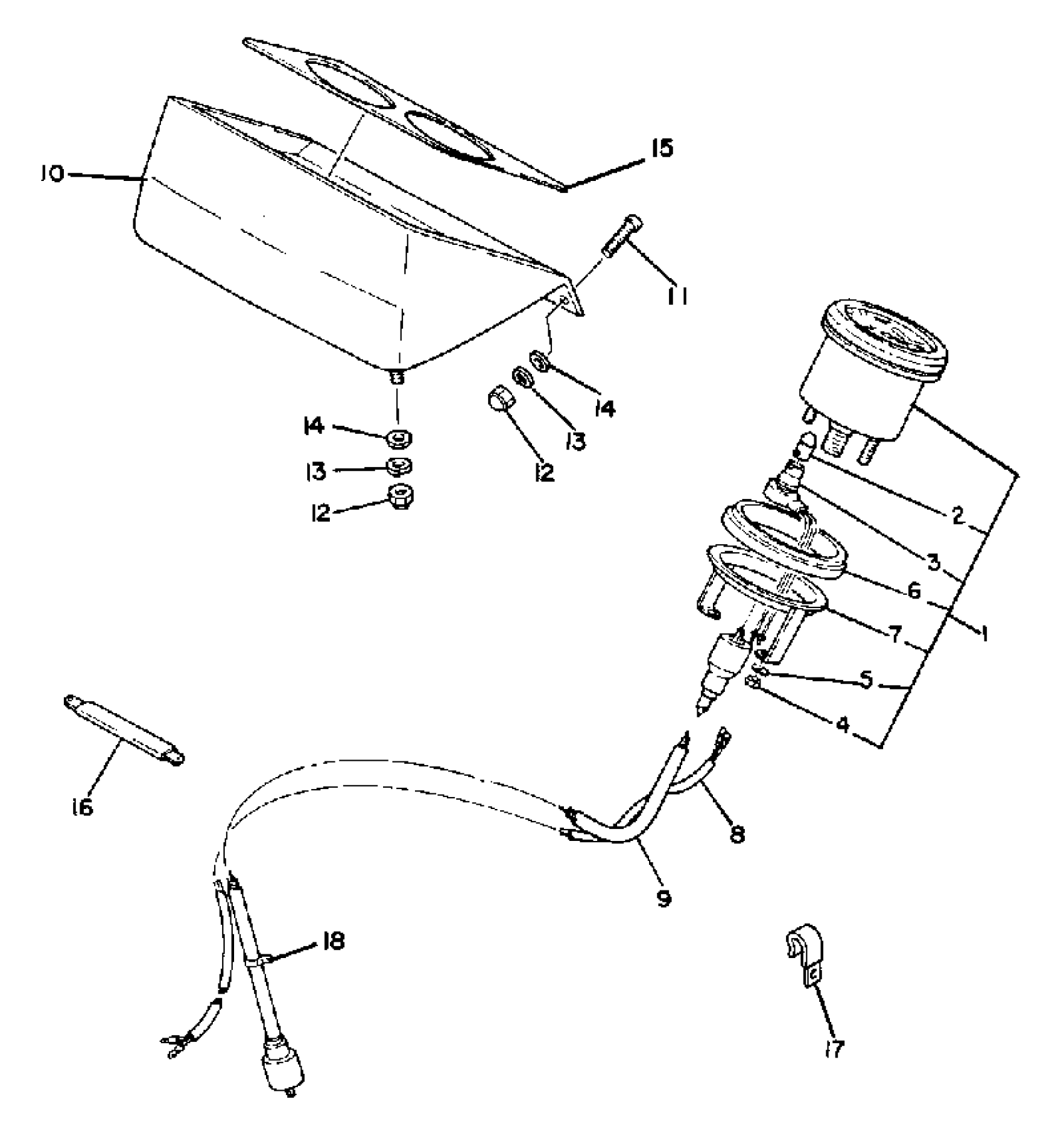

Find the part on the Meter diagram for your 1980 Yamaha ET340ED, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha ET340ED Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

8G6-83510-21-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

9

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

10

PANEL,METER

8G5-83611-00-00

—
Out of stock

11

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

COVER, METER PANEL

8G6-83612-00-00

1
Out of stock

16

CLAMP

90465-05128-00

1
Out of stock

17

CLAMP

90465-08028-00

1

$4.62

In stock

18

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
