1979 Yamaha ET340EC Tachometer Unit Diagram

← All diagrams

Find the part on the Tachometer Unit diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

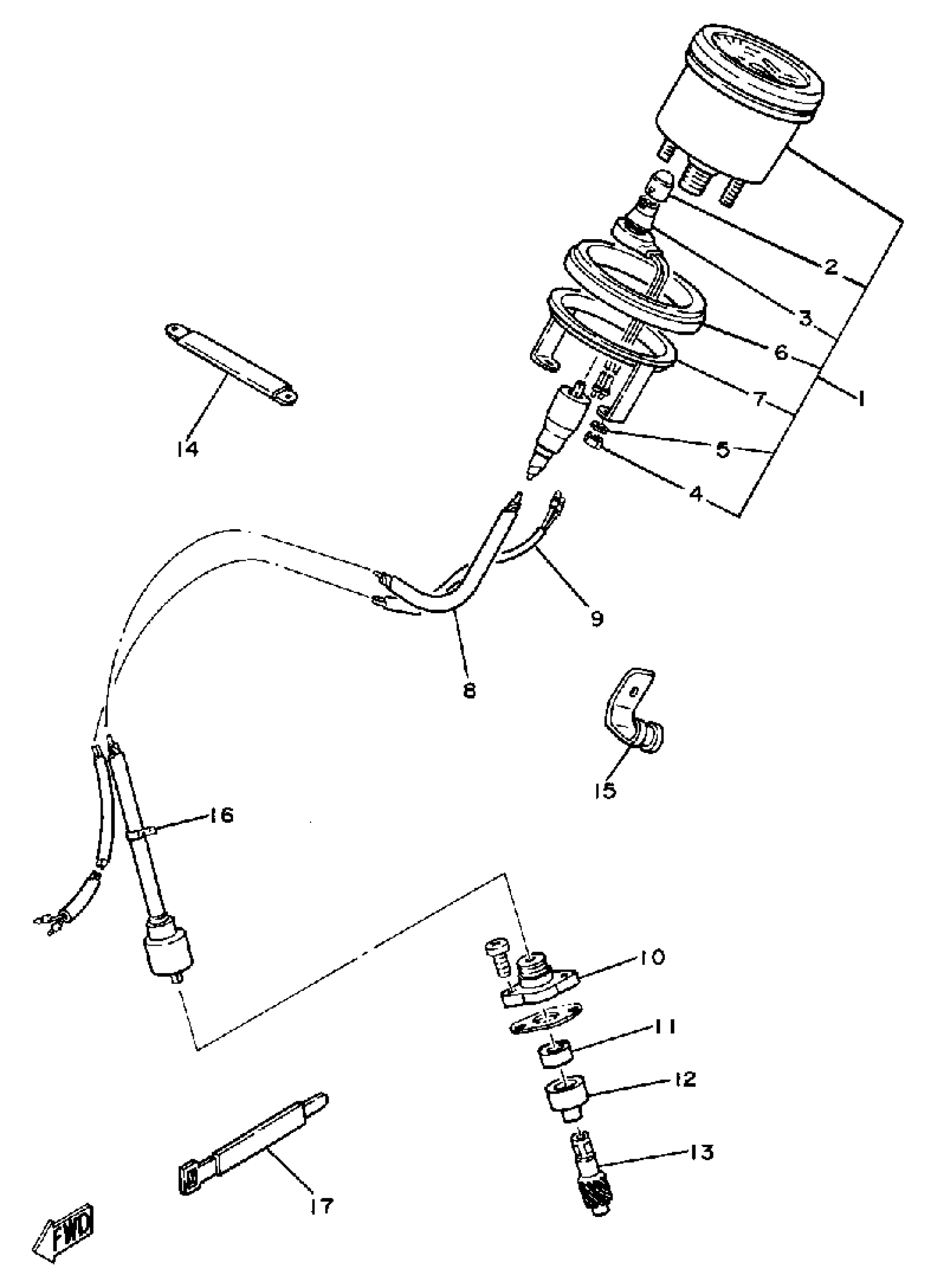

1979 Yamaha ET340EC Tachometer Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

8R5-83540-00-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

TACHOMETER CABLE

8G6-83560-01-00

1
Out of stock

9

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

10

CAP, HOUSING

821-17819-00-00

1
Out of stock

11

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

12

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

13

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

14

CLAMP

90465-05128-00

1
Out of stock

15

CLAMP

90465-06013-00

1
Out of stock

16

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

17

BAND

341-26397-01-00

1
Out of stock
