1979 Yamaha ET250C Intake ET250D\E Diagram

← All diagrams

Find the part on the Intake ET250D\E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

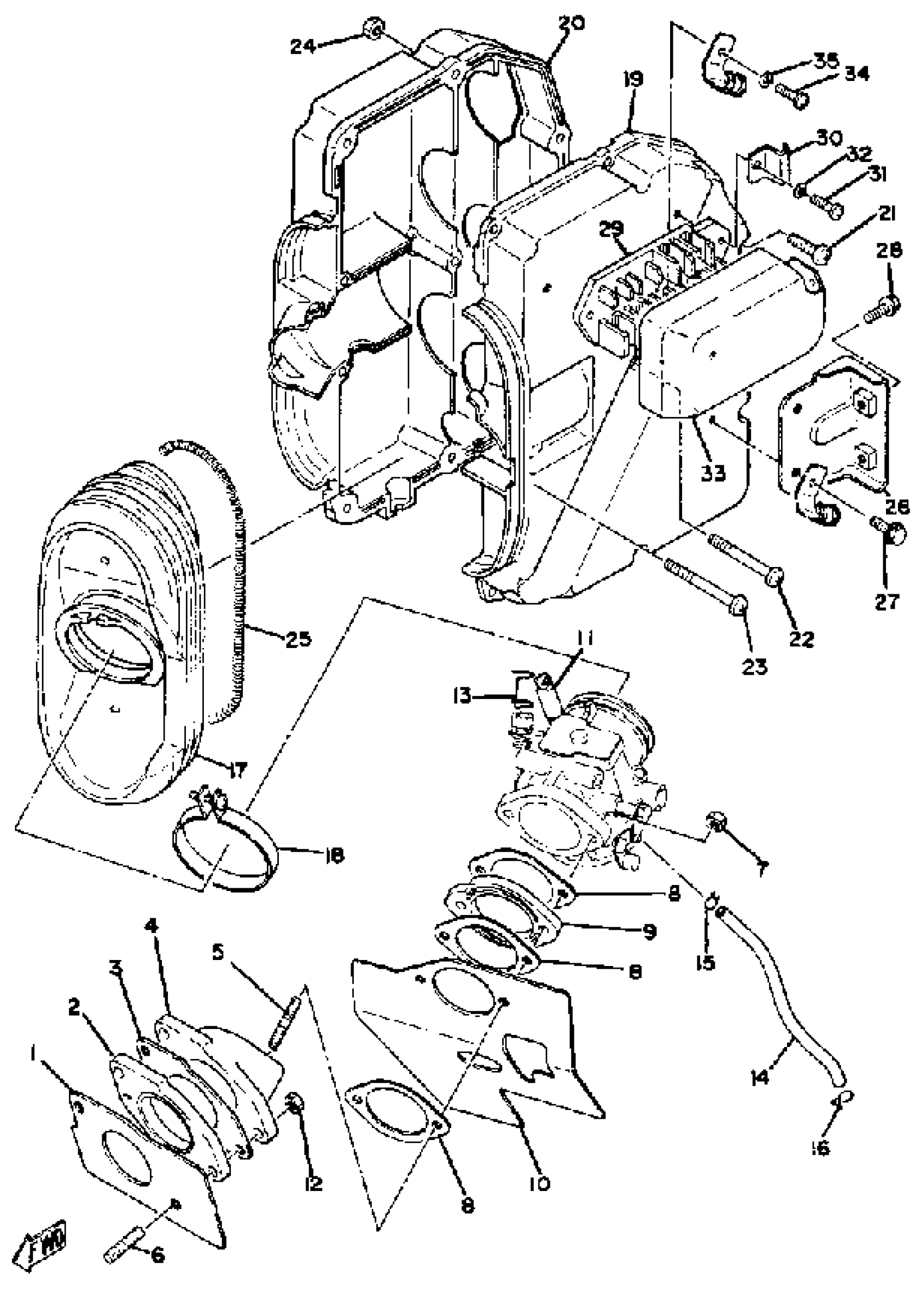

1979 Yamaha ET250C Intake ET250D\E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET MANIFOLD

8G5-13556-09-00

1
Out of stock

2

JOINT, CARBURETOR

8G5-13585-00-00

1
Out of stock

3

GASKET

8G5-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

8G5-13565-00-00

1
Out of stock

5

BOLT, STUD

90116-08266-00

1
Out of stock

6

BOLT, STUD

90116-08039-00

1
Out of stock

7

. NUT

95380-08700-00

1

$3.07

In stock

8

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

9

MANIFOLD, INTAKE

8F3-13555-00-00

1
Out of stock

10

GASKET

8F3-13567-00-00

1
Out of stock

11

BOOT

8J5-26352-00-00

1
Out of stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

CLAMP

90465-10033-00

1
Out of stock

14

HOSE

(90445-10138-00)

1
Out of stock

15

CLIP, SCISSOR

(90467-09036-00)

1
Out of stock

16

CLIP

90467-090A2-00

—

$2.51

In stock

17

JOINT, AIR CLNR 1

8G5-14453-00-00

1
Out of stock

18

HOSE CLAMP ASSY

90450-64004-00

—

$12.00

In stock

19

SILENCER, INTAKE 1

8F3-14431-00-00

1
Out of stock

20

SILENCER, INTAKE 2

8F3-14441-00-00

1
Out of stock

21

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

22

SCREW, PAN HEAD

98580-05545-00

—

$5.86

In stock

23

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

24

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

25

SPRING, TENSION

90506-06153-00

1
Out of stock

26

STAY 2

(8F3-14499-00-00)

1
Out of stock

27

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

28

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

29

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

30

HOOK, BANK

(8G5-2175R-00-00)

1
Out of stock

31

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

COVER, FLANGE

8G5-2175N-00-00

1
Out of stock

34

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
