1979 Yamaha ET250C Intake ET250C Diagram

← All diagrams

Find the part on the Intake ET250C diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

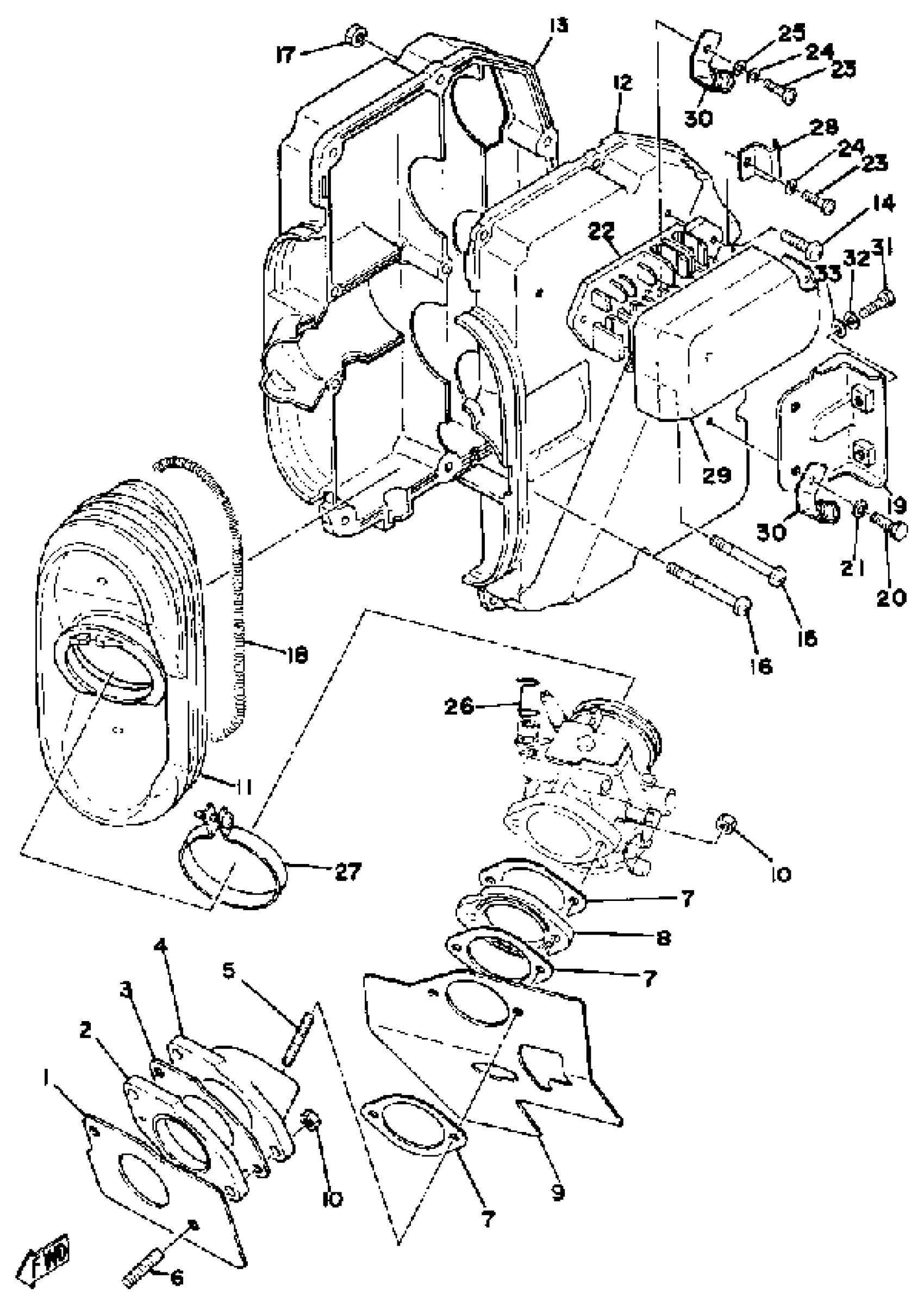

1979 Yamaha ET250C Intake ET250C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET MANIFOLD

8G5-13556-09-00

1
Out of stock

2

JOINT, CARBURETOR

8G5-13585-00-00

1
Out of stock

3

GASKET

8G5-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

8G5-13565-00-00

1
Out of stock

5

BOLT, STUD

90116-08266-00

1
Out of stock

6

BOLT, STUD

90116-08039-00

1
Out of stock

7

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

8

MANIFOLD, INTAKE

8F3-13555-00-00

1
Out of stock

9

GASKET

8F3-13567-00-00

1
Out of stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

JOINT, AIR CLNR 1

8G5-14453-00-00

1
Out of stock

12

SILENCER, INTAKE 1

8F3-14431-00-00

1
Out of stock

13

SILENCER, INTAKE 2

8F3-14441-00-00

1
Out of stock

14

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

15

SCREW, PAN HEAD

98580-05545-00

1

$5.86

In stock

16

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

17

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

18

SPRING, TENSION

90506-06153-00

1
Out of stock

19

STAY 2

(8F3-14499-00-00)

1
Out of stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

23

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

CLAMP

90465-10033-00

1
Out of stock

27

HOSE CLAMP ASSY

90450-64004-00

—

$12.00

In stock

28

HOOK, BANK

(8G5-2175R-00-00)

1
Out of stock

29

COVER, FLANGE

8G5-2175N-00-00

1
Out of stock

30

CLAMP

90465-06013-00

1
Out of stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
