1979 Yamaha ET250C Fuel Return KIT ET250C - E Diagram

← All diagrams

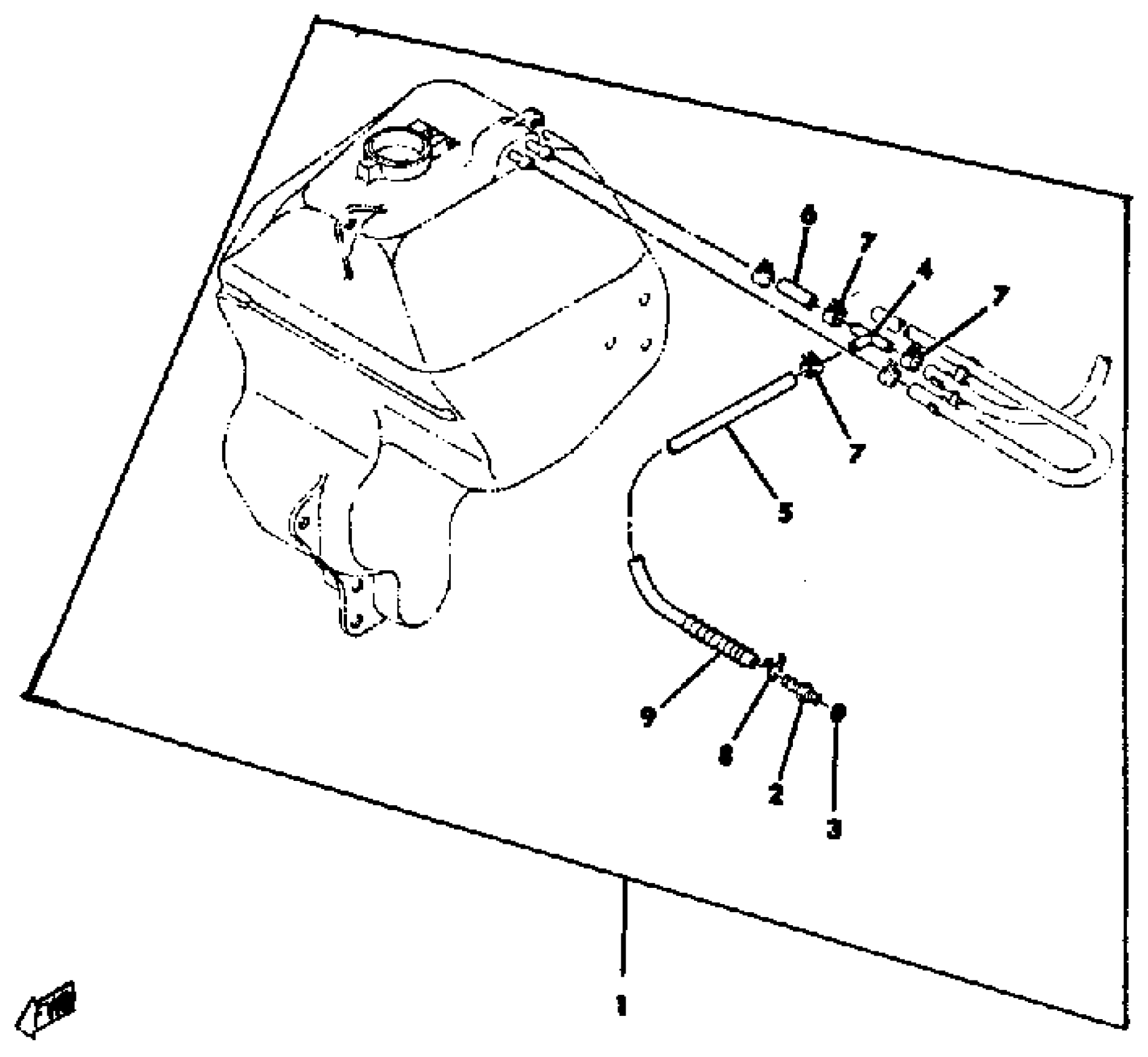

Find the part on the Fuel Return KIT ET250C - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Fuel Return KIT ET250C - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL RETURN KIT (SILVER 7)

(8G5-00000-10-00)

1
Out of stock

2

PIPE ADAPTOR ASSEMBLY

8G5-14350-00-00

1
Out of stock

3

. WASHER

810-14597-00-00

1
Out of stock

4

PIPE, JOINT

867-24461-00-00

1
Out of stock

5

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

1

$12.58

In stock

6

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

1

$8.80

In stock

7

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

8

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

9

SPRING, COMPRESSION(7MX)

90501-084J0-00

1

$5.86

In stock
