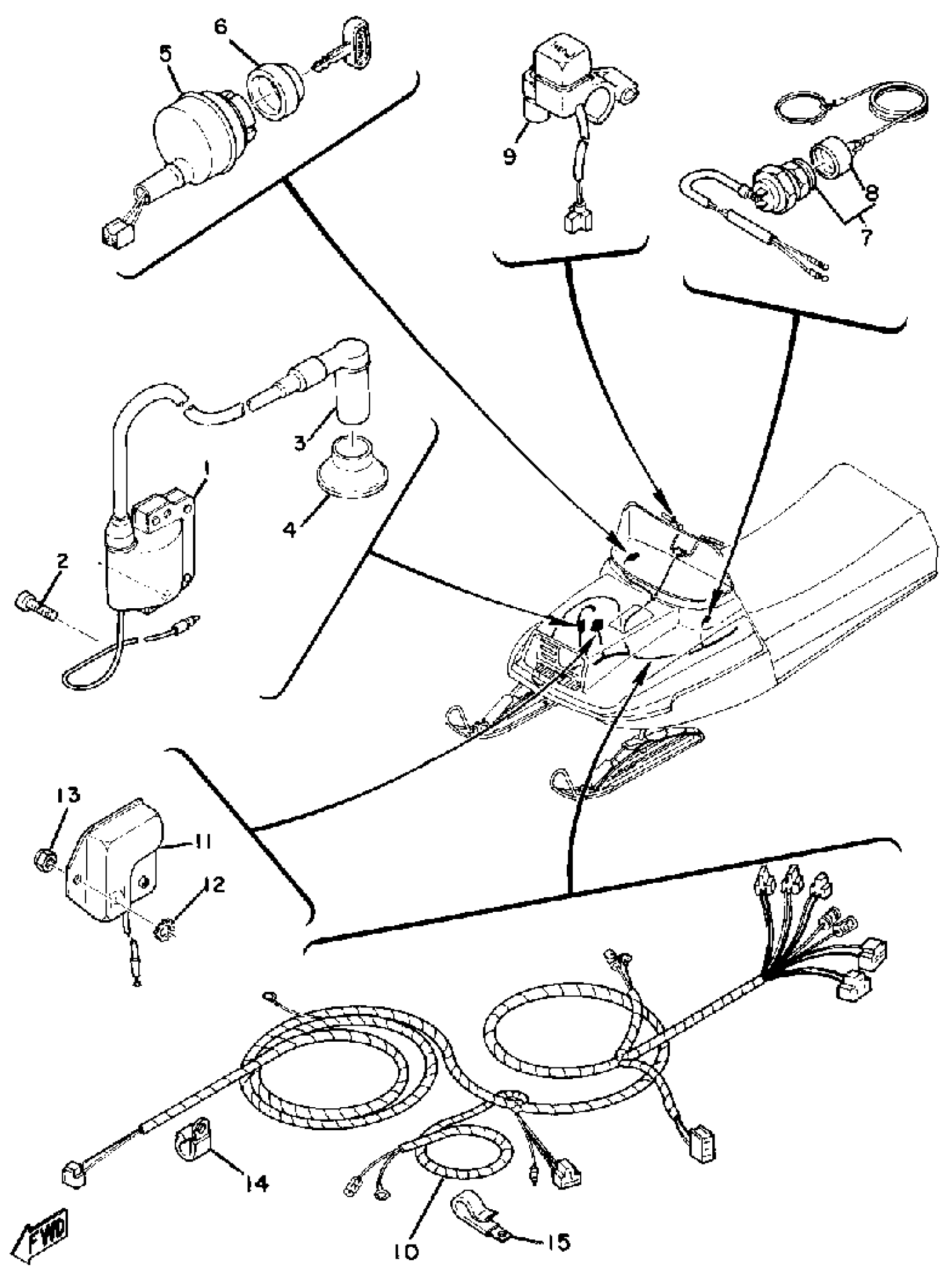

Yamaha ET250B 1978 ELECTRICAL Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

8F3-82310-11-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

3

PLUG CAP ASSEMBLY

8A5-82370-20-00

Unavailable

4

SEAL

8G5-82372-00-00

$4.34

5

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

Unavailable

6

COLLAR, MAIN SWITCH

806-82516-00-00

Unavailable

7

STOP SWITCH ASSY

8H8-82550-01-00

$81.86

8

CAP, SWITCH

8H8-82552-09-00

$41.41

9

SWITCH, HANDLE 1

8E3-83976-02-00

$92.27

10

WIRE HARNESS ASSEMBLY

8G5-82590-20-00

Unavailable

11

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

12

WASHER, TOOTH

92901-06400-00

Unavailable

13

NUT, NYLON

95707-06300-00

$2.98

14

CLAMP

90465-08028-00

$4.31

15

CLAMP(4MX)

90465-06376-00

$6.59
