1977 Yamaha ET250A Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

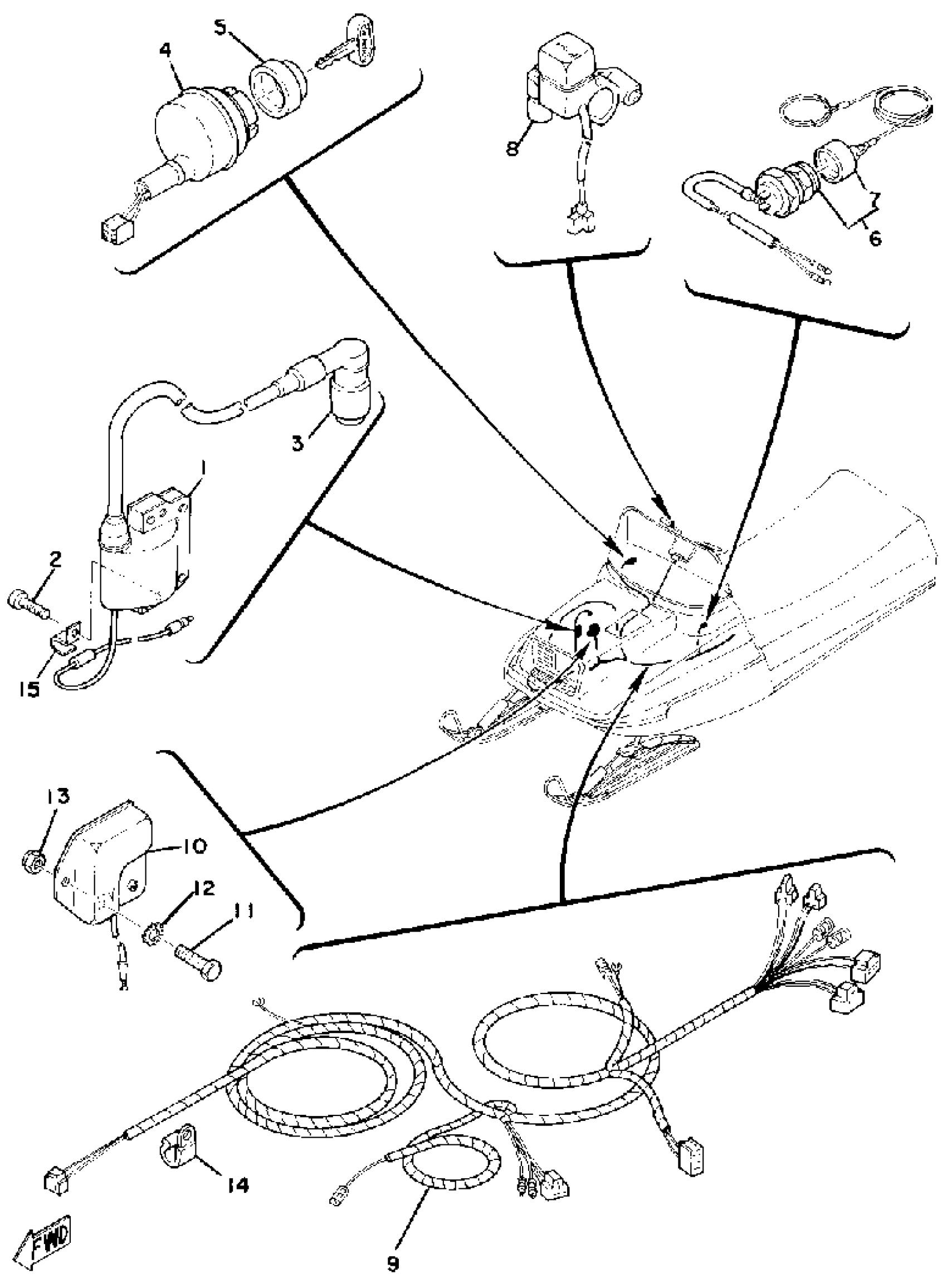

1977 Yamaha ET250A Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

8F3-82310-11-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

PLUG CAP ASSEMBLY

899-82370-20-00

1
Out of stock

4

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

1
Out of stock

5

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

6

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

7

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

8

SWITCH, HANDLE 1

8E3-83976-02-00

1

$93.69

In stock

9

WIRE HARNESS ASSEMBLY

(8F3-82590-20-00)

1
Out of stock

10

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

11

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

12

WASHER, TOOTH

92901-06400-00

1
Out of stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

CLAMP

90465-08028-00

1

$4.62

In stock

15

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
