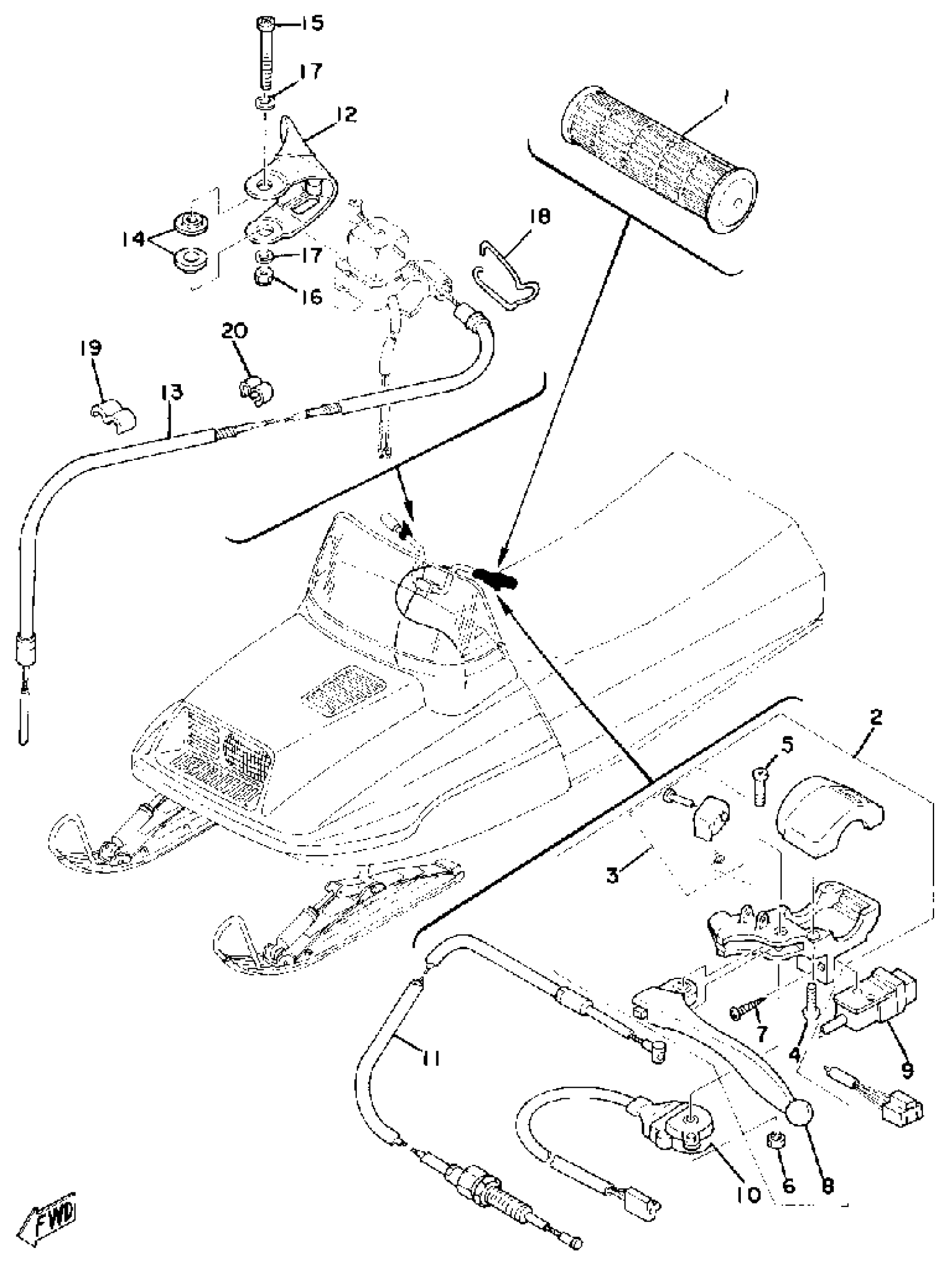

Find the part on the Grip - Wiring diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Grip - Wiring Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

1
Out of stock

3

LEVER LOCK ASSY

8E3-W8393-01-00

1
Out of stock

4

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

6

NUT, NYLON

95707-05300-00

1

$2.74

In stock

7

. SCREW, TAPPING

97780-30312-00

1
Out of stock

8

LEVER L

803-83912-00-38

1
Out of stock

9

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

10

STOP SWITCH ASSY

8R4-82530-00-00

1

$27.65

In stock

11

CABLE, BRAKE

8F3-26340-01-00

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK

873-42138-01-00

1
Out of stock

12

LEVER, THROTTLE

8G8-42138-00-00

1
Out of stock

12

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

12

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

12

THROTTLE LEVER

99999-01028-00

1
Out of stock

13

CABLE, THROTTLE 1

8W6-26311-00-00

—
Out of stock

14

C0LLAR

90387-062M9-00

—
Out of stock

15

SCREW PAN HEAD

98580-06545-00

—

$5.78

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

CLIP (821-26391-00)

90468-10017-00

1
Out of stock

19

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

20

CLIP (867)

90468-15020-00

—
Out of stock
