1977 Yamaha ET250A Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

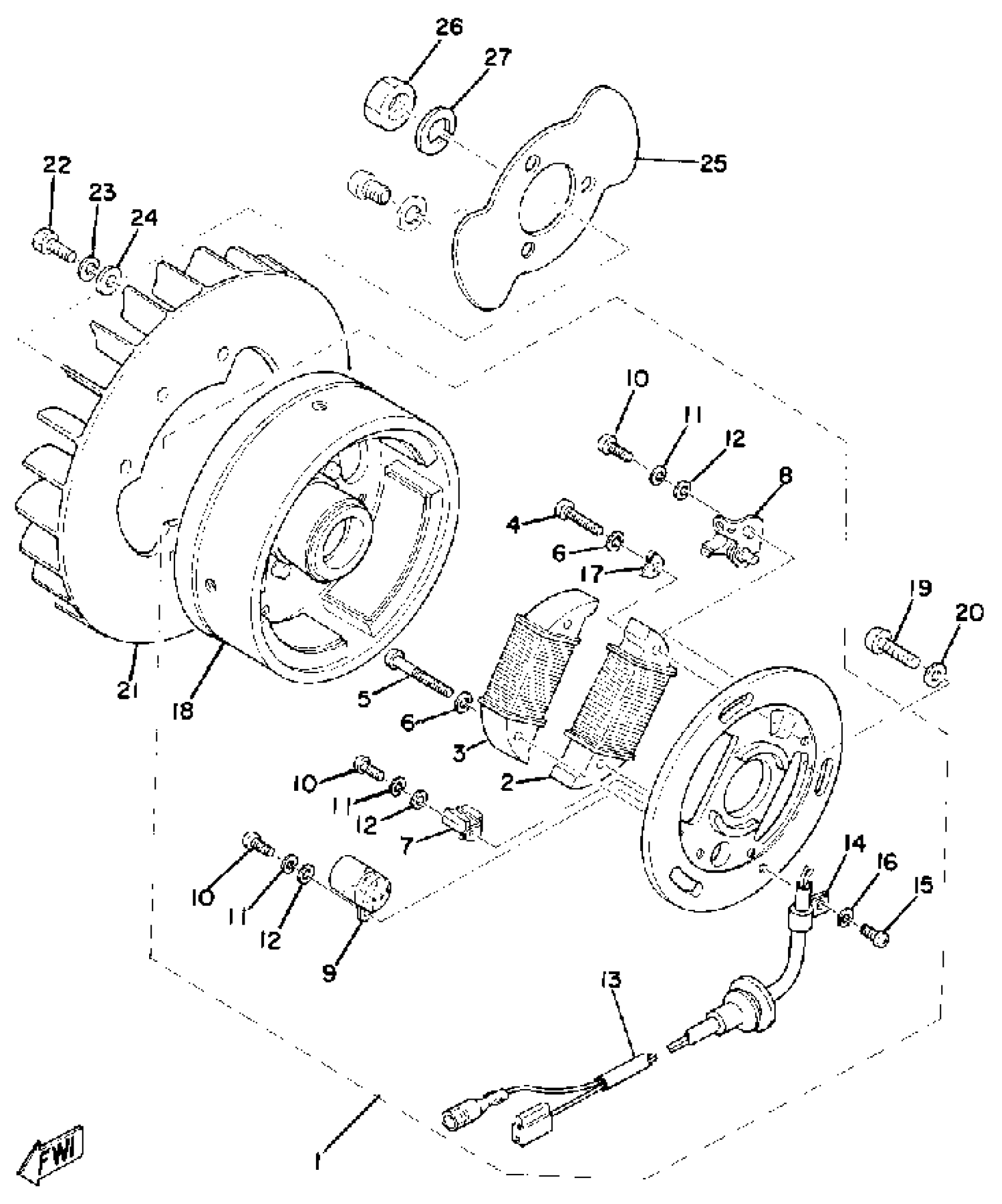

1977 Yamaha ET250A Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(8F3-81300-10-00)

1
Out of stock

2

. COIL, SOURCE

8F3-81312-10-00

1
Out of stock

3

COIL, LIGHTING 1

(8F3-81313-10-00)

1
Out of stock

4

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

. LUBRICATOR

207-81331-10-00

1
Out of stock

8

CONTACT BREAKER ASSY

650-81321-10-00

1

$33.54

In stock

9

. CONDENSER 2

207-81326-90-00

1
Out of stock

10

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

11

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

LEAD WIRE ASSEMBLY

(8F3-85515-10-00)

1
Out of stock

14

. CLAMP

109-81328-11-00

1
Out of stock

15

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

PLATE, TIMING

(434-81332-10-00)

1
Out of stock

18

ROTOR ASSEMBLY

(8F3-81350-10-00)

1
Out of stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

FAN

(8G5-12611-00-00)

1
Out of stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

25

COVER, HOLE

(881-81362-00-00)

1
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

. LUBRICATOR

207-81331-10-00

1
Out of stock

27

CONTACT BREAKER ASSY

650-81321-10-00

1

$33.54

In stock

27

ELECTRICAL REPAIR

(8F3-80000-10-00)

1
Out of stock

27

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

27

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock
