2010 Kawasaki Er-6n Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 2010 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

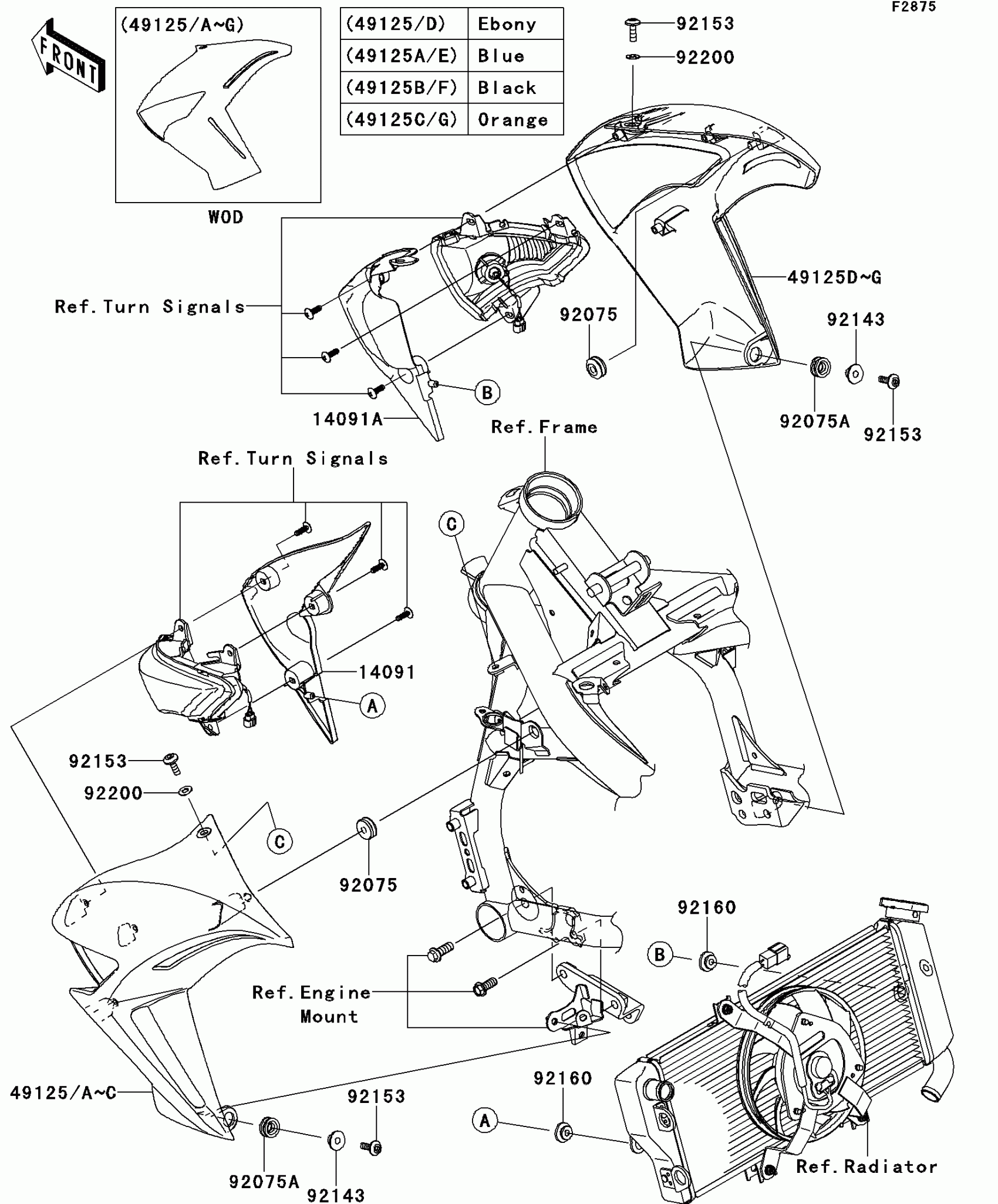

2010 Kawasaki Er-6n Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,SHROUD,LH

14091-1590

1

$34.79

In stock

14091A

COVER,SHROUD,RH

14091-1591

1

$34.30

In stock

49125

SHROUD,LH,EBONY

49125-0033-H8

1
Out of stock

49125B

SHROUD,LH,M.F.S.BLACK

49125-0033-15V

1

$157.34

In stock

49125C

SHROUD,LH,P.B.ORANGE

49125-0033-848

1
Out of stock

49125D

SHROUD,RH,EBONY

49125-0034-H8

1
Out of stock

49125F

SHROUD,RH,M.F.S.BLACK

49125-0034-15V

1

$158.07

In stock

49125G

SHROUD,RH,P.B.ORANGE

49125-0034-848

1
Out of stock

92075

DAMPER

92075-1067

1

$3.72

In stock

92075A

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR

92143-1962

1

$4.42

In stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock
