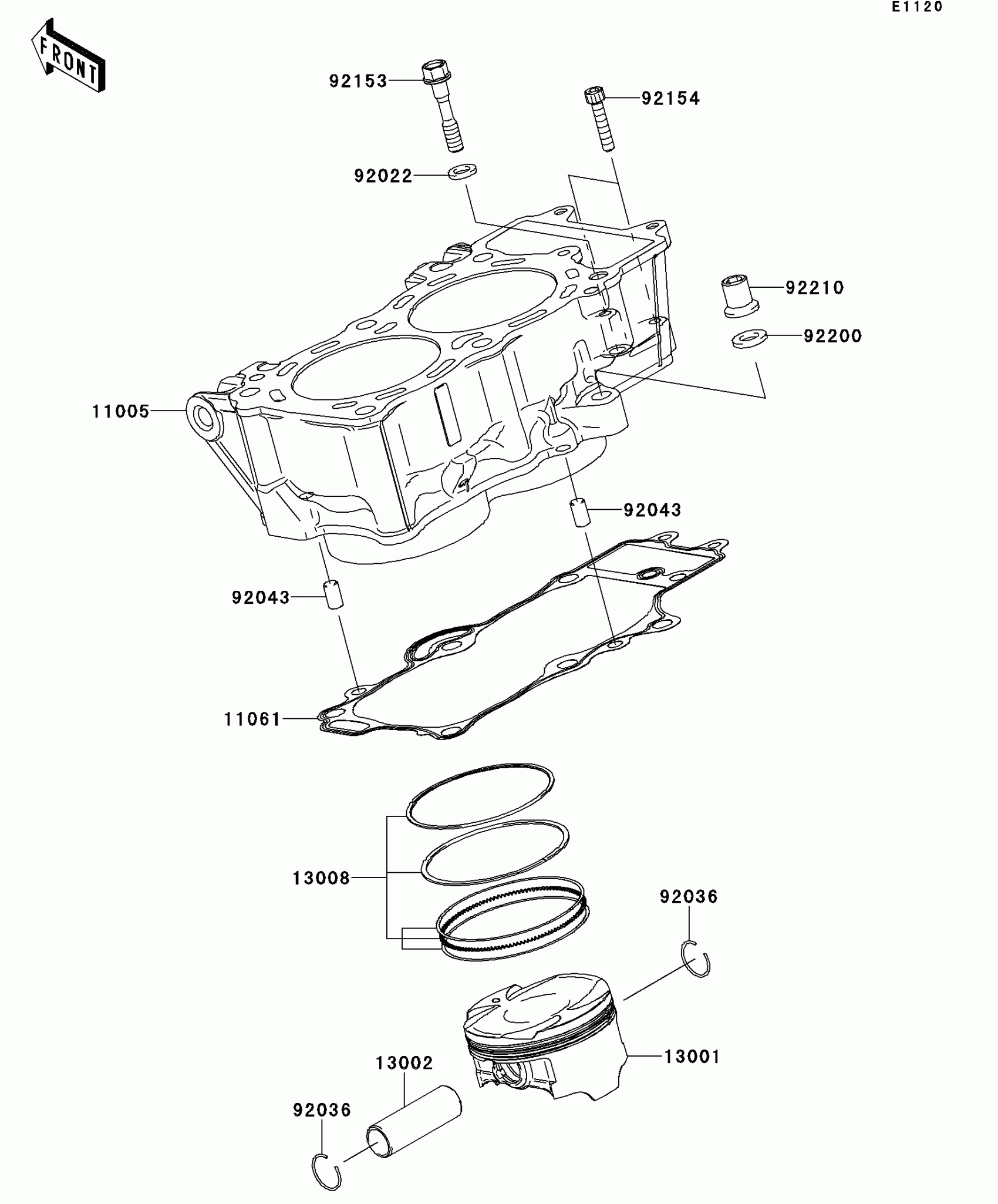

Find the part on the Cylinder/piston diagram for your 2010 Kawasaki ER-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

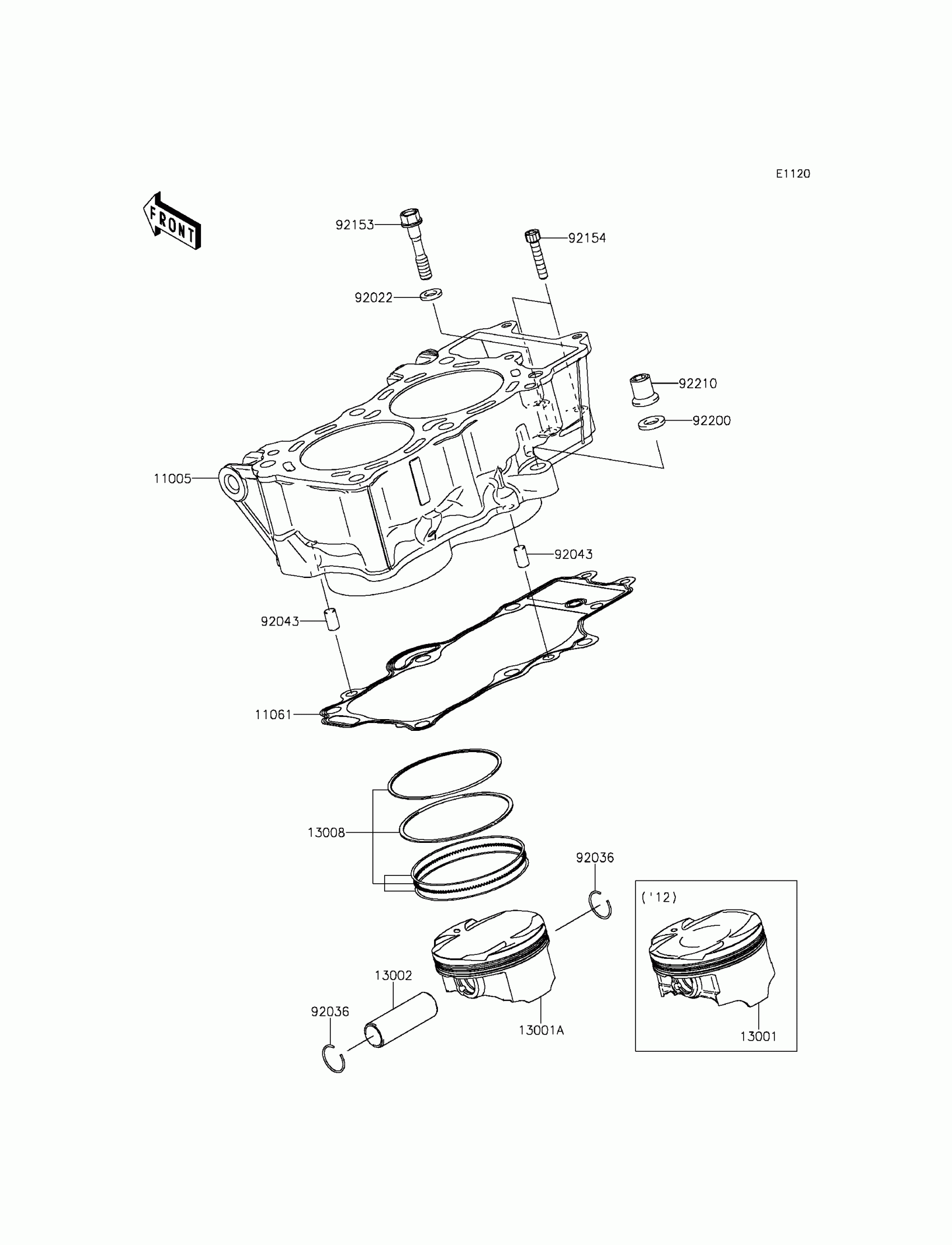

2010 Kawasaki ER-6n Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0114

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-0171

1
Out of stock

13001

PISTON-ENGINE

13001-0087

1
Out of stock

13002

PIN-PISTON

13002-0007

1
Out of stock

13008

RING-SET-PISTON

13008-1196

1
Out of stock

92022

WASHER,9X15.5X2

92022-1401

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

92043

PIN,8X14

92043-1567

1
Out of stock

92153

BOLT,8X43

92153-1011

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0116

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock

92210

NUT

92210-0223

1
Out of stock
