2010 Kawasaki Er-6n Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2010 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

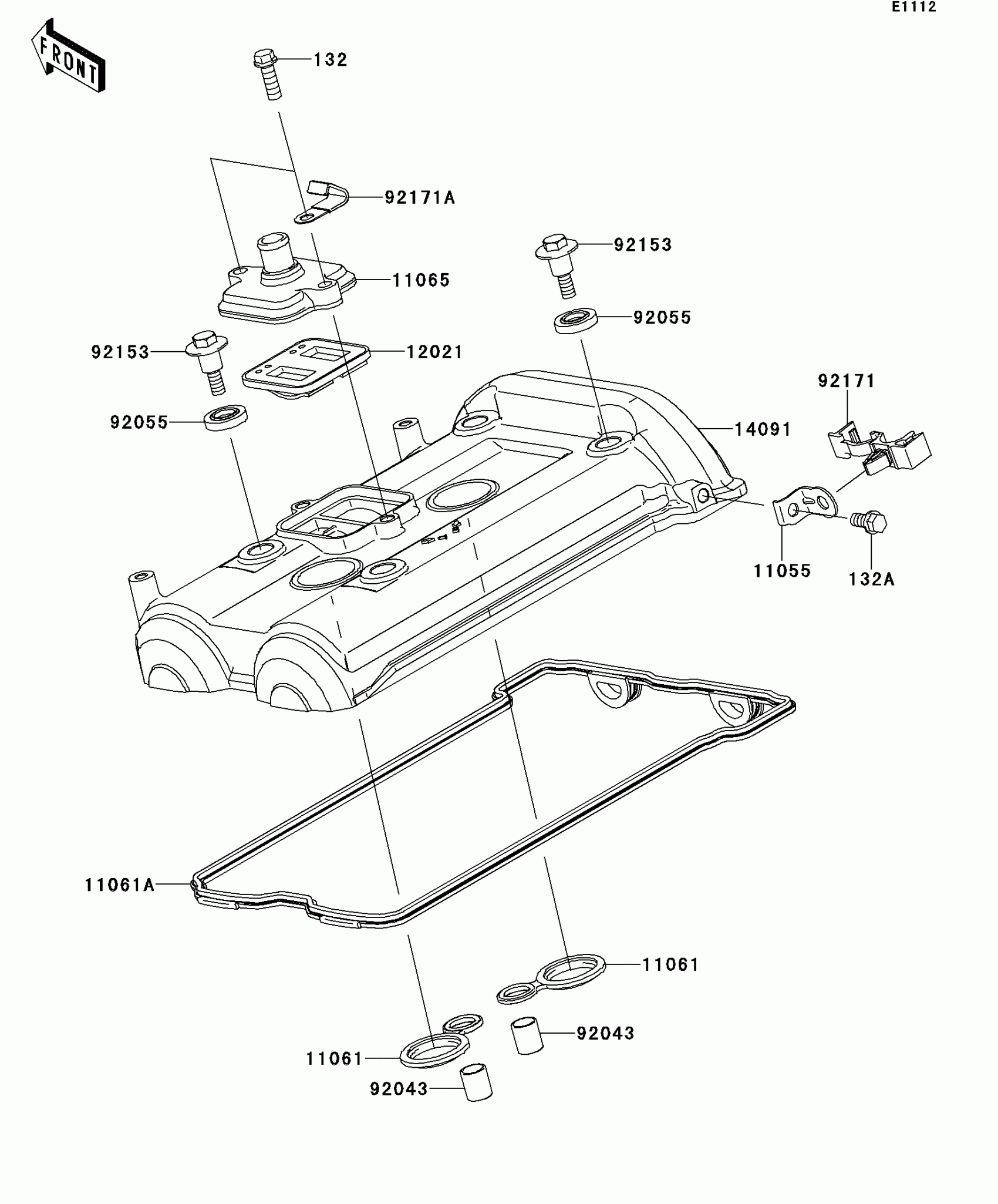

2010 Kawasaki Er-6n Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-1122

1
Out of stock

11061

GASKET,SPARK PLUG HOLE

11061-0105

1
Out of stock

11061A

GASKET,HEAD COVER

11061-0170

1
Out of stock

11065

CAP

11065-0286

1
Out of stock

12021

VALVE-ASSY-REED

12021-1130

1
Out of stock

14091

COVER,HEAD

14091-1702

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-0195

1
Out of stock

92153

BOLT,HEAD COVER

92153-0793

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0789

1
Out of stock

92171A

CLAMP

92171-0813

1
Out of stock

132

BOLT-FLANGED-SMALL,6X18

132BA0618

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock
