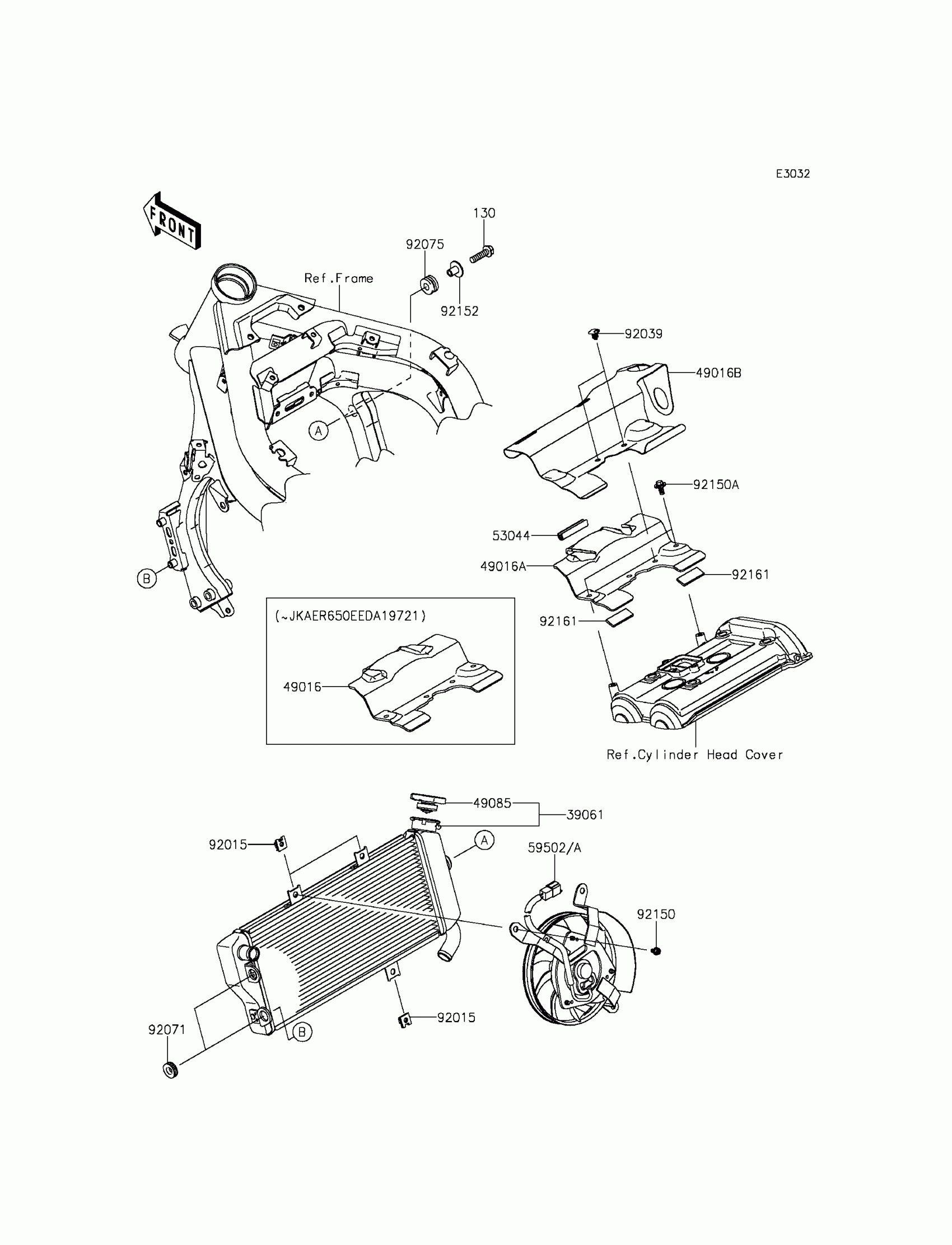

Kawasaki ER-6n Radiator Diagram

Description

Price

39061

RADIATOR-ASSY

39061-0138

Unavailable

49016

COVER-SEAL

49016-0049

$25.53

49085

CAP-ASSY-PRESSURE

49085-1078

$45.97

53044

TRIM,L=50

53044-1185

$4.66

59502

FAN-ASSY

59502-0041

Unavailable

92015

NUT

92015-1487

$3.64

92027

COLLAR,L=13.1

92027-251

Unavailable

92071

GROMMET

92071-1115

$4.14

92075

DAMPER,10X24X12

92075-1690

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,FLANGED,6X14

92150-1689

$3.01

92161

DAMPER

92161-0301

$1.81

130

BOLT-FLANGED,6X22

130BA0622

$1.00
