2008 Kawasaki Er-6n (Australian) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

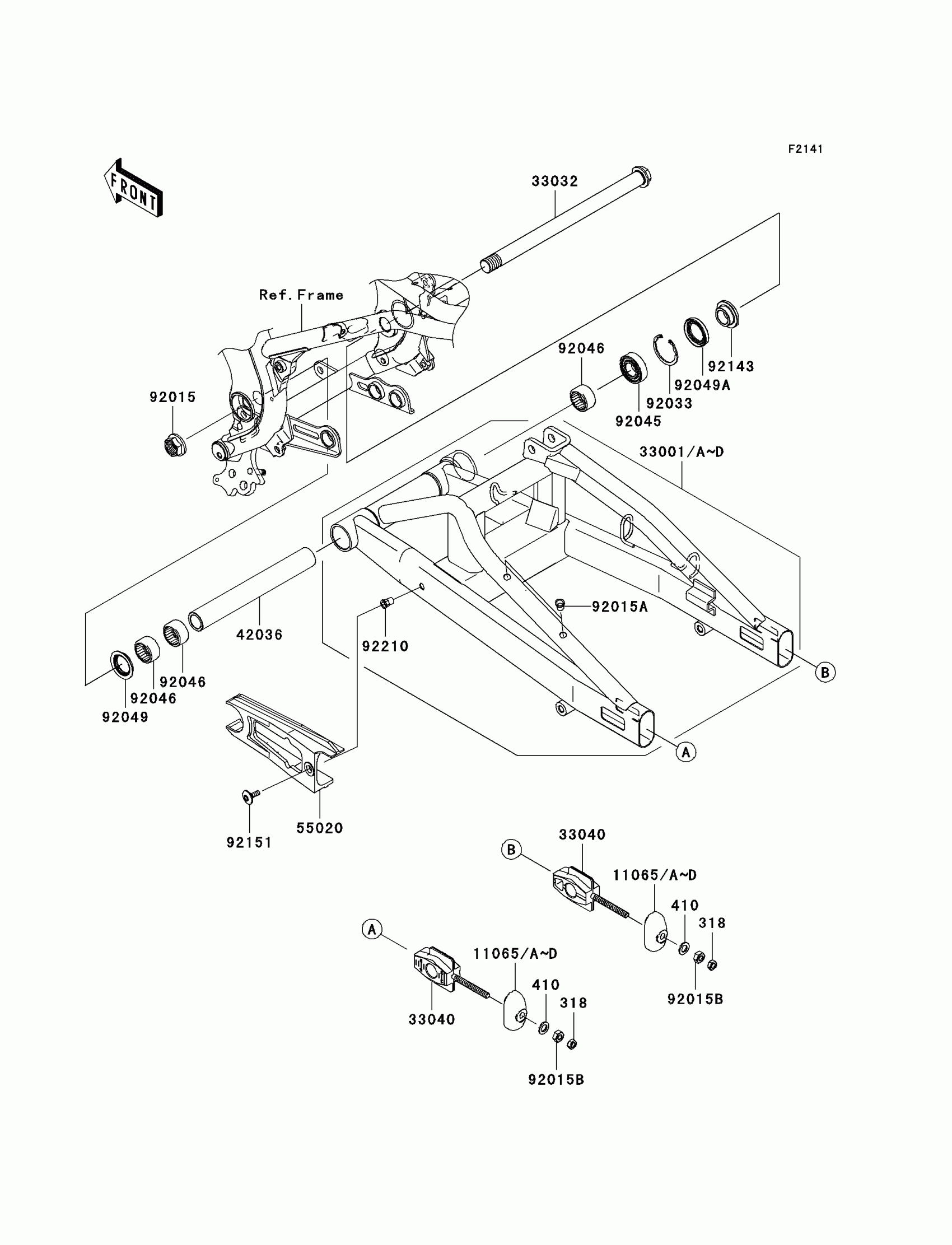

2008 Kawasaki Er-6n (Australian) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL

318C0800

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM,BLACK

410F0800

1
Out of stock

11065A

CAP,CHAIN ADJUSTER,BLACK

11065-0121-18R

1

$22.83

In stock

11065B

1

$22.48

In stock

33001A

ARM-COMP-SWING,BLACK

33001-0081-18R

1

$593.47

In stock

33001B

ARM-COMP-SWING,P.SILVER

33001-0081-458

1

$593.47

In stock

33032

SHAFT-SWING ARM

33032-1142

1

$107.05

In stock

33040

1

$19.10

In stock

42036

1

$75.03

In stock

55020

GUARD,CHAIN

55020-0192

1

$31.32

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92015A

NUT,POP,6MM

92015-1759

1

$4.42

In stock

92015B

NUT,8MM

92015-1959

1

$5.25

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,TC28426.5

92049-1185

1
Out of stock

92143

1

$18.34

In stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
