2008 Kawasaki Er-6n (Australian) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

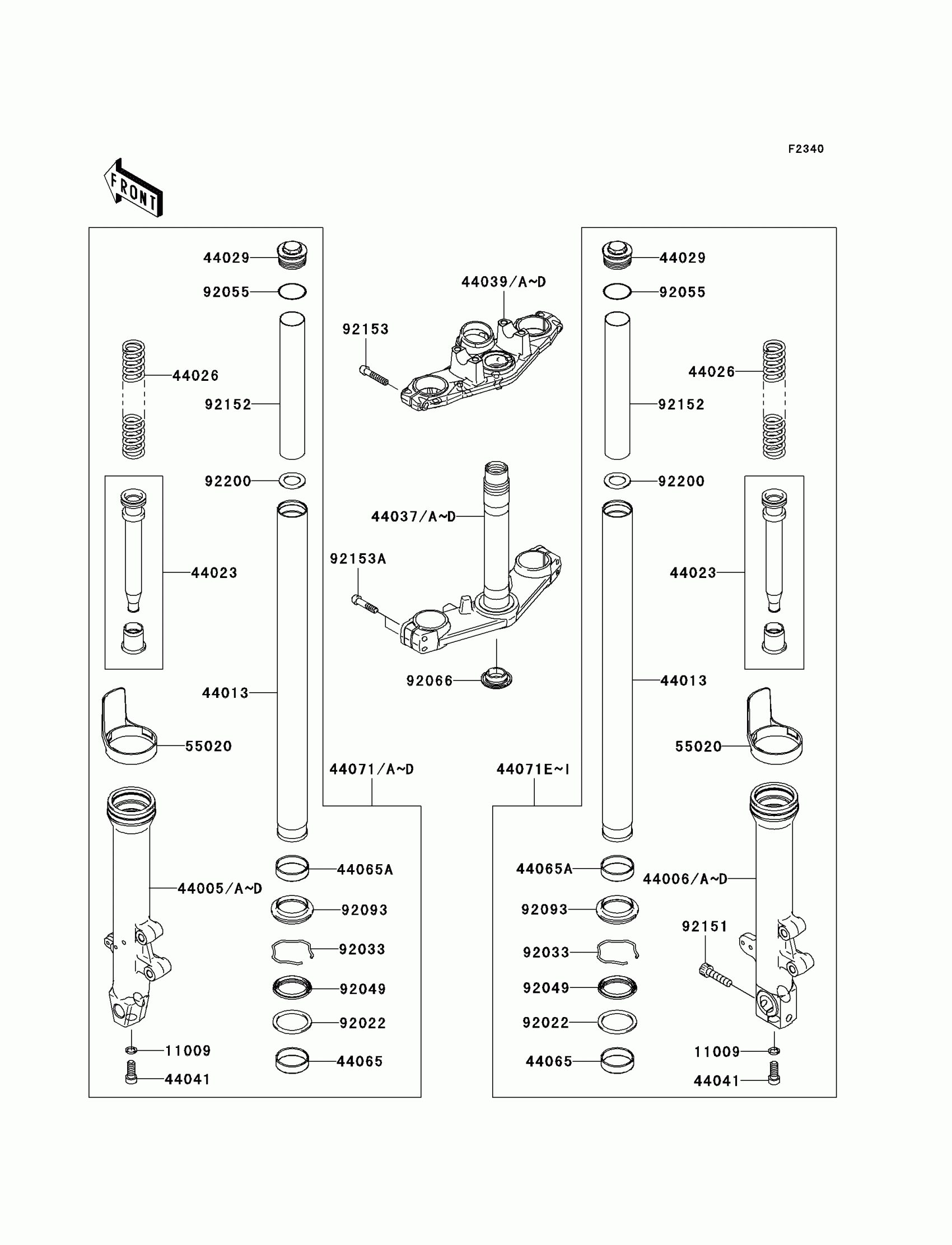

2008 Kawasaki Er-6n (Australian) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44005A

1

$352.55

In stock

44005B

1

$352.55

In stock

44006A

1

$352.55

In stock

44006B

1

$352.55

In stock

44013

PIPE-FORK INNER

44013-0055

1

$489.95

In stock

44023

CYLINDER-SET-FORK

44023-0040

1

$130.00

In stock

44026

SPRING-FRONT FORK

44026-0084

1

$71.13

In stock

44029

SEAT-FORK SPRING

44029-0005

1

$45.48

In stock

44037A

HOLDER-FORK UNDER,BLACK

44037-0050-18R

1

$425.66

In stock

44037B

1

$425.66

In stock

44039A

HOLDER-FORK UPPER,BLACK

44039-0033-18R

1

$314.54

In stock

44039B

1

$314.54

In stock

44041

1

$5.21

In stock

44065

1

$26.78

In stock

44065A

1

$26.35

In stock

44071A

DAMPER-ASSY,FORK,LH,BLACK

44071-0258-18R

1

$748.31

In stock

44071B

1

$748.31

In stock

44071F

DAMPER-ASSY,FORK,RH,BLACK

44071-0259-18R

1

$748.31

In stock

44071G

1

$748.31

In stock

55020

GUARD,FORK

55020-1691

1

$9.53

In stock

92022

1

$6.82

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

RING-O

92055-1321

1

$1.19

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

1

$22.03

In stock

92151

BOLT,SOCKET,10X40

92151-1357

1

$3.59

In stock

92152

COLLAR,FORK

92152-0410

1

$14.03

In stock

92153

BOLT,SOCKET,8X40

92153-0506

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-1472

1
Out of stock

92200

WASHER

92200-1302

1
Out of stock
