2008 Kawasaki Er-6n (Australian) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

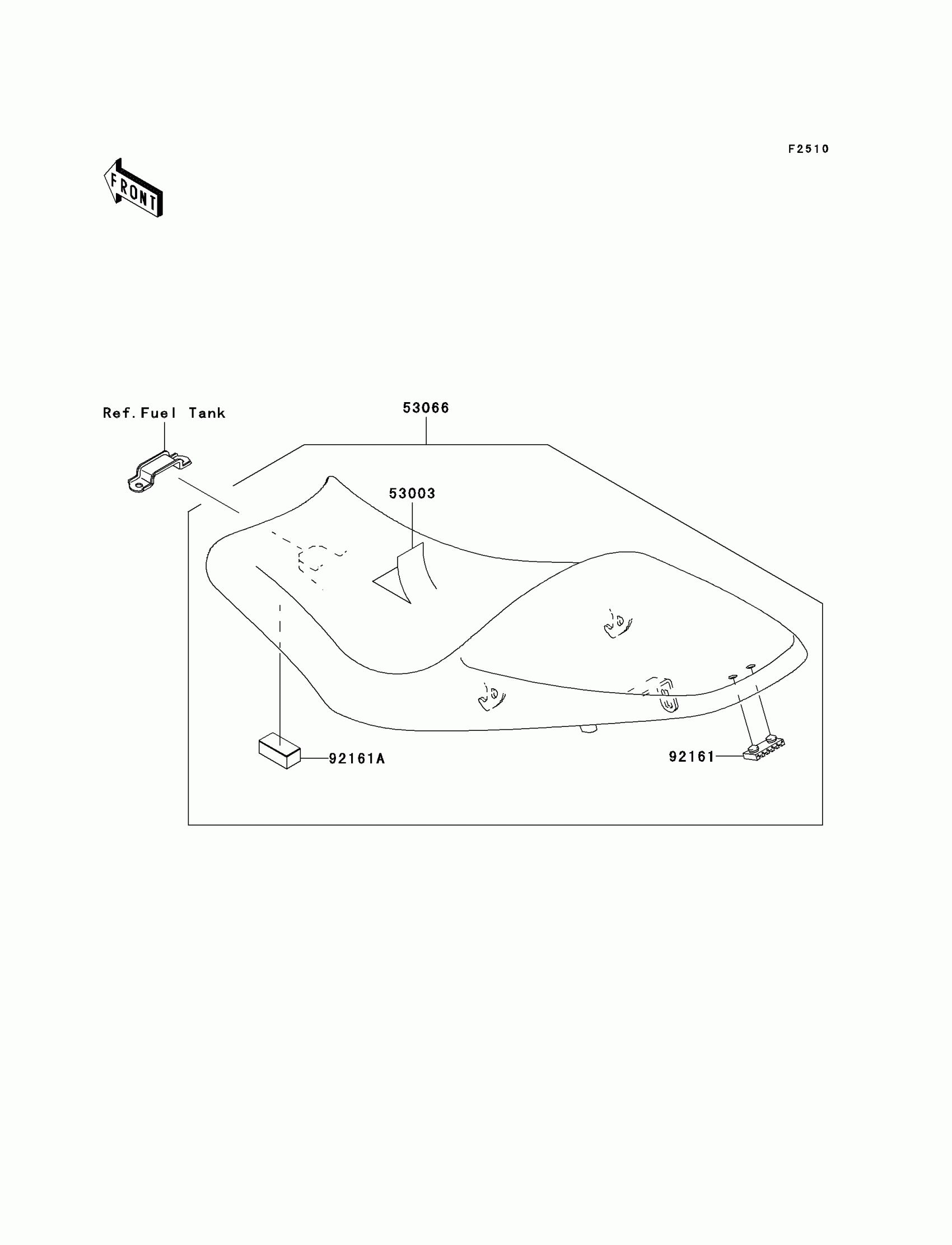

2008 Kawasaki Er-6n (Australian) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53003

LEATHER,SEAT,BLACK

53003-0058-MA

1
Out of stock

53066

SEAT-ASSY,DUAL,BLACK

53066-0136-MA

1
Out of stock

92161

DAMPER,SEAT

92161-0149

1
Out of stock

92161A

DAMPER,SEAT

92161-1321

1
Out of stock
