2008 Kawasaki Er-6n (Australian) Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

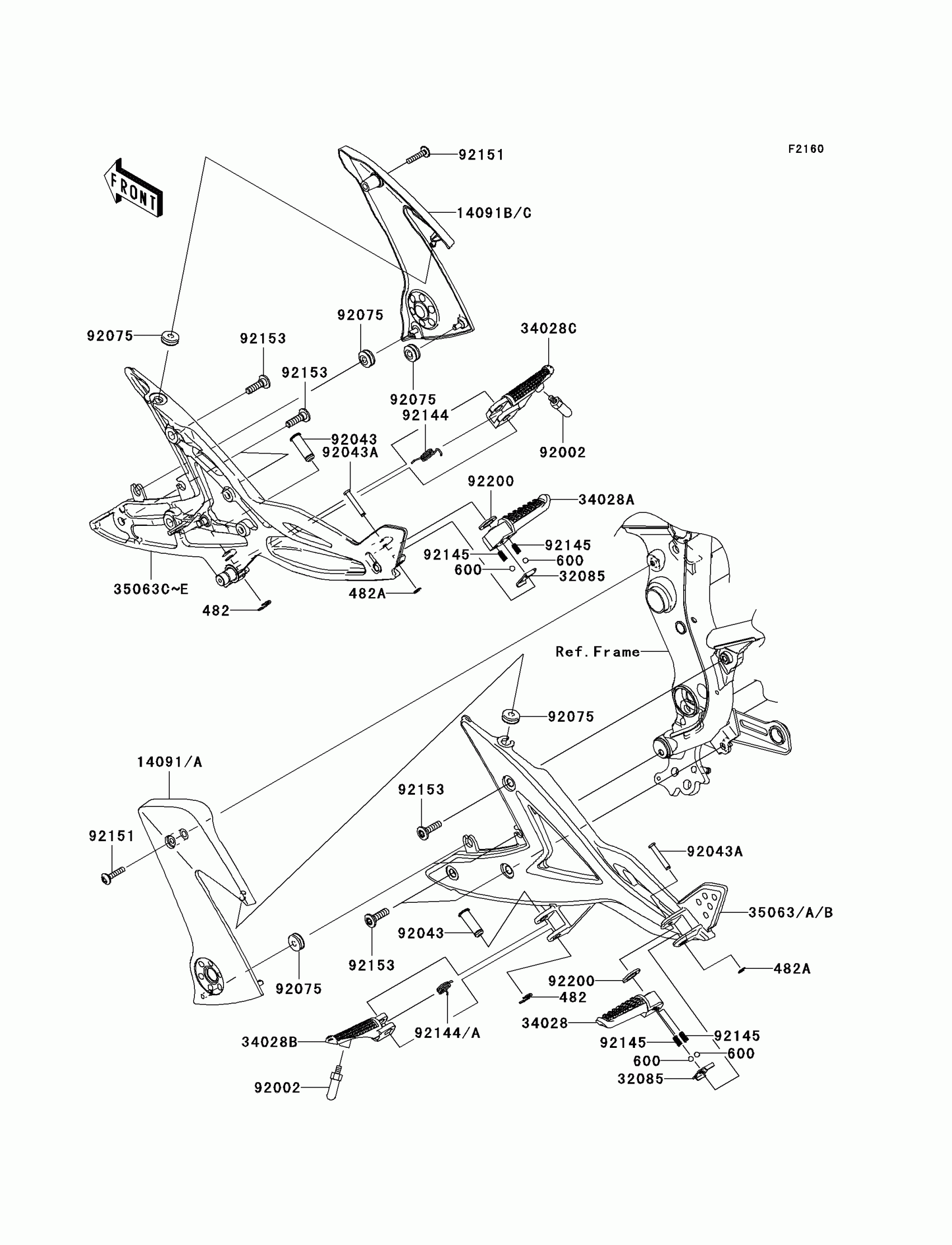

2008 Kawasaki Er-6n (Australian) Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

14091

COVER,PIVOT,LH,F.BLACK

14091-0461-6Z

1
Out of stock

14091B

COVER,PIVOT,RH,F.BLACK

14091-0789-6Z

1
Out of stock

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,RR,LH

34028-0004

1
Out of stock

34028A

STEP,RR,RH

34028-0005

1
Out of stock

34028B

STEP,FR,LH

34028-0059

1
Out of stock

34028C

STEP,FR,RH

34028-0060

1
Out of stock

35063

STAY,STEP,LH,BLACK

35063-0285-18R

1
Out of stock

35063A

STAY,STEP,LH,P.SILVER

35063-0285-458

1
Out of stock

35063C

STAY,STEP,RH,BLACK

35063-0286-18R

1
Out of stock

35063D

STAY,STEP,RH,P.SILVER

35063-0286-458

1
Out of stock

92002

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,12X36.5

92043-0028

1
Out of stock

92043A

PIN,6X40

92043-1595

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92144

SPRING,STEP RETURN

92144-1567

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1630

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock
