2008 Kawasaki Er-6n (Australian) Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

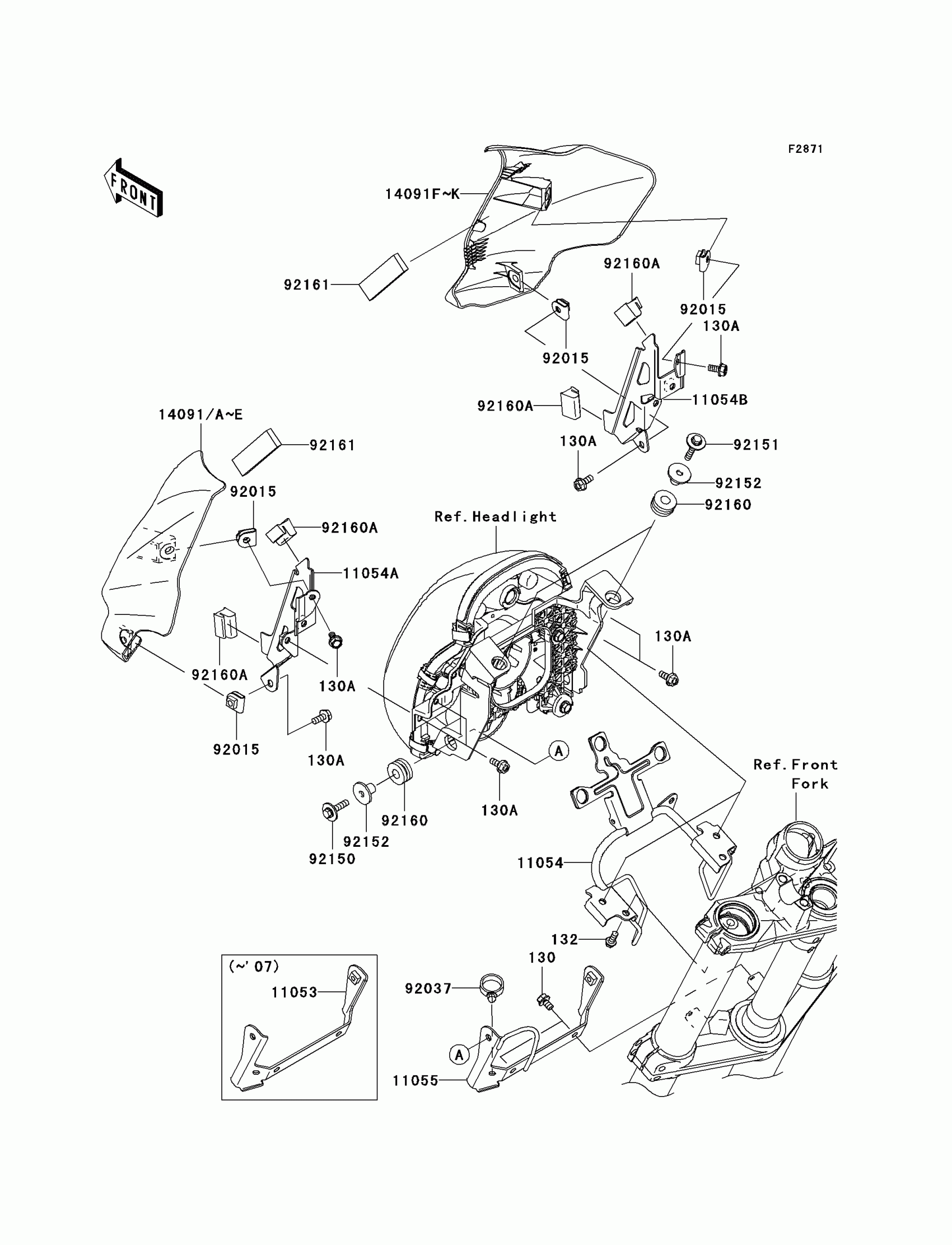

2008 Kawasaki Er-6n (Australian) Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

130A

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BA0614

1
Out of stock

11054

BRACKET,HEAD LAMP,UPP

11054-0220

1
Out of stock

11054A

BRACKET,HEAD LAMP,LH

11054-0251

1
Out of stock

11054B

BRACKET,HEAD LAMP,RH

11054-0252

1
Out of stock

11055

BRACKET,HEAD LAMP,LWR

11055-0178

1
Out of stock

14091A

COVER,HEAD LAMP,LH,C.P.BLUE

14091-0458-15D

1
Out of stock

14091B

COVER,HEAD LAMP,LH,C.L.GREEN

14091-0458-15P

1
Out of stock

14091G

COVER,HEAD LAMP,RH,C.P.BLUE

14091-0459-15D

1
Out of stock

14091H

COVER,HEAD LAMP,RH,C.L.GREEN

14091-0459-15P

1
Out of stock

92015

NUT,CLIP,6MM

92015-1904

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92150

BOLT,6X25

92150-1829

1
Out of stock

92151

BOLT,FLANGED,6X30

92151-1105

1
Out of stock

92152

COLLAR

92152-0048

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92160A

DAMPER

92160-1197

1
Out of stock

92161

DAMPER,HEAD LAMP COVER

92161-0349

1
Out of stock
