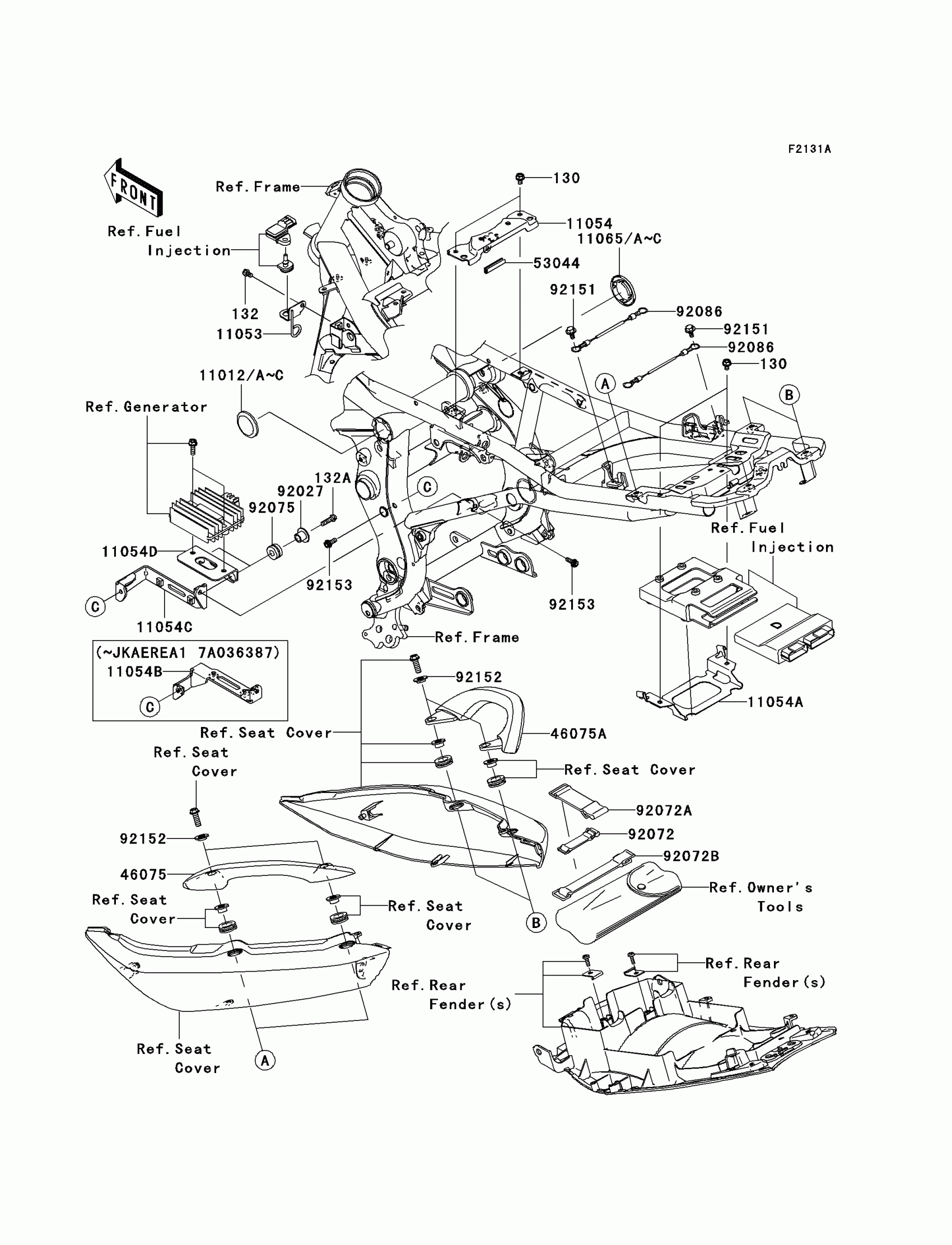

Kawasaki ER-6n (Australian) Frame Fittings(JKAEREA1 7A035083-) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$1.77

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$1.77

132A

BOLT-FLANGED-SMALL,6X22

132BB0622

$1.66

11012B

CAP,CROSS PIPE,BLACK

11012-1717-18T

$8.37

11012C

CAP,CROSS PIPE,P.SILVER

11012-1717-458

$10.63

11053

BRACKET,BOOST SENSOR

11053-1931

$9.41

11054

BRACKET,FUEL TANK

11054-0248

$21.58

11054A

BRACKET,ECU

11054-0347

$16.05

11054C

BRACKET,REGULATOR

11054-1283

$32.41

11054D

BRACKET,REGULATOR

11054-1284

$15.07

11065B

CAP,FRAME,BLACK

11065-0125-18T

$8.37

11065C

CAP,FRAME,P.SILVER

11065-0125-458

$8.37

46075

GRIP,LH

46075-0057

Unavailable

46075A

GRIP,RH

46075-0058

$74.85

53044

TRIM,L=40

53044-1174

$3.85

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92072

BAND

92072-1085

$13.69

92072A

BAND,TOOL

92072-1176

$11.84

92072B

BAND,L=150

92072-1203

$10.80

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92086

WIRE,L=150

92086-1075

Unavailable

92151

BOLT,FLANGED,6X13

92151-1703

$3.01

92152

COLLAR

92152-0551

$5.51

92153

BOLT,SOCKET,6X16

92153-1517

$2.15
