1989 Kawasaki Eliminator Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

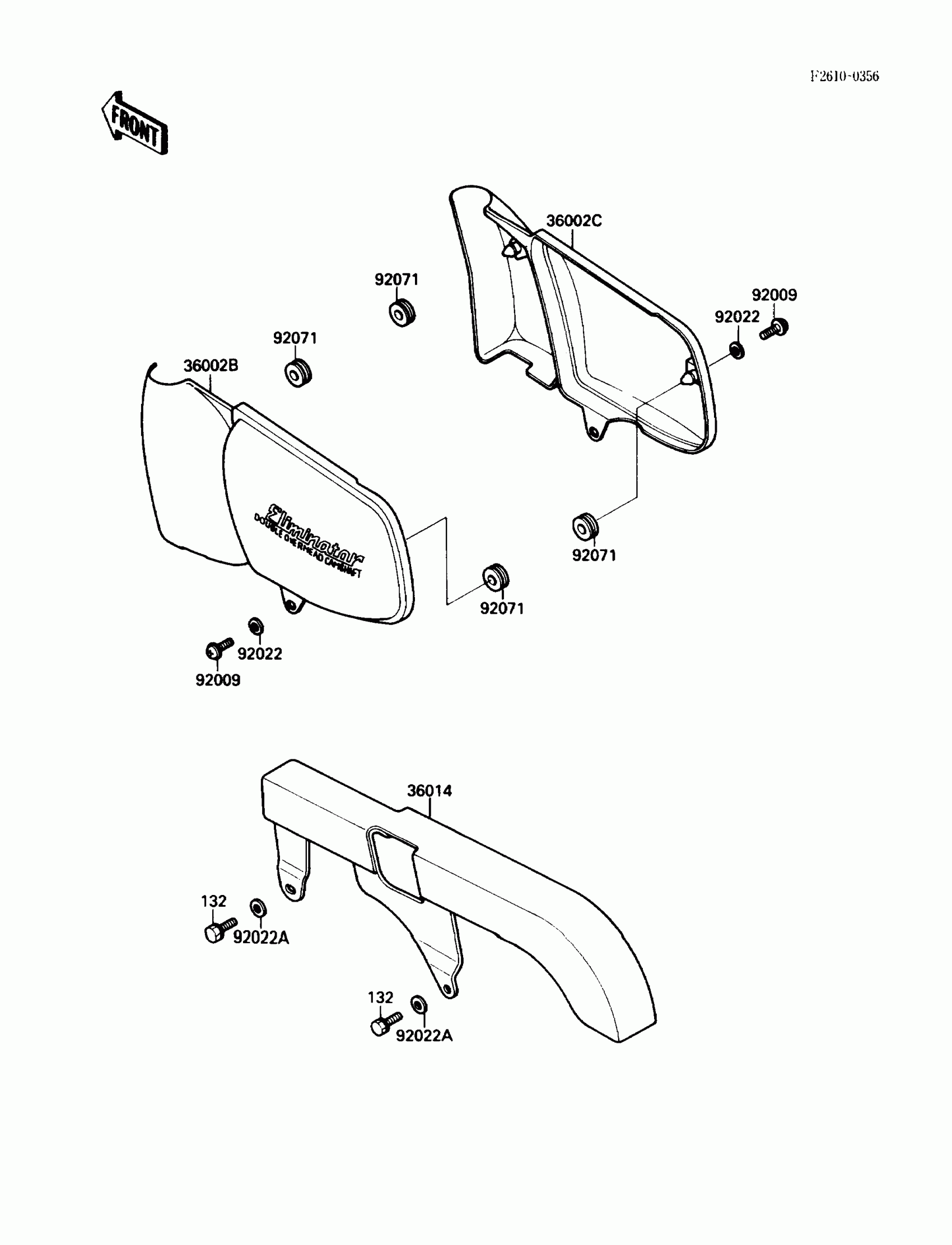

1989 Kawasaki Eliminator Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36002B

1

$298.28

In stock

36002C

1

$298.28

In stock

36014

CASE-CHAIN

36014-1148

1

$78.71

In stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

92022A

WASHER,6.5X20X1.6,WHITE

92022-193

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

132

1

$3.75

In stock
