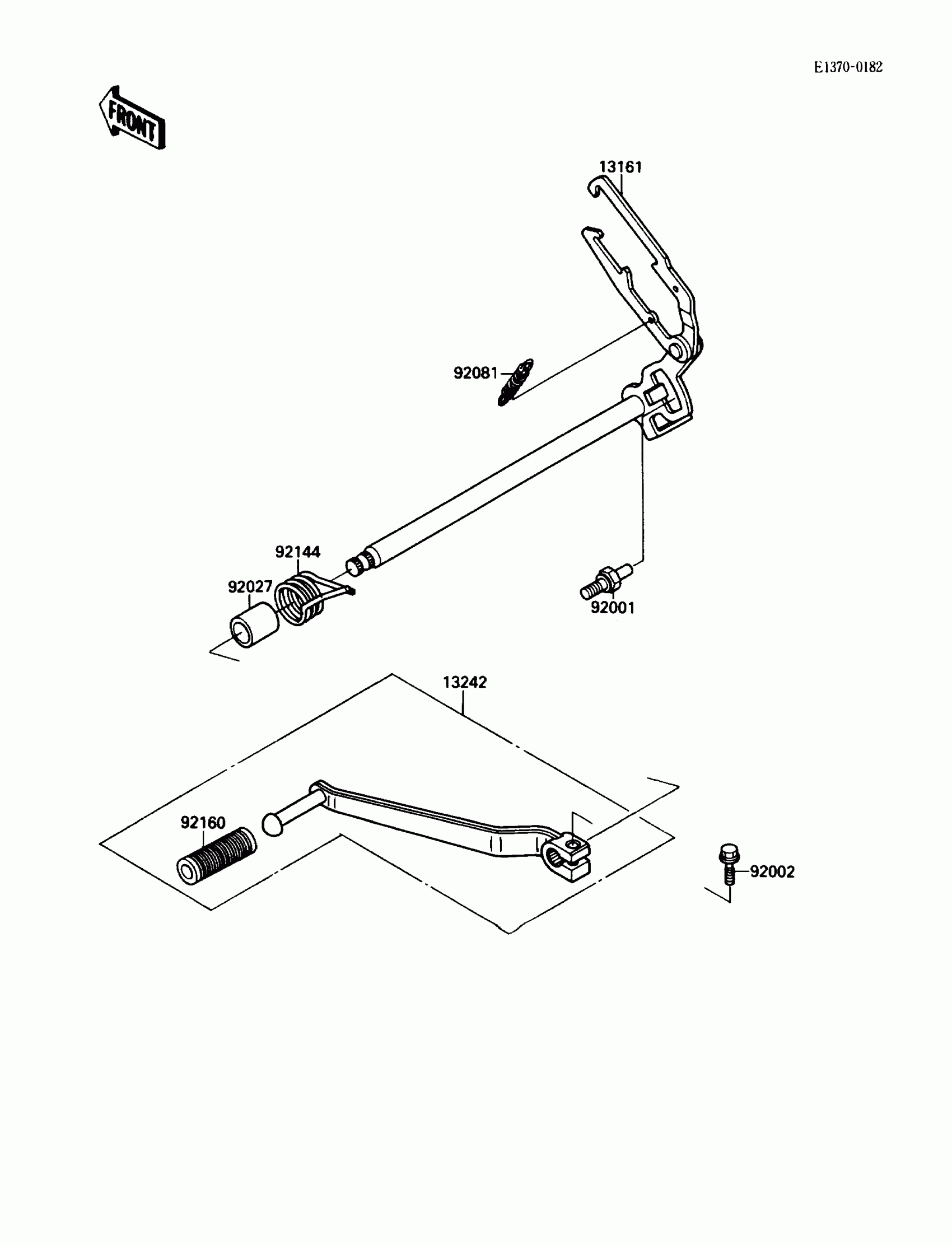

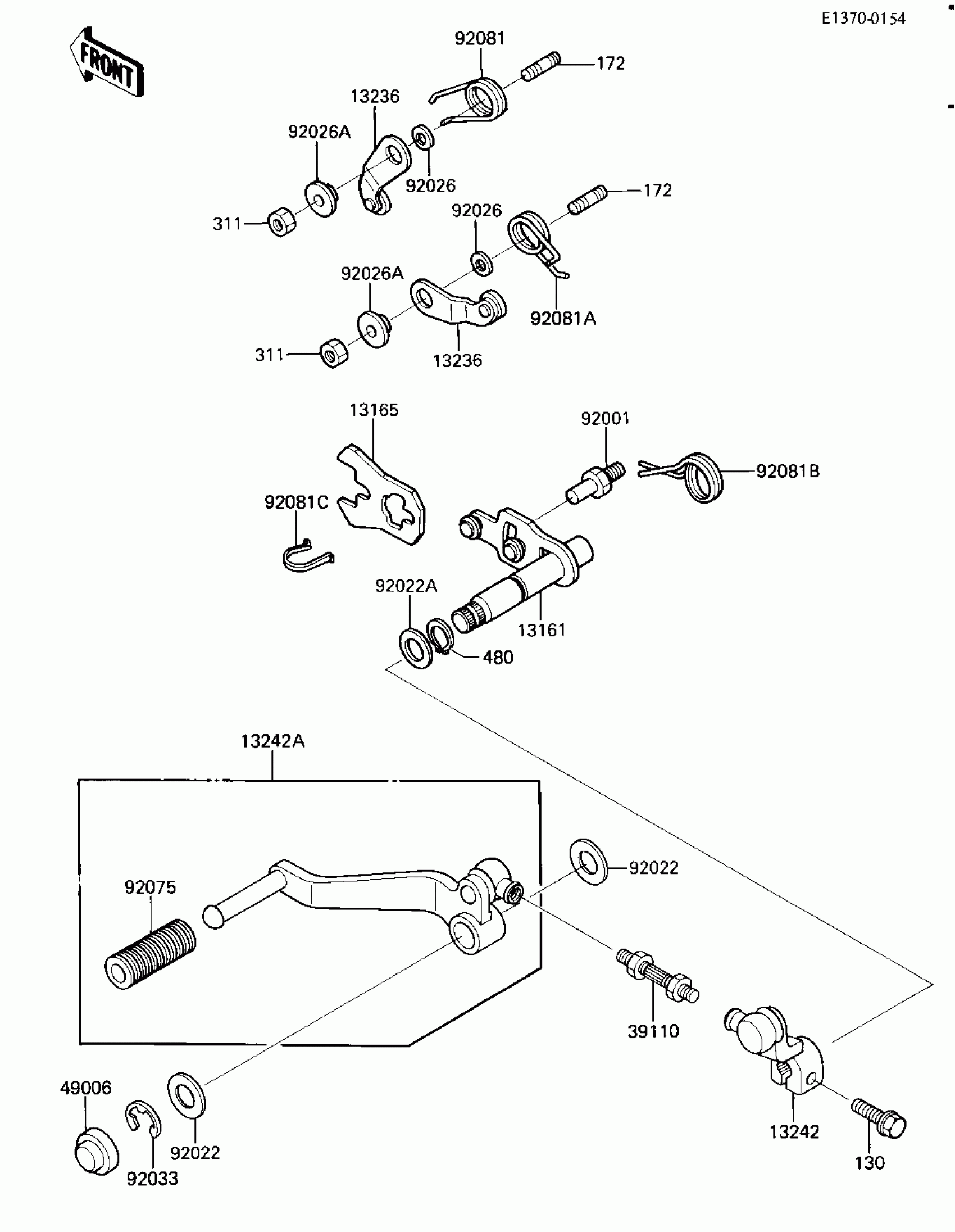

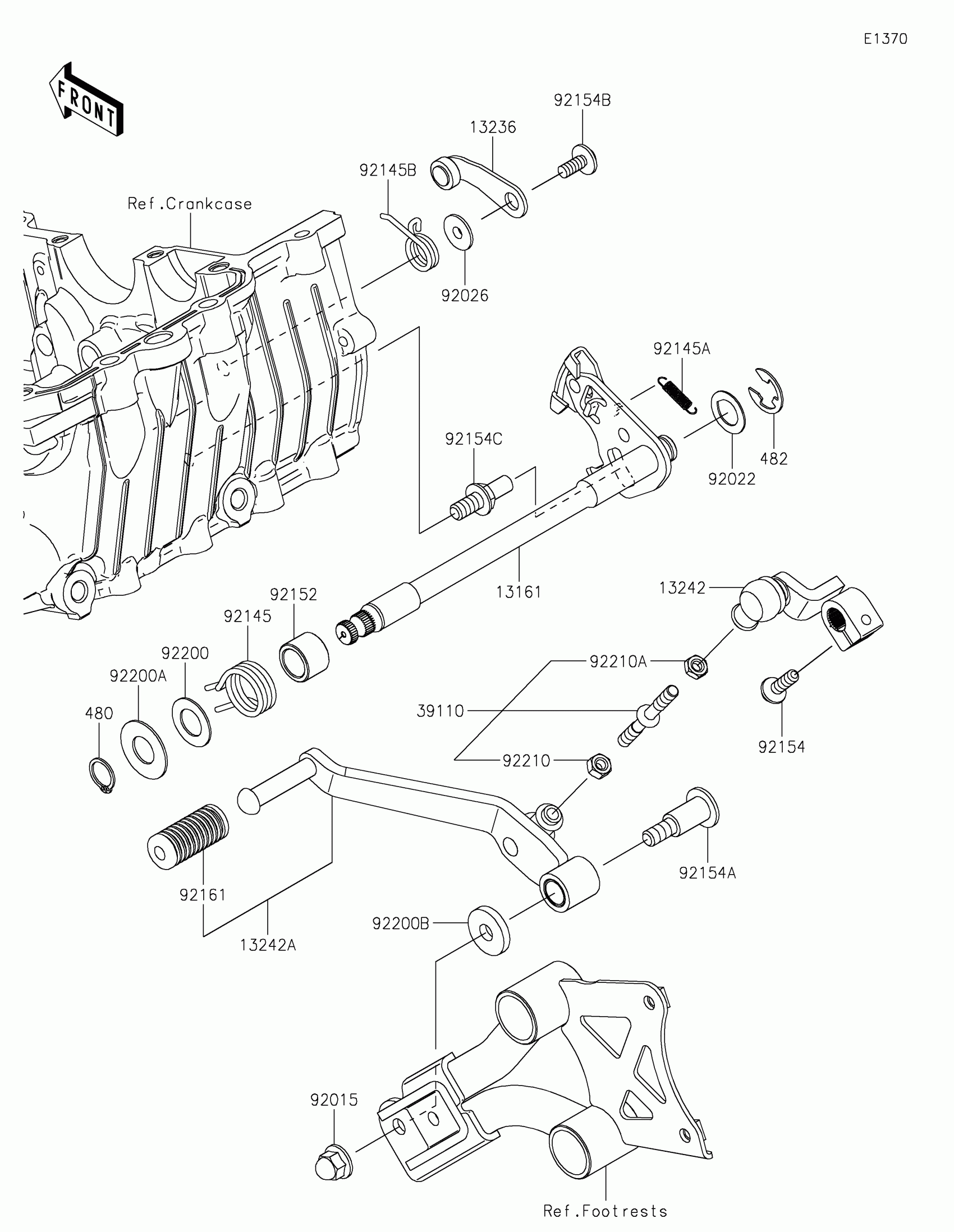

Find the part on the Gear Change Mechanism diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHA

13161-1106

1
Out of stock

13165

PAWL

13165-1120

1
Out of stock

13236

LEVER-COMP,GEAR POSITION

13236-1103

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-1195

1
Out of stock

13242A

LEVER-ASSY-CHANGE,PED

13242-1271

1
Out of stock

39110

ROD-ASSY-TIE

39110-1054

1
Out of stock

49006

BOOT,CHANGE LEVER

49006-1061

1
Out of stock

92001

BOLT,RETURN SPRING

92001-1401

1
Out of stock

92022

WASHER,12.5X22X1.2

92022-1593

1
Out of stock

92022A

WASHER,13.3X18X1

92022-1772

1
Out of stock

92026

SPACER,6.3X12X1.0

92026-094

1
Out of stock

92026A

SPACER

92026-1217

1
Out of stock

92033

RING-SNAP,TYPE-E,10MM

92033-1178

1
Out of stock

92075

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

92081

SPRING

92081-1645

1
Out of stock

92081A

SPRING

92081-1742

1
Out of stock

92081B

SPRING,CHANGE PEDAL RETURN

92081-1750

1
Out of stock

92081C

SPRING,CHANGE LEVER

92081-1829

1
Out of stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock

172

BOLT-STUD,6X14

172G0614

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock
