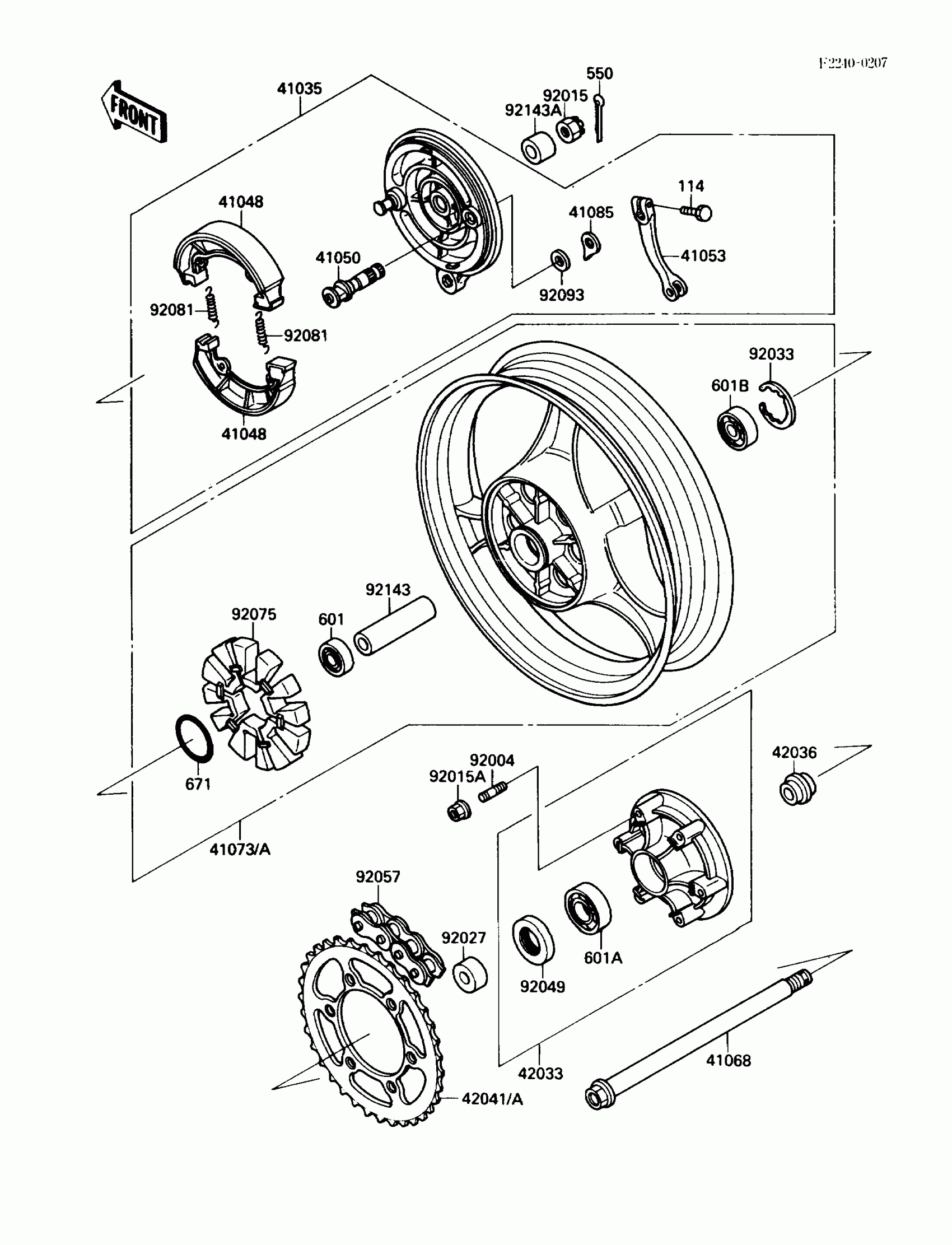

Kawasaki Eliminator Rear Wheel/Chain Diagram

#

Description
Price

41035

PANEL-ASSY-BRAKE,RR

41035-1229

$239.56

41048

SHOE-BRAKE

41048-1062

$22.11

41050

CAM-BRAKE

41050-1065

$40.90

41053

LEVER-BRAKE CAM

41053-1068

$52.48

41068

AXLE,RR

41068-1192

Unavailable

41073

WHEEL-ASSY,RR,F.RED

41073-1370-CW

$585.57

41085

INDICATOR

41085-1060

$12.22

42033

COUPLING-ASSY,RR HUB

42033-1107

$246.81

42036

SLEEVE,RR HUB,L=30

42036-1055

$26.02

42041

SPROCKET-HUB,44T

42041-1292

Unavailable

42041A

SPROCKET-HUB,44T

42041-1293

$55.25

92004

STUD,10X19

92004-1111

$6.80

92015

NUT,CASTLE,16MM

42045-014

$7.54

92015A

NUT,FLANGED,10MM

92015-1335

$1.85

92027

COLLAR,17X35X17.5

42032-068

$19.78

92033

RING-SNAP,47MM

92033-1042

$3.22

92049

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK520SV-OX114L

92057-1240

$221.39

92075

DAMPER,RR HUB SHOCK

92075-1436

$81.84

92081

SPRING,BRAKE SHOE

42020-004

$6.48

92093

SEAL,BRAKE CAM

41051-003

$3.25

92143

COLLAR,17.2X25X105

92143-1124

$15.20

92143A

COLLAR,17.2X30X23.5

92143-1125

Unavailable

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6203ZZC3

601B6203ZZ

Unavailable

601A

BEARING-BALL,#6205G

601B6205G

Unavailable

601B

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16

671

O RING

671B2550

$1.61
