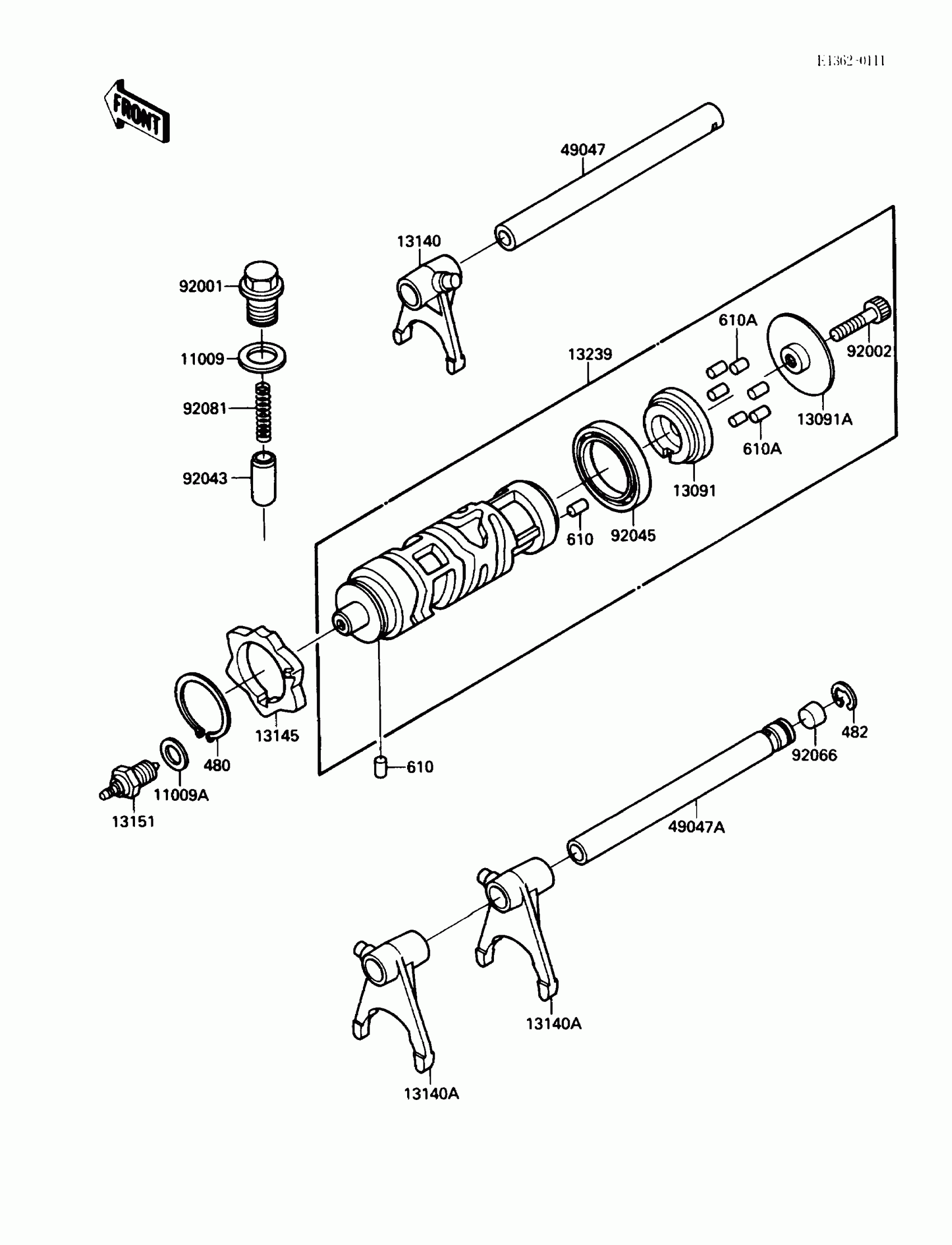

Kawasaki Eliminator Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

11009

GASKET,15.5X22X1

11009-1008

$2.75

11009A

GASKET,10.5X16X1

92065-058

$3.03

13091

HOLDER

13091-1417

$42.77

13091A

HOLDER,CHANGE DRUM

13091-1464

$7.47

13140

FORK-SHIFT,IN

13140-1148

Unavailable

13140A

FORK-SHIFT,OUT

13140-1149

$86.34

13145

CAM-CHANGE DRUM

13145-1058

$22.71

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1131

Unavailable

49047

ROD-SHIFT,IN

49047-1066

$28.98

49047A

ROD-SHIFT,OUT

49047-1067

$30.81

92001

BOLT,NEUTRAL POSITION

92001-1037

$12.73

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

92043

PIN

92043-076

$11.22

92045

BEARING-BALL,6806

92045-1152

$46.71

92066

PLUG

92066-1246

$3.81

92081

SPRING

92081-112

$5.37

480

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

610

ROLLER,4X6

610A0406

$3.29

610A

ROLLER,4X8

610A0408

$3.29
