2025 Kawasaki Eliminator Se ABS Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

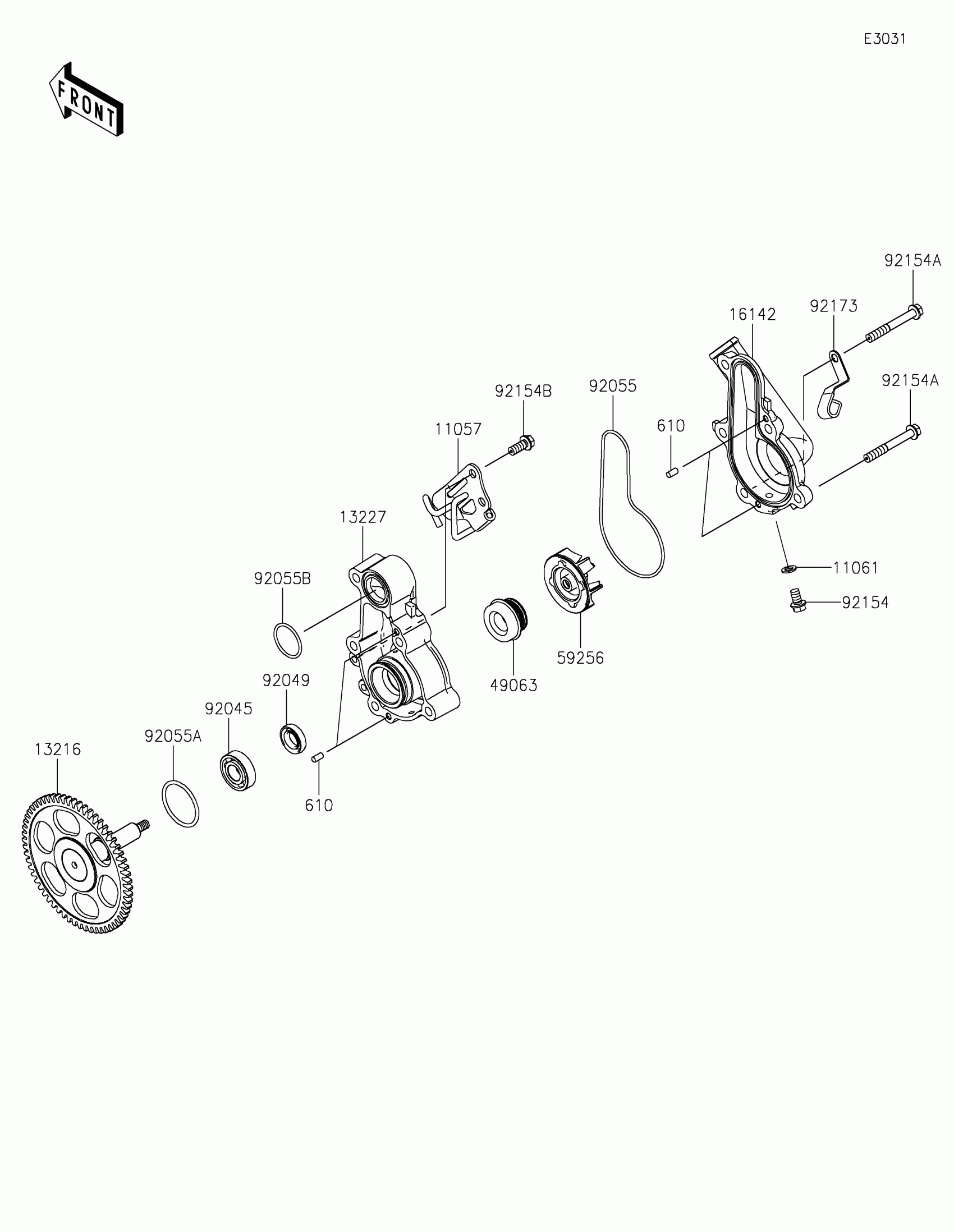

2025 Kawasaki Eliminator Se ABS Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$3.11

In stock

11061

GASKET,DRAIN

11061-0875

1

$4.44

In stock

13216

1

$239.68

In stock

13227

HOUSING

13227-0040

1

$79.04

In stock

16142

COVER-PUMP,WATER

16142-0757

1

$66.67

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0554

1

$22.05

In stock

92045

BEARING-BALL

92045-0067

1
Out of stock

92049

SEAL-OIL,12X22X5

92049-0783

1
Out of stock

92055

RING-O

92055-0889

1

$10.83

In stock

92055A

RING-O,31.20X2.4

92055-0896

1

$1.47

In stock

92055B

RING-O,23.3X1.9

92055-1555

1

$2.27

In stock

92154

BOLT,FLANGED,6X10

92154-2344

1

$0.88

In stock

92154A

BOLT,FLANGED,6X45

92154-2789

1

$1.47

In stock

92154B

BOLT,FLANGED,6X14

92154-2838

1

$0.88

In stock

92173

CLAMP

92173-1935

1

$3.15

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
