2025 Kawasaki Eliminator Se ABS Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

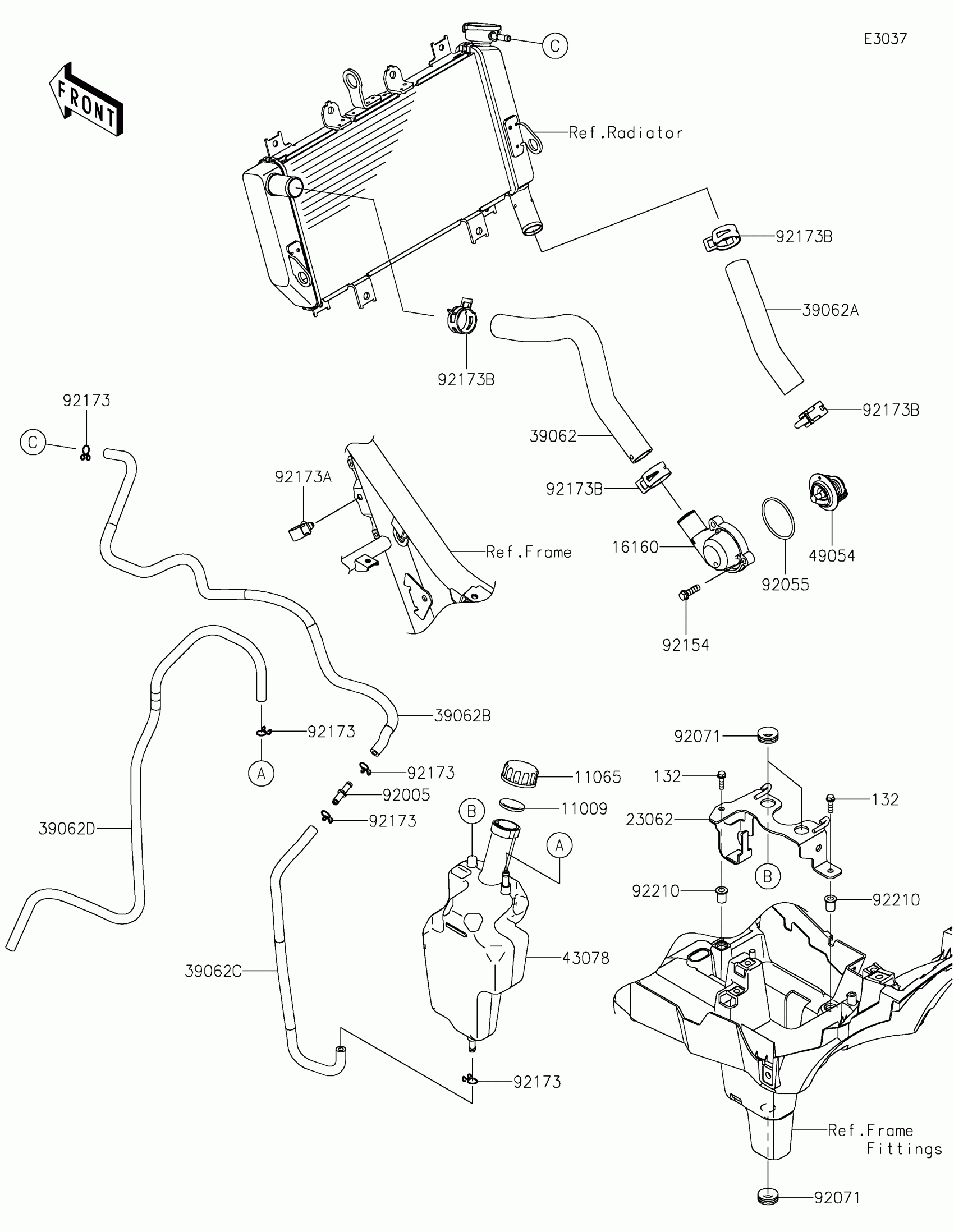

2025 Kawasaki Eliminator Se ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

16160

BODY,THERMOSTAT

16160-0830

1

$47.83

In stock

23062

BRACKET-COMP

23062-1414

1

$34.69

In stock

39062

1

$13.29

In stock

39062A

1

$8.06

In stock

39062B

1

$41.23

In stock

39062C

1

$14.97

In stock

39062D

1

$32.77

In stock

43078

RESERVOIR

43078-0619

1

$43.55

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92005

FITTING

92005-0721

1
Out of stock

92055

RING-O,46.7X2.4

92055-0992

1

$5.00

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92154

BOLT,FLANGED,6X20

92154-1778

1

$1.88

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92173A

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173B

CLAMP

92173-1688

1

$3.07

In stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

132

BOLT-FLANGED-SMALL

132BB0516

1

$1.17

In stock
