2025 Kawasaki Eliminator Se ABS Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

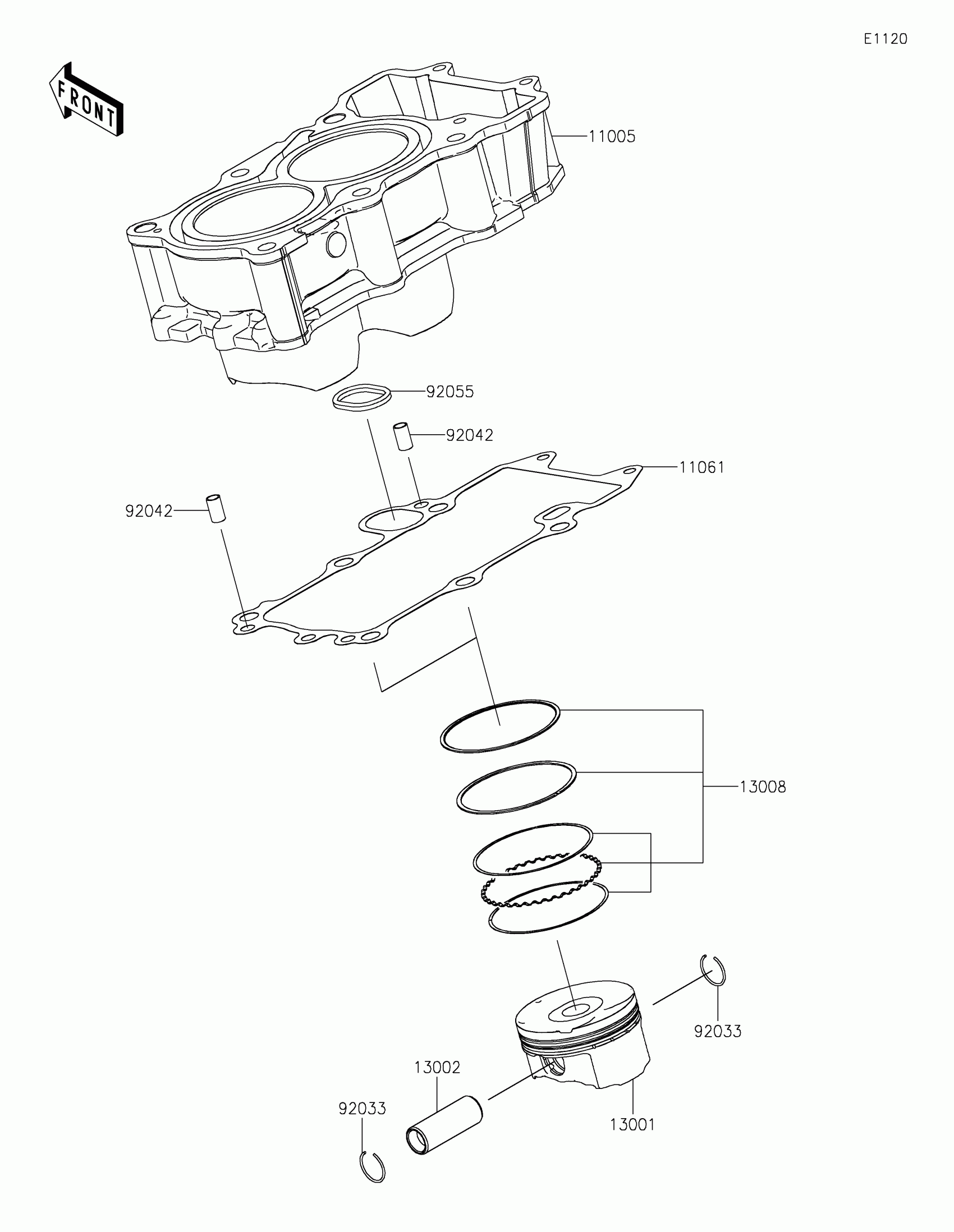

2025 Kawasaki Eliminator Se ABS Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0740

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1458

1
Out of stock

13001

PISTON-ENGINE

13001-0840

1
Out of stock

13002

PIN-PISTON

13002-0050

1
Out of stock

13008

RING-SET-PISTON

13008-0603

1
Out of stock

92033

RING-SNAP

92033-1054

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92055

RING-O

92055-0888

1
Out of stock
