2025 Kawasaki Eliminator Se ABS Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

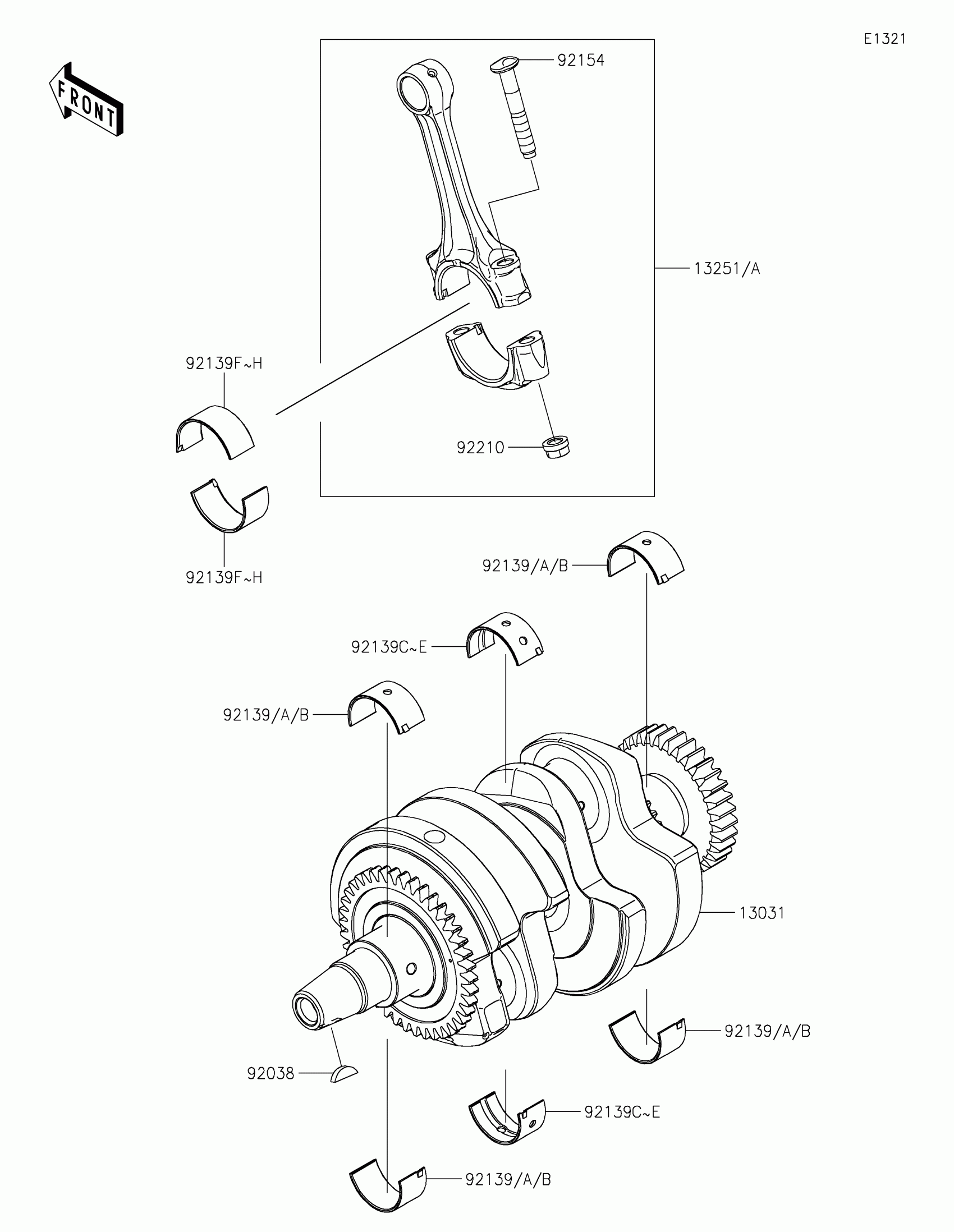

2025 Kawasaki Eliminator Se ABS Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1560

1

$753.40

In stock

13251

ROD-ASSY-CONNECTING,G

13251-0757-GG

1

$167.00

In stock

13251A

ROD-ASSY-CONNECTING,H

13251-0757-HH

—

$167.00

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92139

—

$13.53

In stock

92139A

1

$13.53

In stock

92139B

—

$13.53

In stock

92139C

—

$16.69

In stock

92139D

1

$16.69

In stock

92139E

—

$16.69

In stock

92139F

—

$18.44

In stock

92139G

1

$18.44

In stock

92139H

—

$18.44

In stock

92154

BOLT,7MM

92154-7075

1

$2.27

In stock

92210

NUT,CONNECTING ROD,7MM

92210-0384

1
Out of stock
