1986 Kawasaki Eliminator Radiator/fan/water Pump Diagram

← All diagrams

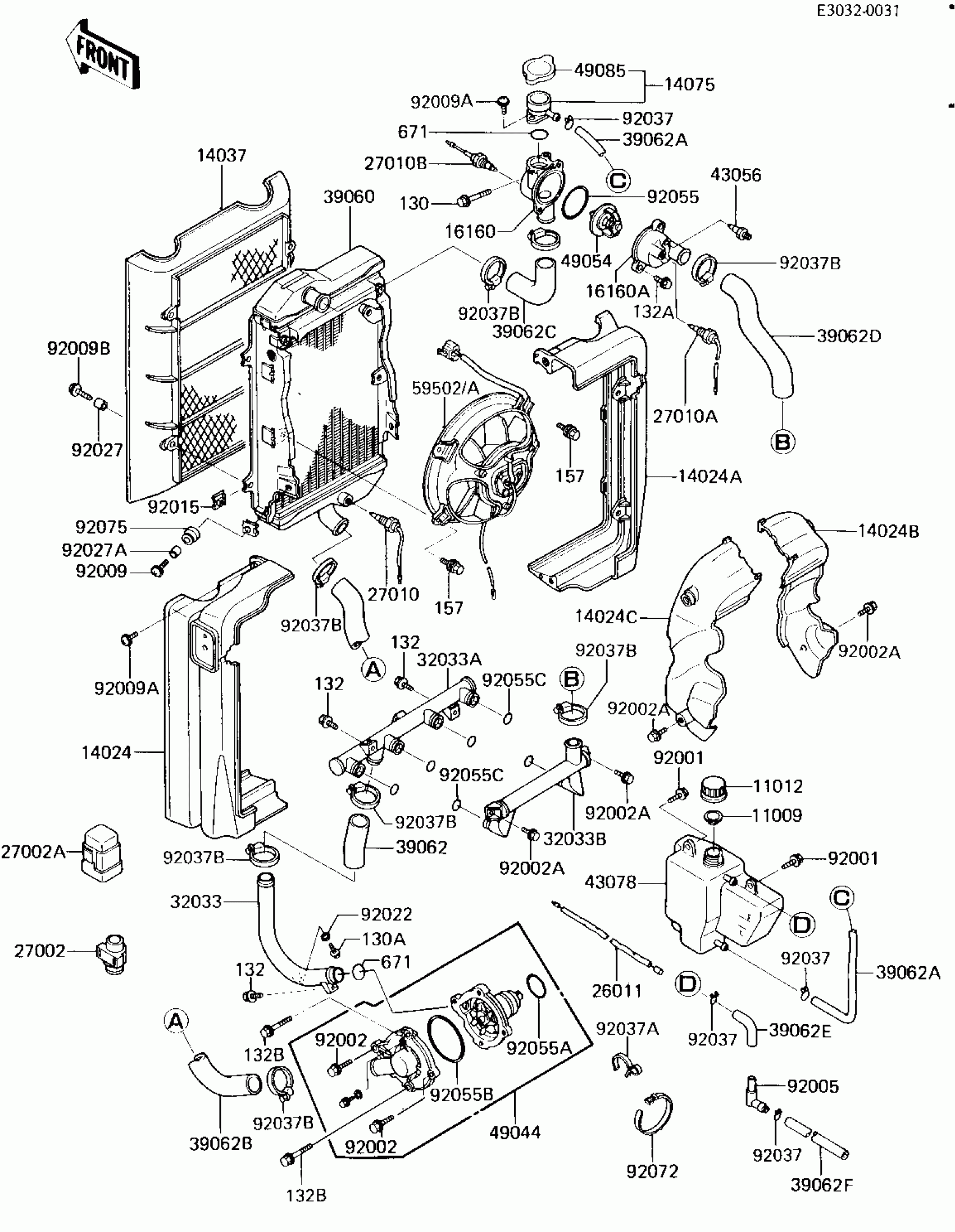

Find the part on the Radiator/fan/water Pump diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Radiator/fan/water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14024

COVER,SCREEN,LH

14024-1070

1
Out of stock

14024A

COVER,SCREEN,RH

14024-1071

1
Out of stock

14024B

COVER,RH

14024-1073

1
Out of stock

14024C

COVER,LH

14024-1118

1
Out of stock

14037

SCREEN

14037-1074

1
Out of stock

14075

CAP-ASSY,RADIATOR

14075-1062

1

$140.62

In stock

16160

BODY,THERMOSTAT

16160-1098

1
Out of stock

16160A

BODY,THERMOSTAT

16160-1099

1
Out of stock

26011

WIRE-LEAD,OIL TEMPERA

26011-1318

1
Out of stock

27002

RELAY-ASSY

27002-1054

1
Out of stock

27002A

RELAY-ASSY

27002-1055

1
Out of stock

27010

SWITCH,FAN

27010-1180

1
Out of stock

27010A

SWITCH,WARNING

27010-1188

1
Out of stock

27010B

SWITCH,OIL TEMPERATUR

27010-1191

1
Out of stock

32033

PIPE-WATER

39192-1028

1

$127.70

In stock

32033A

PIPE

32033-1262

1
Out of stock

32033B

PIPE

32033-1712

1
Out of stock

39060

RADIATOR

39060-1064

1

$988.38

In stock

39062

HOSE-COOLING

39062-1072

1

$20.89

In stock

39062A

HOSE-COOLING

39062-1124

1

$23.82

In stock

39062B

HOSE-COOLING

39062-1126

1
Out of stock

39062C

HOSE-COOLING

39062-1127

1
Out of stock

39062D

HOSE-COOLING

39062-1128

1
Out of stock

39062E

HOSE-COOLING

39062-1141

1

$23.82

In stock

39062F

HOSE-COOLING

39062-1142

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43078

RESERVOIR

43078-1064

1
Out of stock

49044

PUMP-WATER

49044-1058

1
Out of stock

49054

THERMOSTAT

49054-1051

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1053

1
Out of stock

59502A

FAN-ASSY

59502-1061

1
Out of stock

92001

BOLT,W/WASHER,6X12

92001-1516

1
Out of stock

92002

BOLT,6X22

92002-1392

1
Out of stock

92002A

BOLT,6X14

92002-1550

1
Out of stock

92005

FITTING

92005-1138

1
Out of stock

92009

SCREW

92009-1664

1
Out of stock

92009A

SCREW,6X14

92009-1288

1
Out of stock

92009B

SCREW,6X28,BLACK

92009-1400

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92027

COLLAR,6.8X10X11.5

92027-1210

1
Out of stock

92027A

COLLAR

92027-1945

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP,HOSE

92037-1552

1
Out of stock

92037B

CLAMP,COOLING HOSE

92037-1985

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92055A

RING-O,33.8MM

92055-1266

1
Out of stock

92055B

RING-O,WATER PUMP

92055-1271

1
Out of stock

92055C

RING-O

92055-1282

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92075

DAMPER

92075-1773

1
Out of stock

130

BOLT-FLANGED,6X50

130B0650

1
Out of stock

130A

BOLT-FLANGED

130J0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

157

BOLT-WSP

157J0612

1
Out of stock

671

O RING,25MM

671B2525

1
Out of stock
