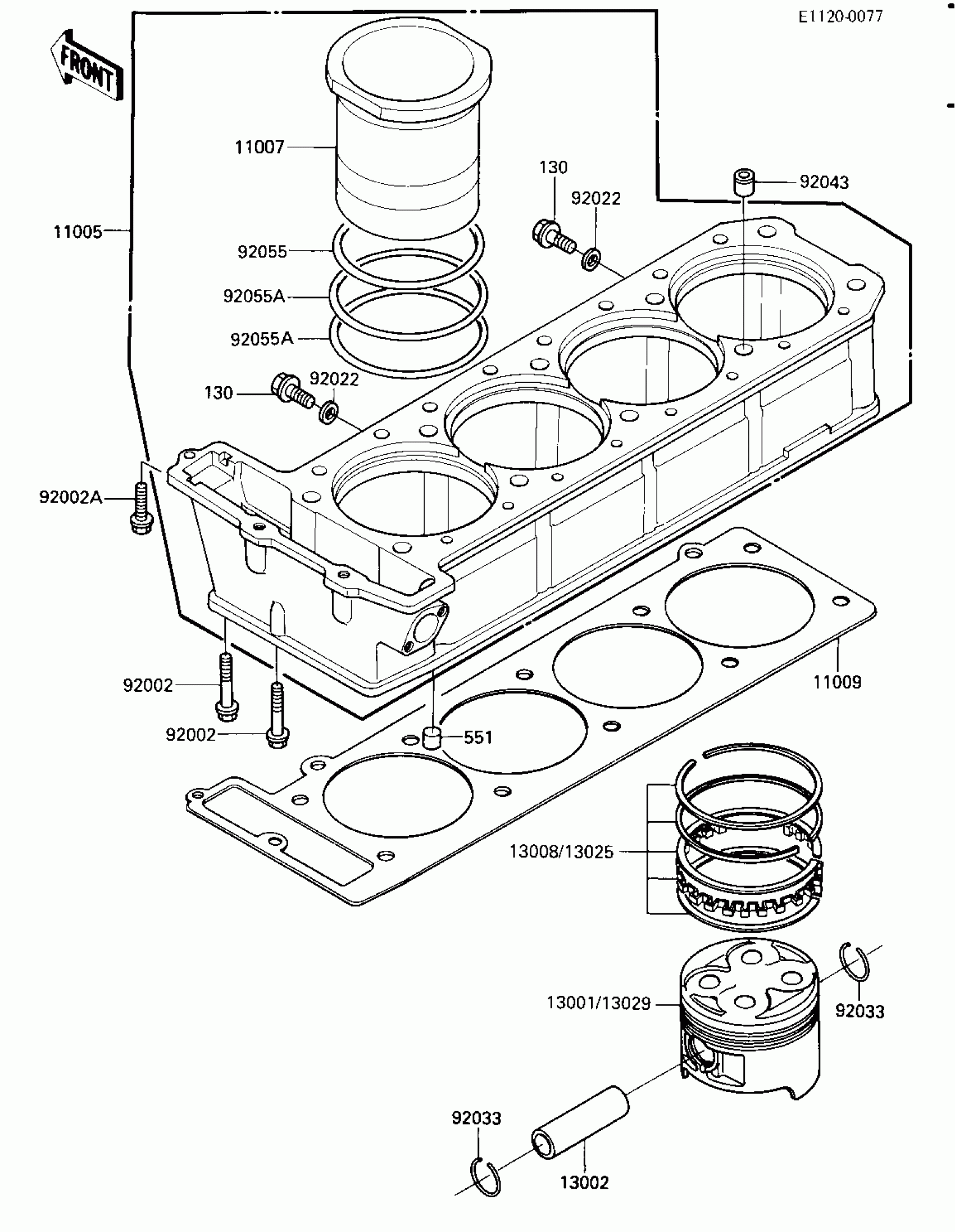

Kawasaki Eliminator CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1447

Unavailable

11007

LINER-CYLINDER

11007-1063

Unavailable

11009

GASKET,CYLINDER BASE

11009-1505

Unavailable

13001

PISTON-ENGINE,STD

13001-1205

Unavailable

13002

PIN-PISTON,12X18X57.2

13002-1023

$21.26

13008

RING-SET-PISTON,STD

13008-1053

$70.20

13025

RING-SET-PISTON L,O/S 0.50

13025-1053

$80.31

13029

PISTON-ENGINE L,O/S 0

13029-1142

Unavailable

92002

BOLT,6X38

92001-1899

$3.92

92002A

BOLT,FLANGED,M6X30

92002-1138

$3.88

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92043

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,78MM

92055-1229

$19.68

92055A

RING-O,79.5MM

92055-1230

$6.19

130

BOLT-FLANGED,6X10

130C0610

Unavailable

551

PIN-DOWEL

551A1012

Unavailable
