1986 Kawasaki Eliminator Generator Shaft/starter Clutch Diagram

← All diagrams

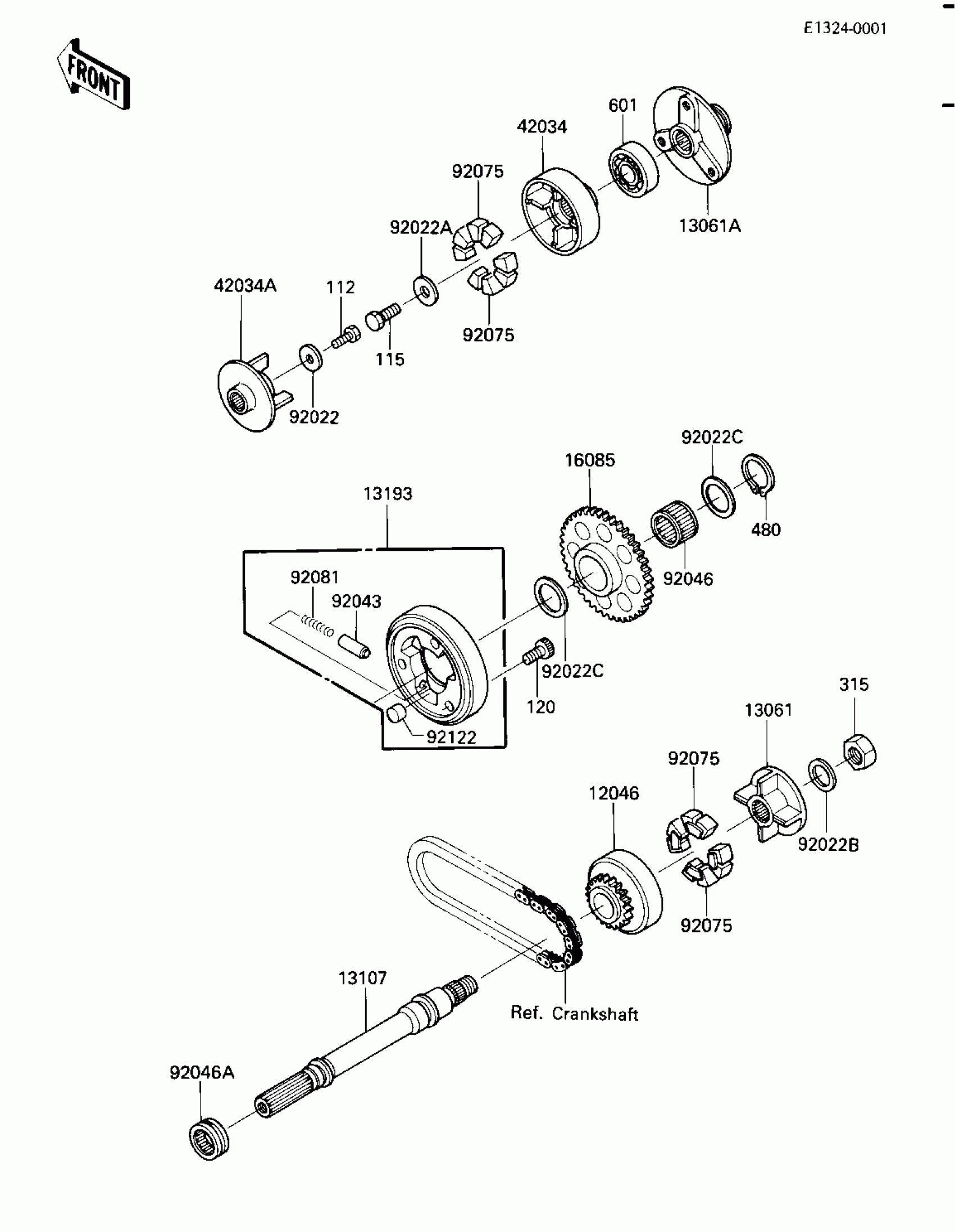

Find the part on the Generator Shaft/starter Clutch diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Generator Shaft/starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,GENERATOR

12046-1068

1
Out of stock

13061

BOSS,SPROCKET

13061-1111

1
Out of stock

13061A

BOSS,COUPLING

13061-1112

1
Out of stock

13107

SHAFT

13107-1108

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1052

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1118

1
Out of stock

42034

COUPLING

42034-1055

1
Out of stock

42034A

COUPLING

42034-1056

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92022A

WASHER,8X22X3

92022-1518

1
Out of stock

92022B

WASHER,16X26X2

92022-1519

1
Out of stock

92022C

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92043

PIN

92043-087

1
Out of stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92046A

BEARING-NEEDLE,RNA4903

92046-1109

1
Out of stock

92075

DAMPER,COUPLING

92075-1790

1
Out of stock

92081

SPRING

92081-110

1
Out of stock

92122

ROLLER,15X13

92122-004

1
Out of stock

112

BOLT-UPSET,6X16

112G0616

1
Out of stock

115

BOLT,8X20

115G0820

1
Out of stock

120

BOLT-SOCKET,8X12

120P0812

1
Out of stock

315

NUT-HEX-FINE

315G1600

1
Out of stock

480

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

601

BEARING-BALL,#6203

601A6203

1
Out of stock
