2025 Kawasaki Eliminator ABS Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

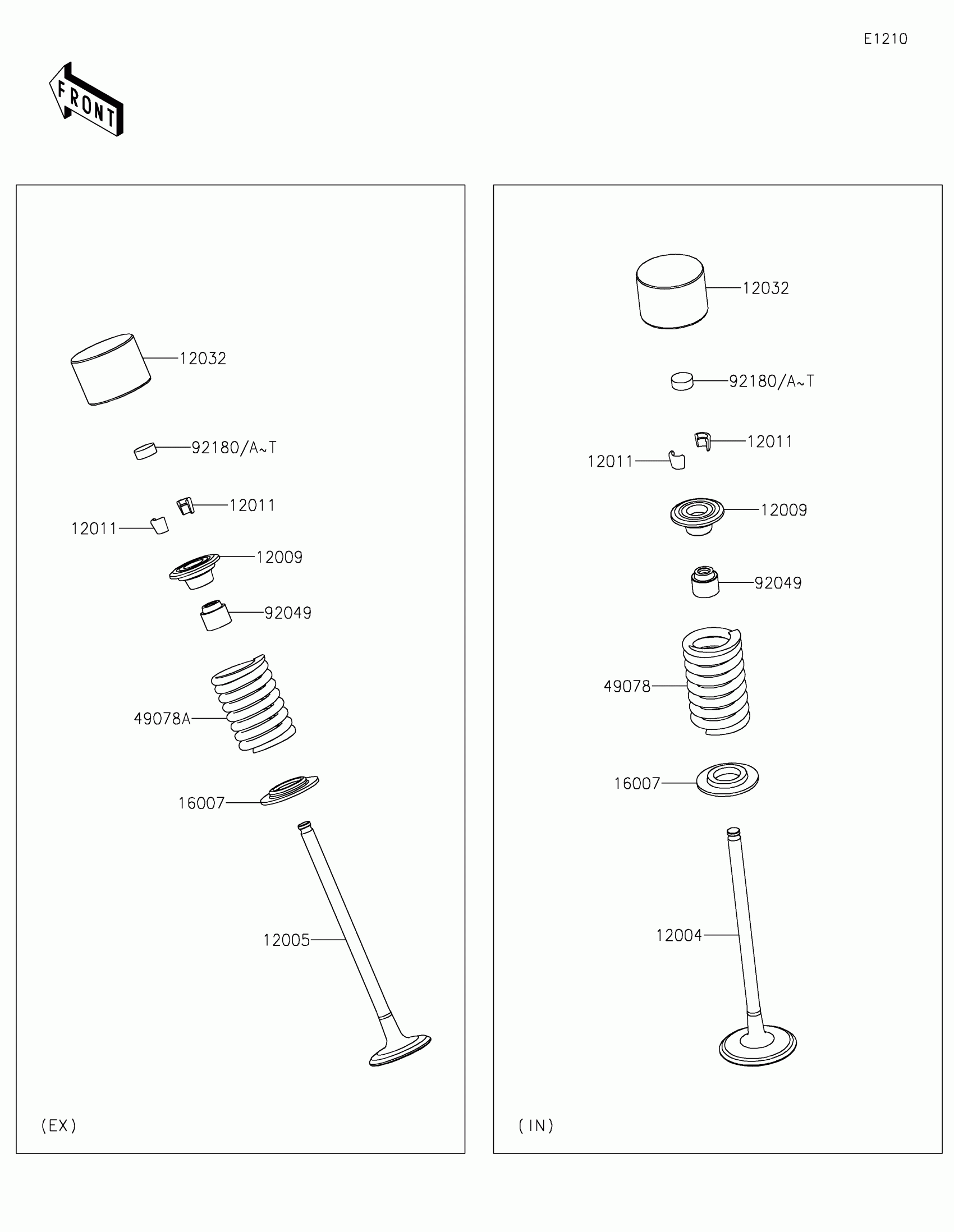

2025 Kawasaki Eliminator ABS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0755

1
Out of stock

12005

VALVE-EXHAUST

12005-0772

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1073

1
Out of stock

12011

COLLET

12011-1053

1
Out of stock

12032

TAPPET

12032-0018

1
Out of stock

16007

SEAT-SPRING

16007-0741

1
Out of stock

49078

SPRING-ENGINE VALVE,INTAKE

49078-0812

1
Out of stock

49078A

SPRING-ENGINE VALVE,EXHAUST

49078-0813

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock

92180

SHIM,T=2.50

92180-1014

1
Out of stock

92180A

SHIM,T=2.55

92180-1016

—
Out of stock

92180B

SHIM,T=2.60

92180-1018

—
Out of stock

92180C

SHIM,T=2.65

92180-1020

—
Out of stock

92180D

SHIM,T=2.70

92180-1022

—
Out of stock

92180E

SHIM,T=2.75

92180-1024

—
Out of stock

92180F

SHIM,T=2.80

92180-1026

—
Out of stock

92180G

SHIM,T=2.85

92180-1028

—
Out of stock

92180H

SHIM,T=2.90

92180-1030

—
Out of stock

92180I

SHIM,T=2.95

92180-1032

—
Out of stock

92180J

SHIM,T=3.00

92180-1034

—
Out of stock

92180K

SHIM,T=3.05

92180-1036

—
Out of stock

92180L

SHIM,T=3.10

92180-1038

—
Out of stock

92180M

SHIM,T=3.15

92180-1040

—
Out of stock

92180N

SHIM,T=3.20

92180-1042

—
Out of stock

92180O

SHIM,T=3.25

92180-1044

—
Out of stock

92180P

SHIM,T=3.30

92180-1046

—
Out of stock

92180Q

SHIM,T=3.35

92180-1048

—
Out of stock

92180R

SHIM,T=3.40

92180-1050

—
Out of stock

92180S

SHIM,T=3.45

92180-1052

—
Out of stock

92180T

SHIM,T=3.50

92180-1054

—
Out of stock
