2025 Kawasaki Eliminator ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

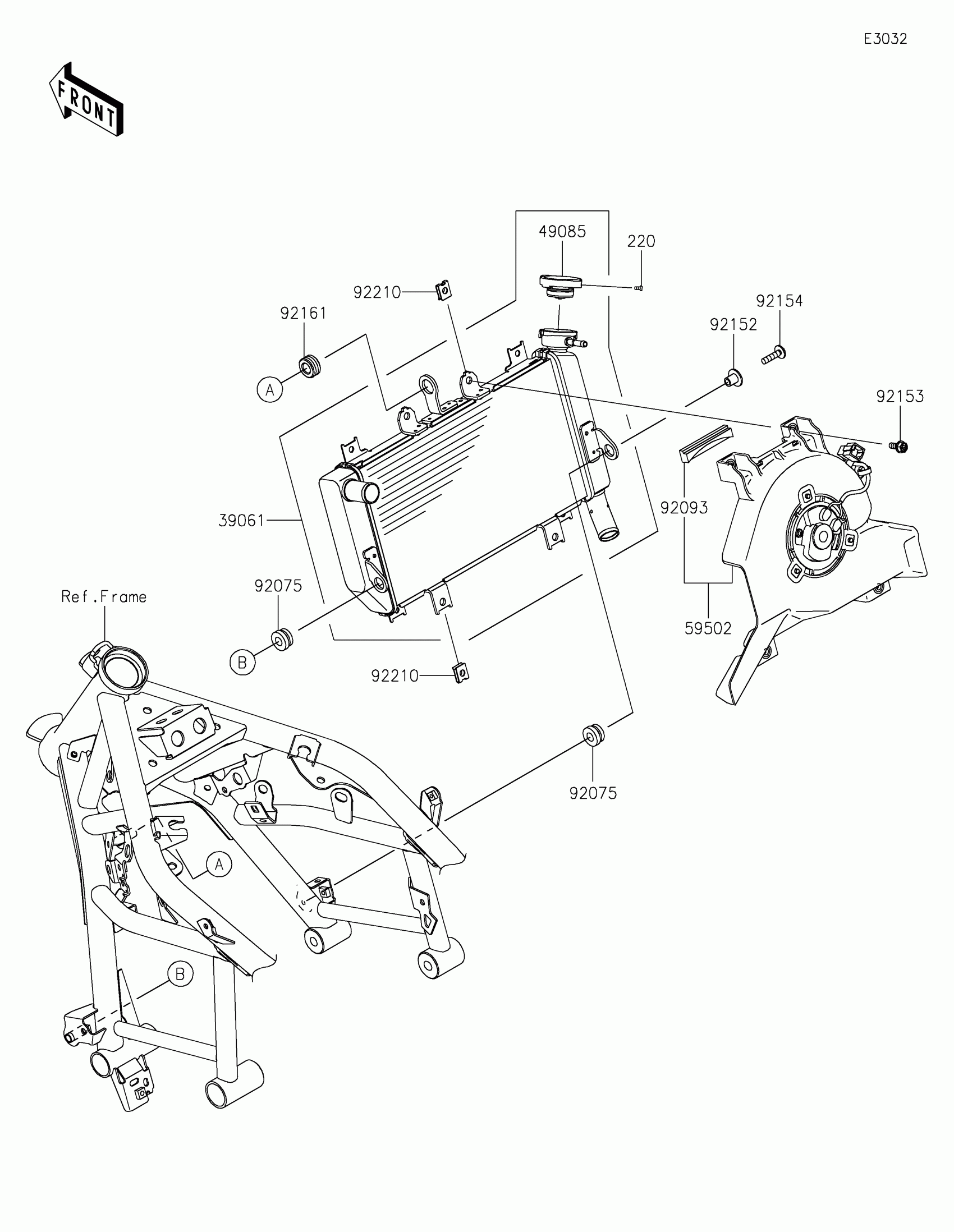

2025 Kawasaki Eliminator ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39061

RADIATOR-ASSY

39061-0921

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0016

1
Out of stock

59502

FAN-ASSY

59502-0646

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92093

SEAL

92093-0713

1
Out of stock

92152

COLLAR

92152-2852

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-4306

1
Out of stock

92161

DAMPER

92161-2080

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

220

SCREW-PAN-CROS,3X6

220AB0306

1
Out of stock
