2025 Kawasaki Eliminator ABS Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

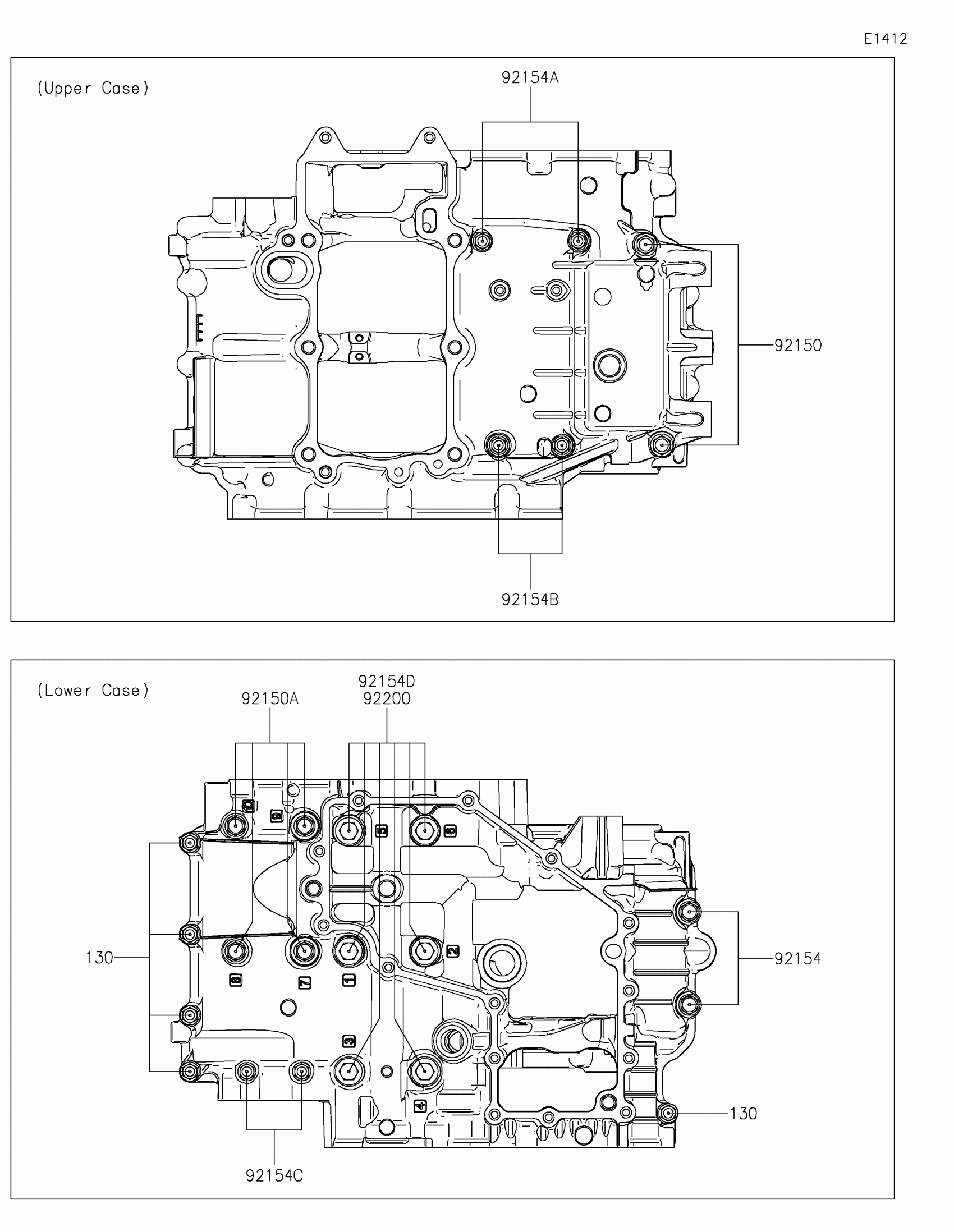

2025 Kawasaki Eliminator ABS Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,8X80

92150-1162

1
Out of stock

92150A

BOLT,8X70

92150-1483

1
Out of stock

92154

BOLT,FLANGED,8X40

92154-0992

1
Out of stock

92154A

BOLT,FLANGED,6X72

92154-2679

1
Out of stock

92154B

BOLT,FLANGED,6X52

92154-2680

1
Out of stock

92154C

BOLT,FLANGED,6X76

92154-2681

1
Out of stock

92154D

BOLT,FLANGED,9X105

92154-7020

1
Out of stock

92200

WASHER,9.2X19X2.3

92200-0115

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock
