2025 Kawasaki Eliminator ABS Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

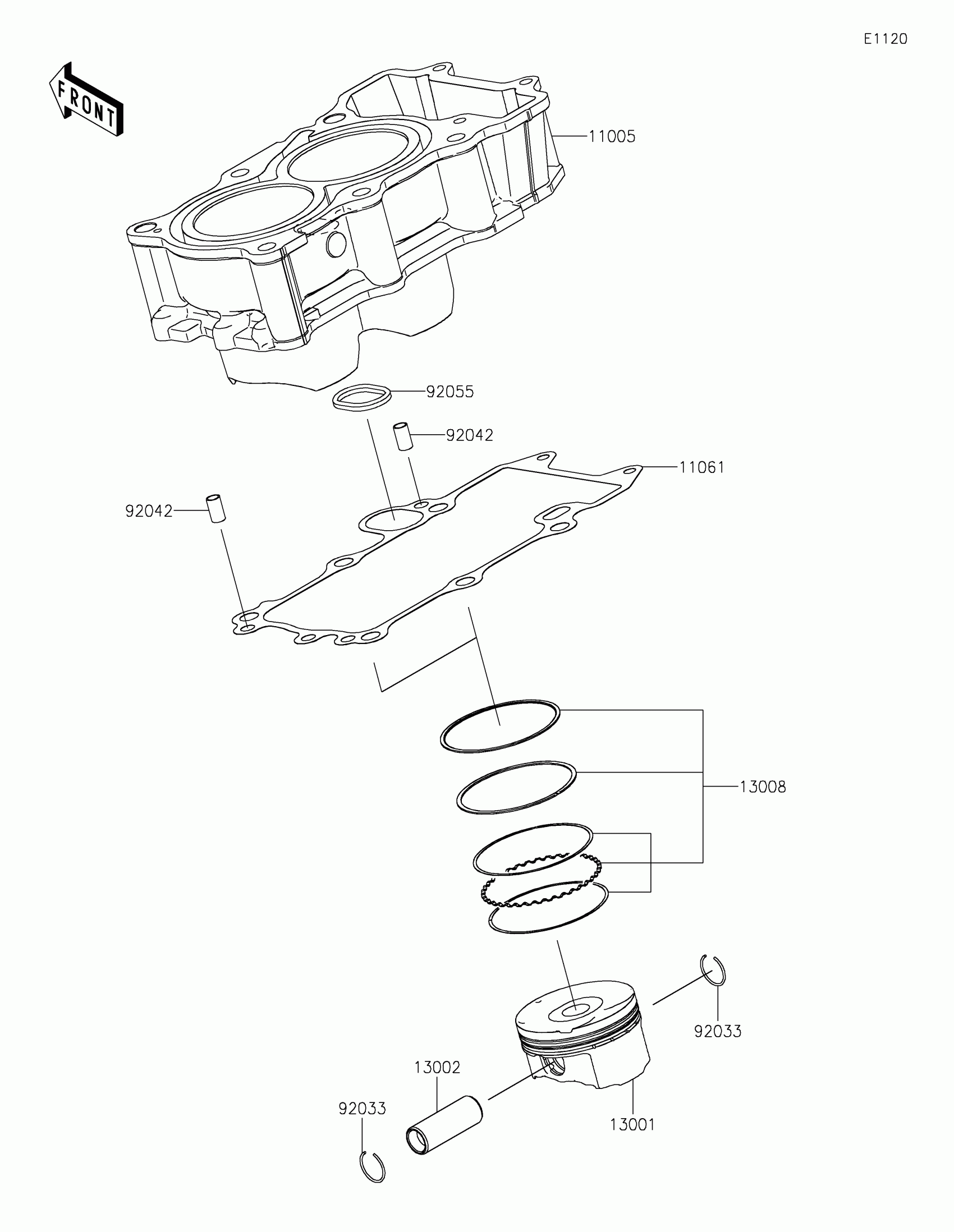

2025 Kawasaki Eliminator ABS Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0740

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1458

1
Out of stock

13001

PISTON-ENGINE

13001-0840

1
Out of stock

13002

PIN-PISTON

13002-0050

1
Out of stock

13008

RING-SET-PISTON

13008-0603

1
Out of stock

92033

RING-SNAP

92033-1054

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92055

RING-O

92055-0888

1
Out of stock
