2025 Kawasaki Eliminator ABS OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

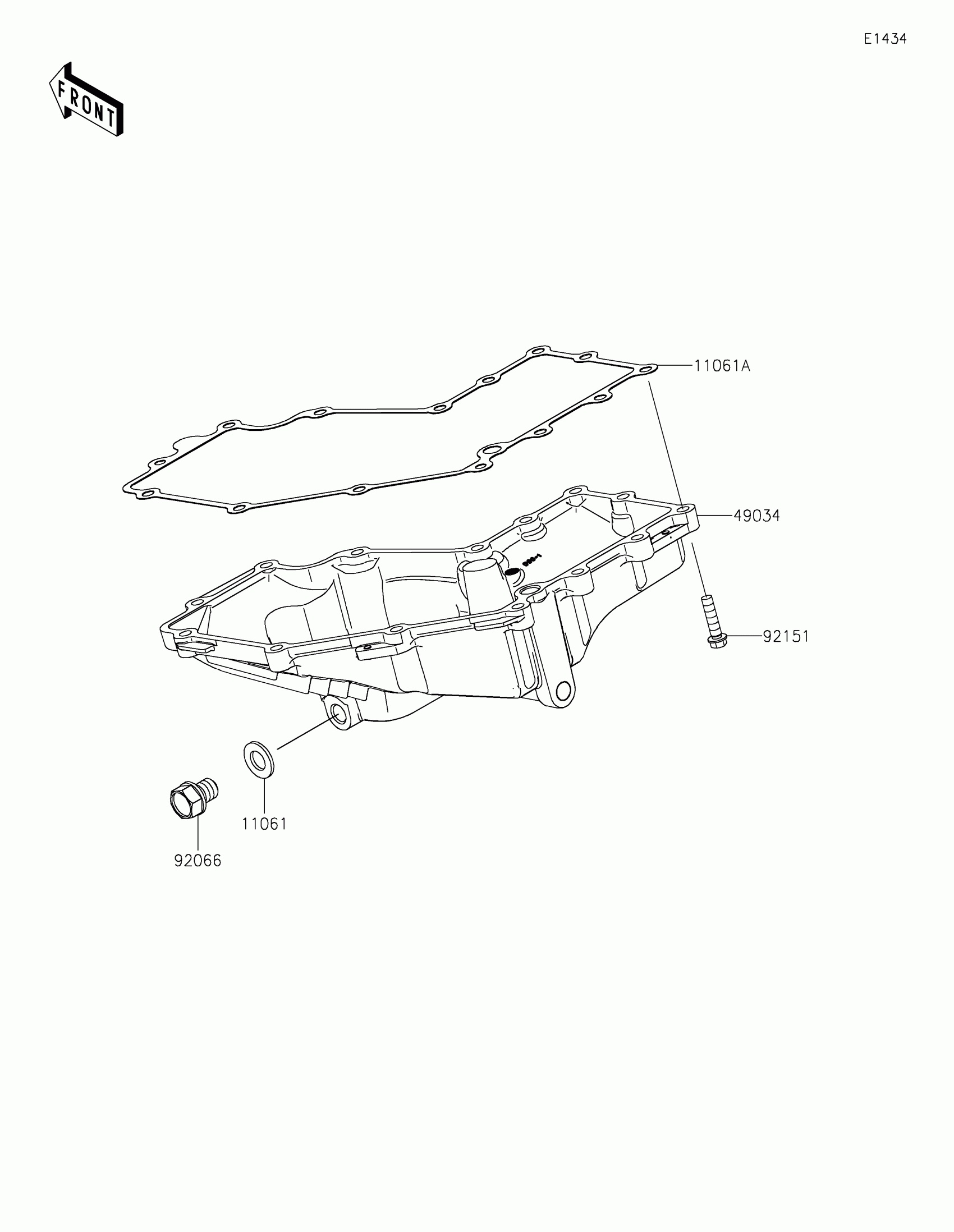

2025 Kawasaki Eliminator ABS OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,12X22X2

11061-0417

1
Out of stock

11061A

GASKET,OILPAN

11061-1251

1
Out of stock

49034

PAN-OIL

49034-0568

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0767

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock
