2025 Kawasaki Eliminator ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

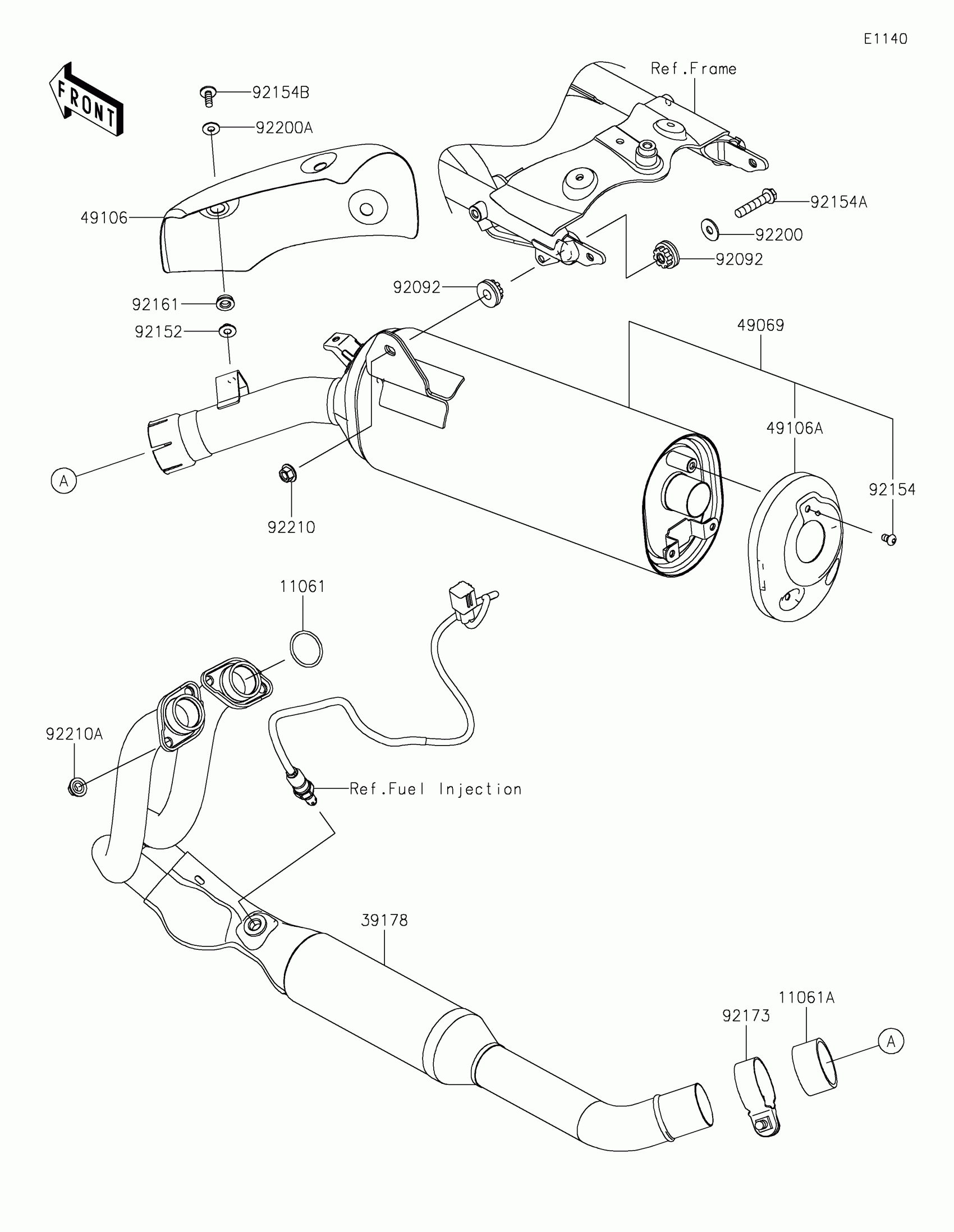

2025 Kawasaki Eliminator ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-1249

1
Out of stock

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0448

1
Out of stock

49069

MUFFLER-ASSY

49069-0911

1
Out of stock

49106

COVER-MUFFLER

49106-0876

1
Out of stock

49106A

COVER-MUFFLER,END

49106-0883

1
Out of stock

92092

BUSHING-RUBBER

92092-0044

1
Out of stock

92152

COLLAR

92152-3804

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-7021

1
Out of stock

92154A

BOLT,FLANGED,8X40

92154-7038

1
Out of stock

92154B

BOLT,SOCKET,6X16

92154-7234

1
Out of stock

92161

DAMPER

92161-2534

1
Out of stock

92173

CLAMP

92173-1931

1
Out of stock

92200

WASHER,8.5X19X1

92200-1733

1
Out of stock

92200A

WASHER

92200-2636

1
Out of stock

92210

NUT,8MM

92210-0121

1
Out of stock

92210A

NUT,8MM

92210-1114

1
Out of stock
