1994 Kawasaki Eliminator 250 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

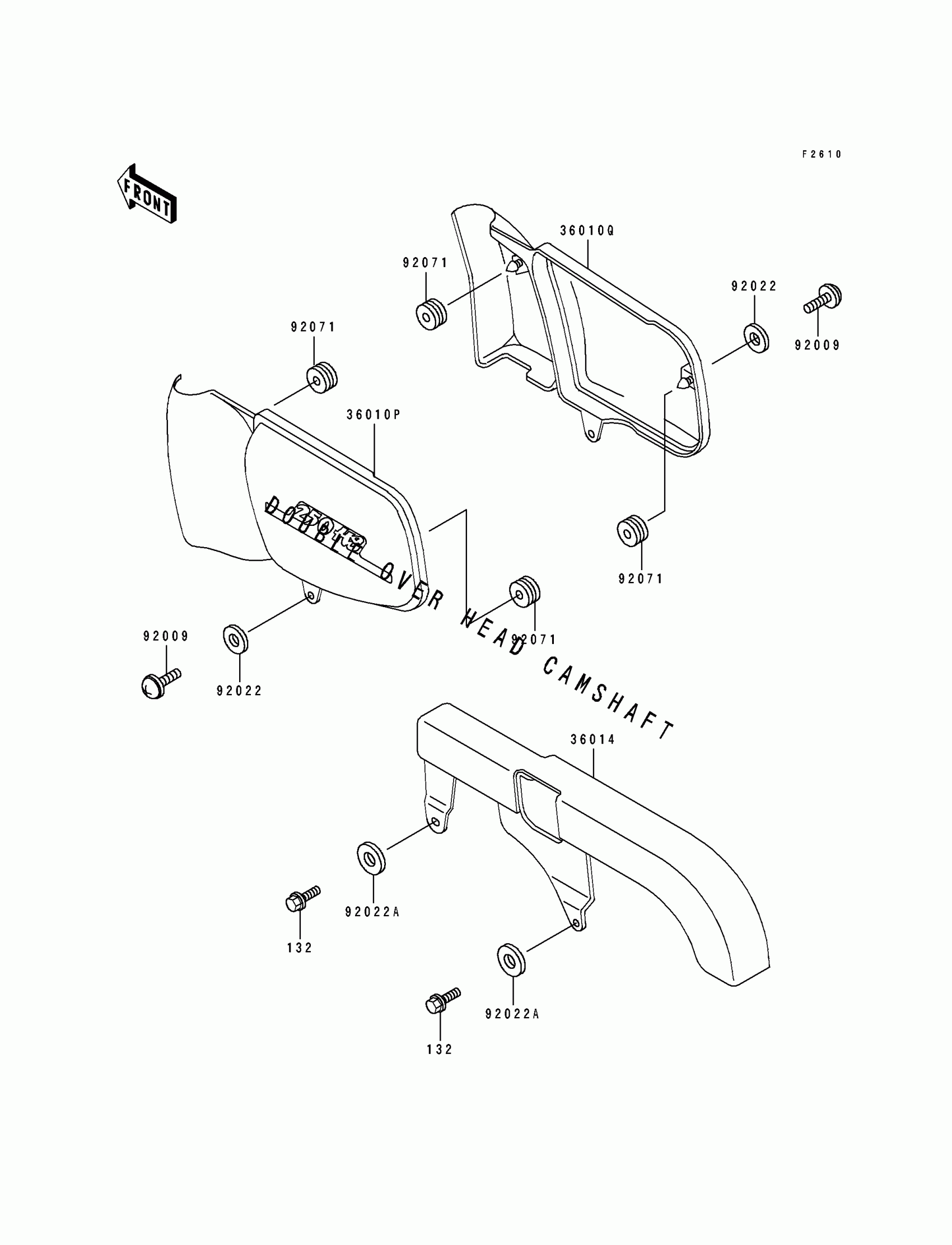

1994 Kawasaki Eliminator 250 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36010P

COVER-SIDE,LH,RED/CR PLATED

36010-5406-HX

1
Out of stock

36010Q

1

$171.14

In stock

36014

CASE-CHAIN

36014-1148

1

$78.71

In stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92022A

WASHER,6.5X20X1.6,WHITE

92022-193

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

132

1

$3.75

In stock
