1994 Kawasaki Eliminator 250 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

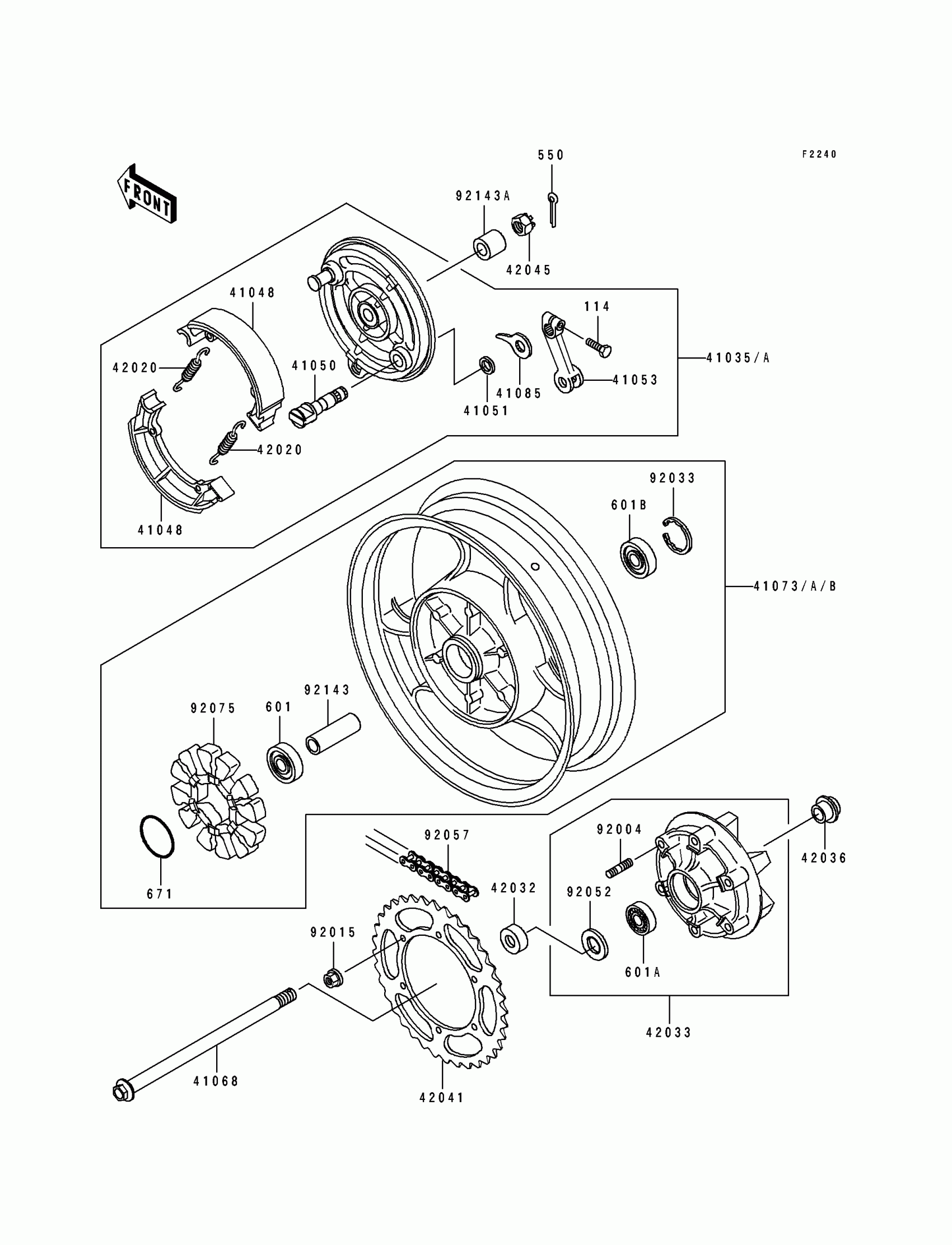

1994 Kawasaki Eliminator 250 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41035A

PANEL-ASSY-BRAKE,RR

41035-1451

1
Out of stock

41048

SHOE-BRAKE

41048-1069

1

$24.30

In stock

41050

CAM-BRAKE

41050-1065

1

$40.90

In stock

41051

SEAL,BRAKE CAM

41051-003

1

$3.39

In stock

41053

LEVER-BRAKE CAM

41053-1068

1

$52.48

In stock

41068

AXLE,RR

41068-1192

1
Out of stock

41073B

WHEEL-ASSY,RR,G.GRAY

41073-1559-GE

1
Out of stock

41085

INDICATOR

41085-1060

1
Out of stock

42020

SPRING,BRAKE SHOE

42020-004

1
Out of stock

42032

COLLAR,17X35X17.5

42032-068

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1107

1
Out of stock

42036

SLEEVE,RR HUB,L=30

42036-1055

1
Out of stock

42041

SPROCKET-HUB,44T

42041-1292

1
Out of stock

42045

NUT,CASTLE,16MM

42045-014

1
Out of stock

92004

STUD,10X19

92004-1111

1
Out of stock

92015

NUT,10MM

92015-1720

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK520SV-OX114L

92057-1240

1
Out of stock

92075

DAMPER,RR HUB SHOCK

92075-1436

1
Out of stock

92143

COLLAR,17.2X25X105

92143-1124

1
Out of stock

92143A

COLLAR,17.2X30X23.5

92143-1125

1
Out of stock

114

BOLT HEX HEAD 8X28

114G0828

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6203ZZC3

601B6203ZZ

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601B

BEARING-BALL,#6303ZZC3

601B6303ZZ

1
Out of stock

671

O RING

671B2550

1
Out of stock
