1994 Kawasaki Eliminator 250 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

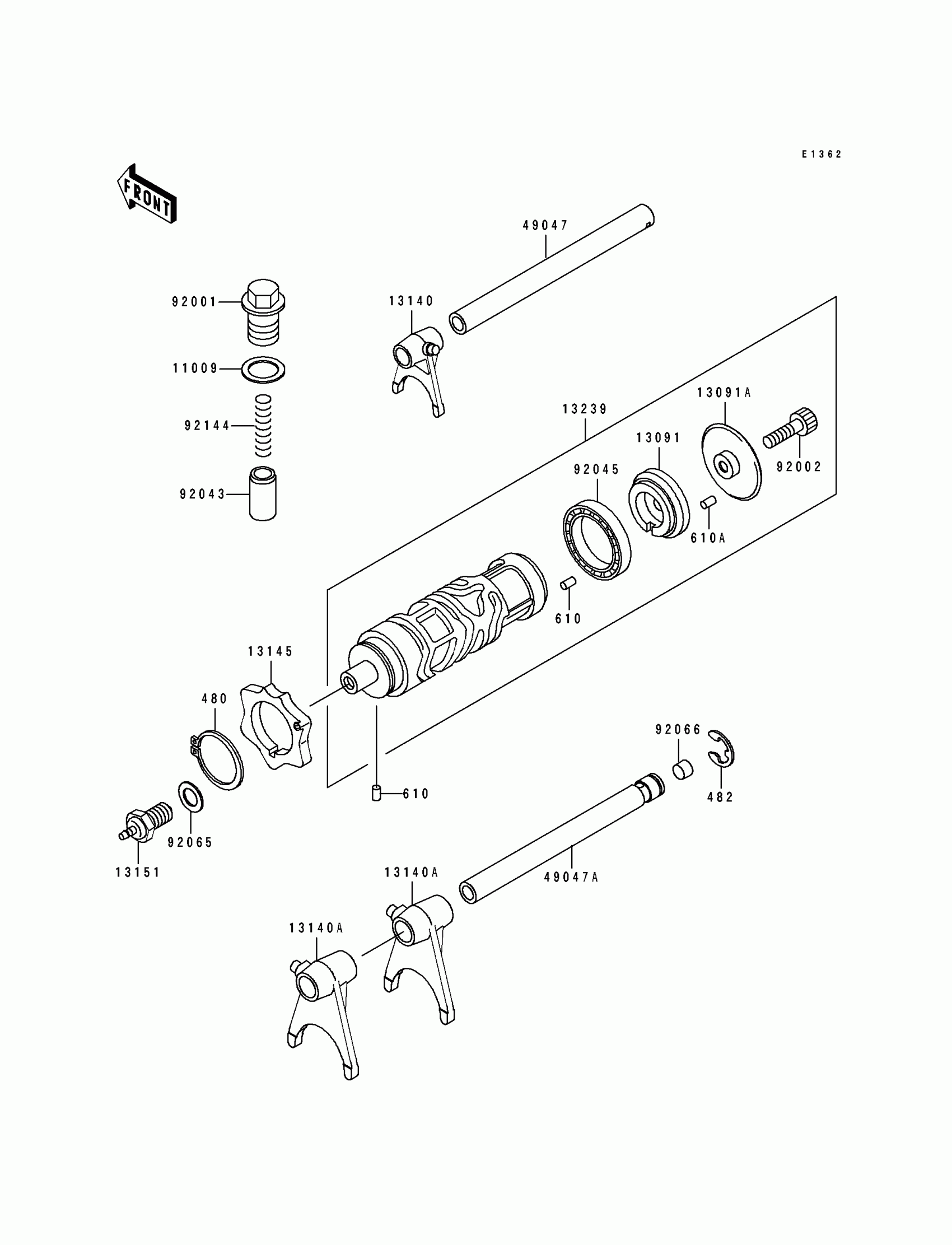

1994 Kawasaki Eliminator 250 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

13091

HOLDER

13091-1417

1

$42.77

In stock

13091A

HOLDER,CHANGE DRUM

13091-1464

1

$7.47

In stock

13140

FORK-SHIFT,IN

13140-1148

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-1149

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1131

1
Out of stock

49047

ROD-SHIFT,IN

49047-1066

1
Out of stock

49047A

ROD-SHIFT,OUT

49047-1067

1
Out of stock

92001

BOLT,NEUTRAL POSITION

92001-1037

1
Out of stock

92002

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

92043

PIN

92043-076

1
Out of stock

92045

BEARING-BALL,6806

92045-1152

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG

92066-1246

1
Out of stock

92144

SPRING,NEUTRAL POSITION

92144-1580

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

610A

ROLLER,4X8

610A0408

1
Out of stock
