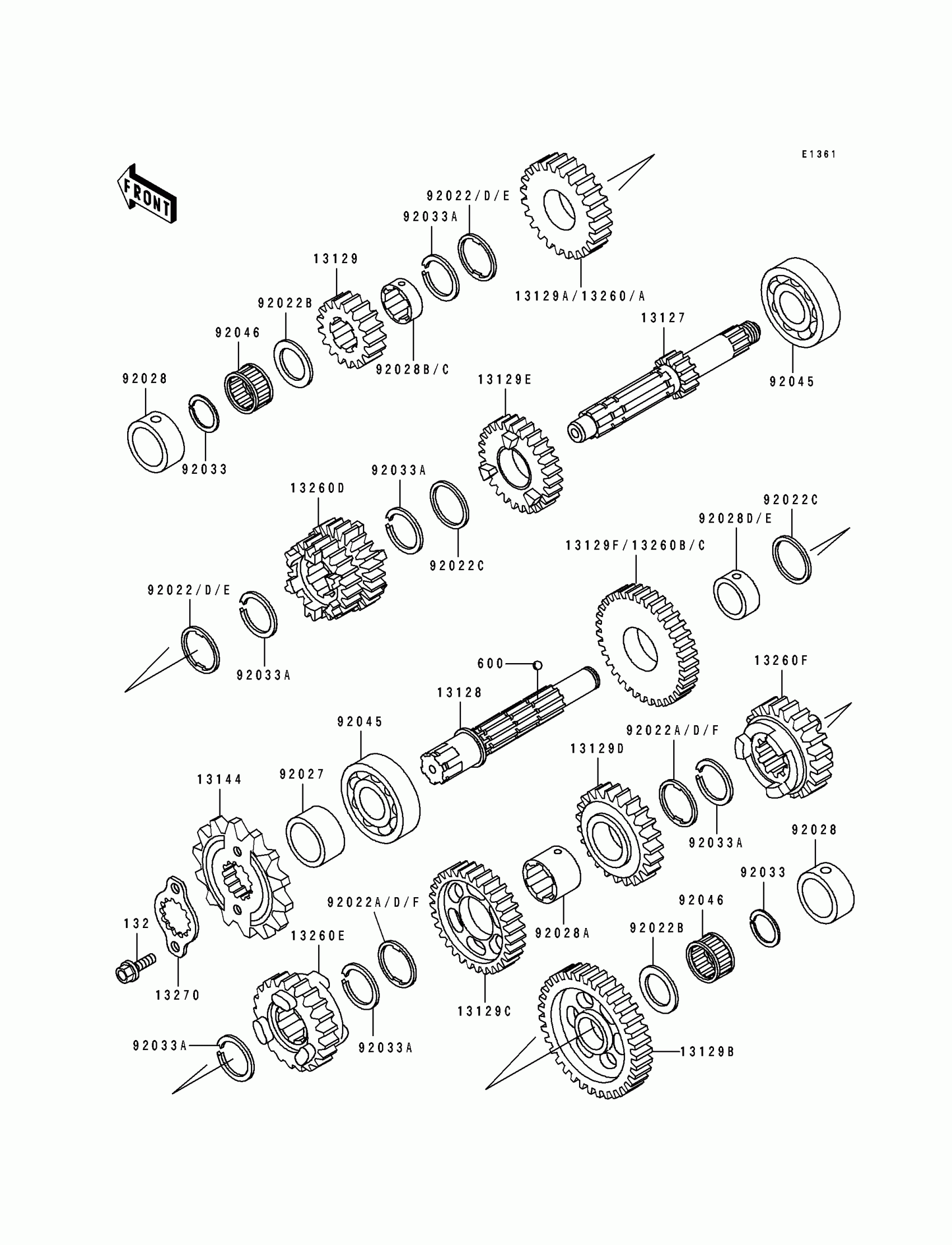

Kawasaki Eliminator 250 Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-1134

$242.78

13128

SHAFT-TRANSMISSION OUTPUT

13128-1172

Unavailable

13129

GEAR,INPUT 2ND,19T

13129-1086

$103.55

13129B

GEAR,OUTPUT LOW,39T

13129-1254

$159.69

13129C

GEAR,OUTPUT 3RD,31T

13129-1781

$131.39

13129D

GEAR,OUTPUT 4TH,29T

13129-1782

$150.23

13129E

GEAR,INPUT 5TH,27T

13129-1882

$152.89

13144

SPROCKET-OUTPUT,14T

13144-1126

$47.91

13260

GEAR,INPUT TOP,28T

13260-1033

$140.18

13260B

GEAR,OUTPUT 2ND,34T

13260-1034

$142.67

13260D

GEAR,INPUT 3RD&4TH,22T&25T

13260-1098

$139.46

13260E

GEAR,OUTPUT TOP,25T

13260-1099

$146.70

13260F

GEAR,OUTPUT 5TH,27T

13260-1267

Unavailable

13270

PLATE,SPROCKET

13270-1060

$6.69

92022B

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022C

WASHER,25.3X30X1

92022-161

$8.10

92022D

WASHER,23X30X1.0

92022-1935

$4.31

92027

COLLAR,ENGINE SPROCKET

92027-1302

$14.47

92028

BUSHING,25X33X14

92028-1426

$42.11

92028A

BUSHING

92028-1437

$29.55

92028B

BUSHING,TOP GEAR

92028-1563

$25.53

92028D

BUSHING,9.4X25X28

92028-1564

$20.37

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92045

BEARING-BALL,#6205NX3

92045-1013

$19.72

92046

BEARING-NEEDLE,20R2513P

92046-044

$21.78

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

600

BALL-STEEL,5/32

600A0500

$0.68
