2012 Kawasaki Edge VR Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2012 Kawasaki Edge VR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

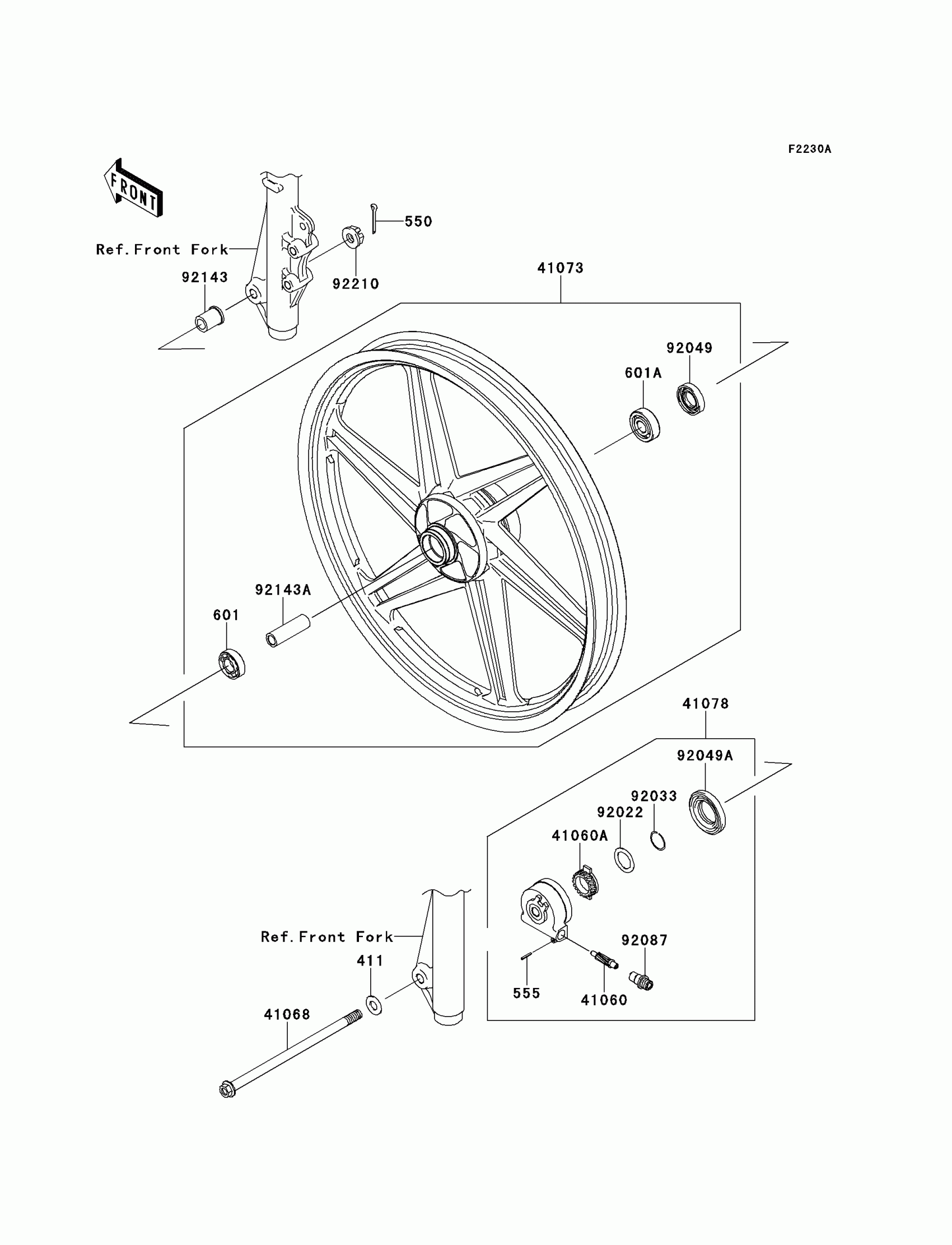

2012 Kawasaki Edge VR Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

550

PIN-COTTER,2.5X25

550AA2525

1

$1.22

In stock

555

PIN-SPRING

555A0214

1

$0.78

In stock

601

BEARING-BALL,#6200UG

601B6200UG

1
Out of stock

601A

BEARING-BALL

601B6300UG

1

$12.42

In stock

41060

1

$20.42

In stock

41060A

1

$20.42

In stock

41068

AXLE,FR

41068-1362

1

$44.95

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0569-21V

1

$339.84

In stock

41078

1

$88.39

In stock

92022

WASHER,20X29X1.0

92022-1510

1

$4.08

In stock

92033

RING-SNAP,19MM

92033-1160

1

$3.98

In stock

92049

SEAL-OIL,DD20X35X7

92049-0052

1
Out of stock

92049A

SEAL-OIL

92049-0717

1
Out of stock

92087

BUSHING-METER GEAR

92087-0002

1

$19.85

In stock

92143

1

$13.22

In stock

92143A

COLLAR,FR HUB,L=51

92143-1992

1

$11.54

In stock

92210

NUT,CASTLE,10MM

92210-1093

1
Out of stock
