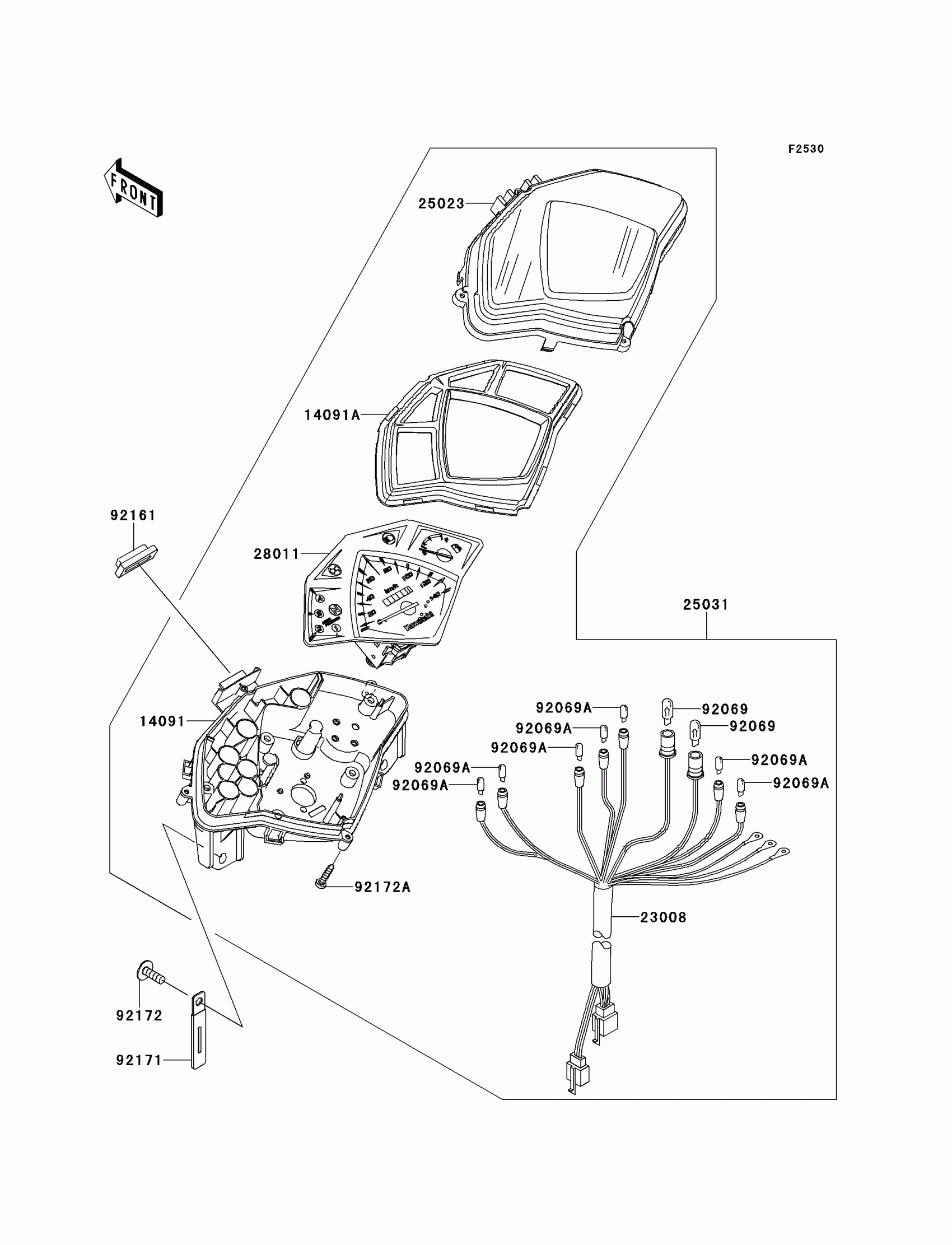

Find the part on the Meter diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-1799

1

$8.10

In stock

14091A

1

$7.97

In stock

23008

SOCKET-ASSY,METER

23008-0111

1

$29.08

In stock

25023

1

$8.66

In stock

25031

METER-ASSY,KPH

25031-0290

1

$212.52

In stock

28011

METER,SPEED&FUEL

28011-0155

1

$82.89

In stock

92069

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92069A

BULB,12V 1.7W,T6.5

92069-1070

1

$5.16

In stock

92161

DAMPER

92161-1306

1

$0.86

In stock

92171

1

$1.59

In stock

92172

SCREW,6X18

92172-0192

1

$10.83

In stock

92172A

SCREW,3X12

92172-0475

1

$0.85

In stock
