2012 Kawasaki Edge R Headlight Diagram

← All diagrams

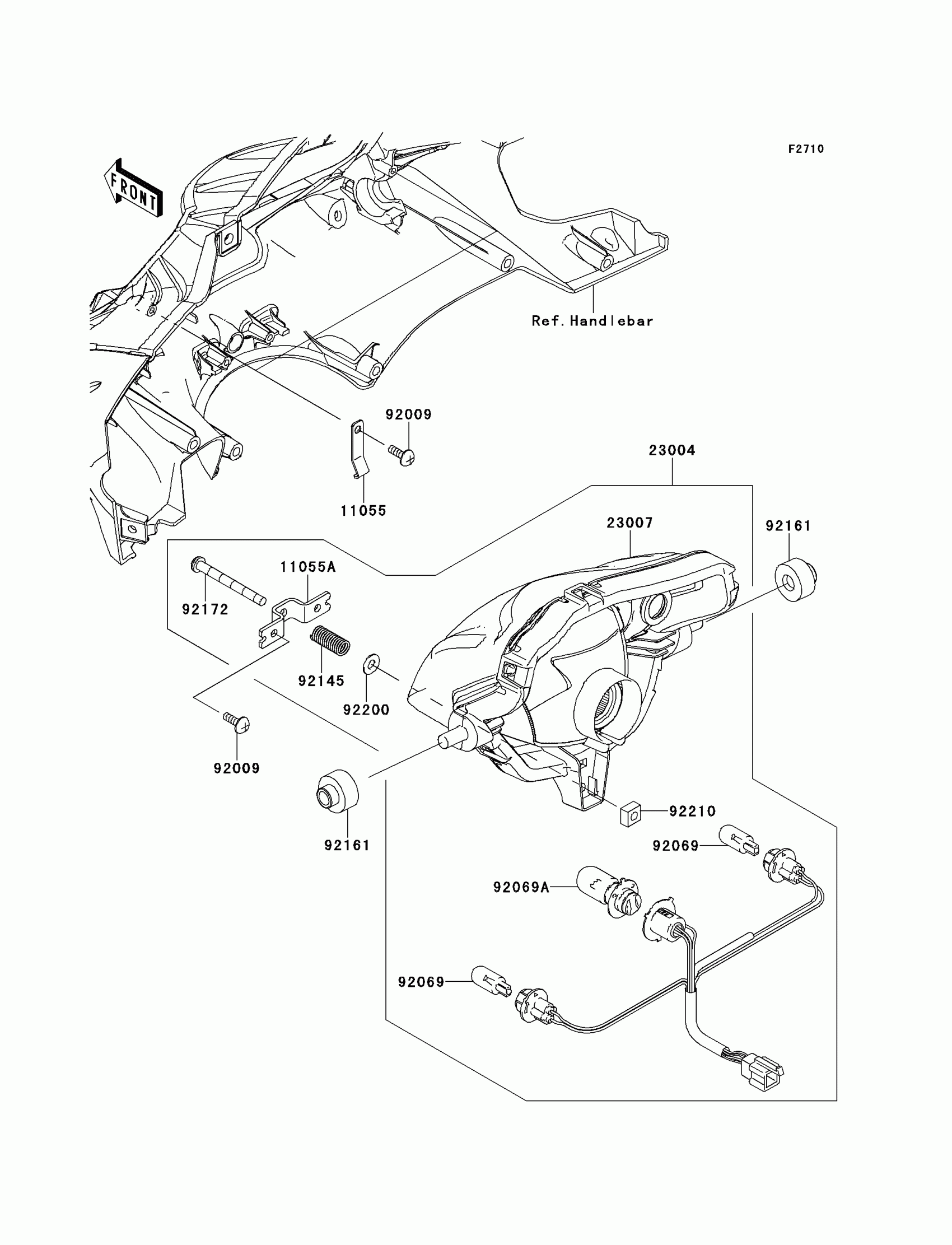

Find the part on the Headlight diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-1564

1

$0.86

In stock

11055A

BRACKET

11055-1889

1

$5.46

In stock

23004

LAMP-HEAD

23004-0306

1

$133.09

In stock

23007

LENS-COMP,HEAD LAMP

23007-0140

1

$54.74

In stock

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 32/32W

92069-1123

1

$8.98

In stock

92145

SPRING

92145-0745

1

$1.10

In stock

92161

DAMPER

92161-0139

1

$0.86

In stock

92172

SCREW

92172-0447

1

$0.85

In stock

92200

WASHER

92200-0530

1
Out of stock

92210

NUT,5MM

92210-0413

1
Out of stock
