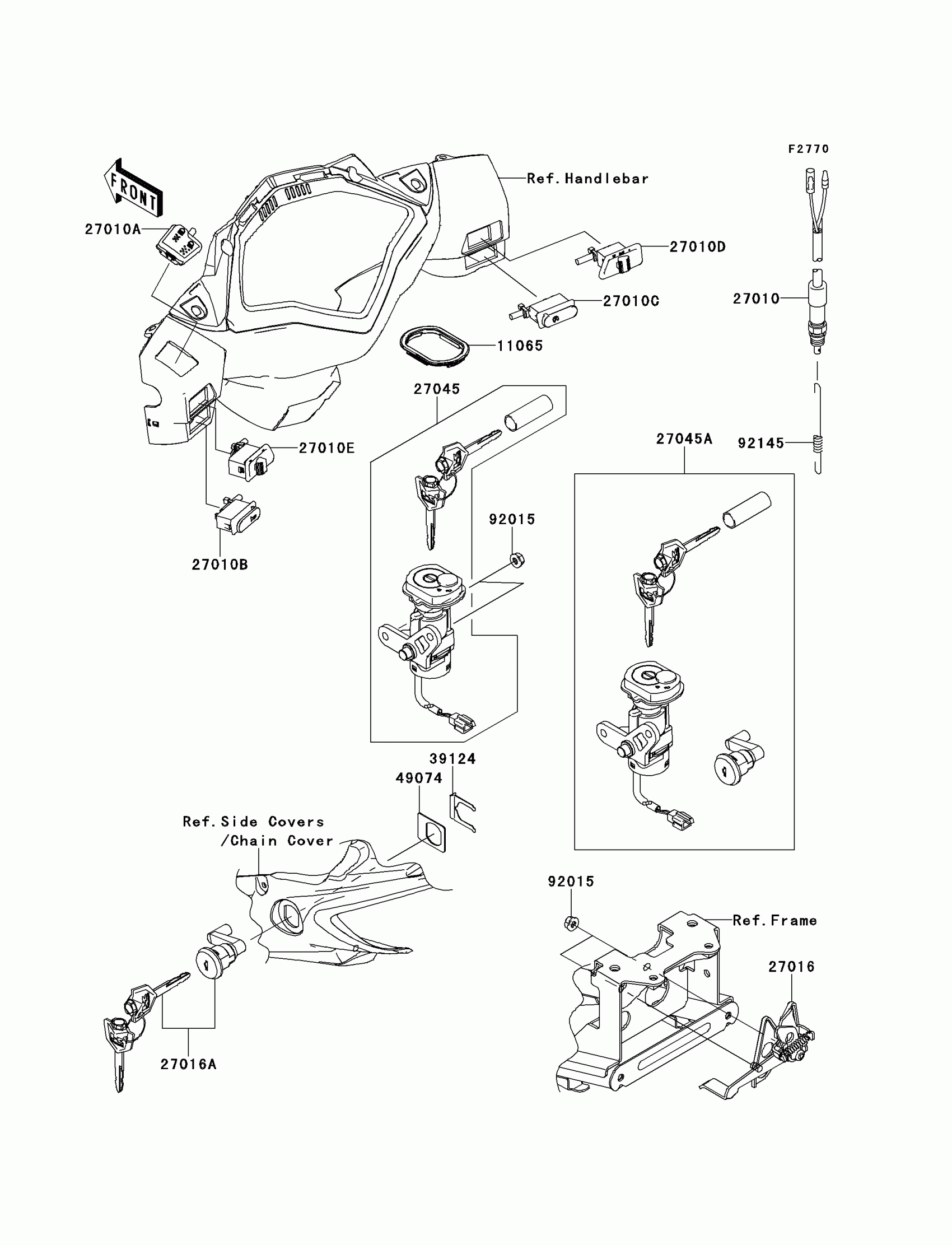

Find the part on the Ignition Switch diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,IGNITION SWITCH

11065-0361

1

$9.75

In stock

27010

SWITCH,REAR BRAKE

27010-0048

1

$35.44

In stock

27010A

SWITCH,DIMMER

27010-0052

1

$10.88

In stock

27010B

SWITCH,HORN

27010-0053

1

$16.83

In stock

27010C

SWITCH,STARTER

27010-0055

1

$13.75

In stock

27010D

SWITCH,LIGHTING

27010-0056

1

$13.20

In stock

27010E

SWITCH,TURN SIGNAL

27010-0096

1

$15.81

In stock

27016

LOCK-ASSY,SEAT

27016-0072

1

$52.76

In stock

27016A

LOCK-ASSY,SEAT

27016-5366

1

$53.22

In stock

27045

1

$136.96

In stock

27045A

SWITCH-ASSY

27045-9504

1

$163.64

In stock

39124

SNAP,SEAT LOCK

39124-0002

1

$1.54

In stock

49074

PLATE-THRUST

49074-0001

1

$2.17

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92145

1

$4.51

In stock
