1983 Kawasaki Eddie Lawson Replica Valves Diagram

← All diagrams

Find the part on the Valves diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

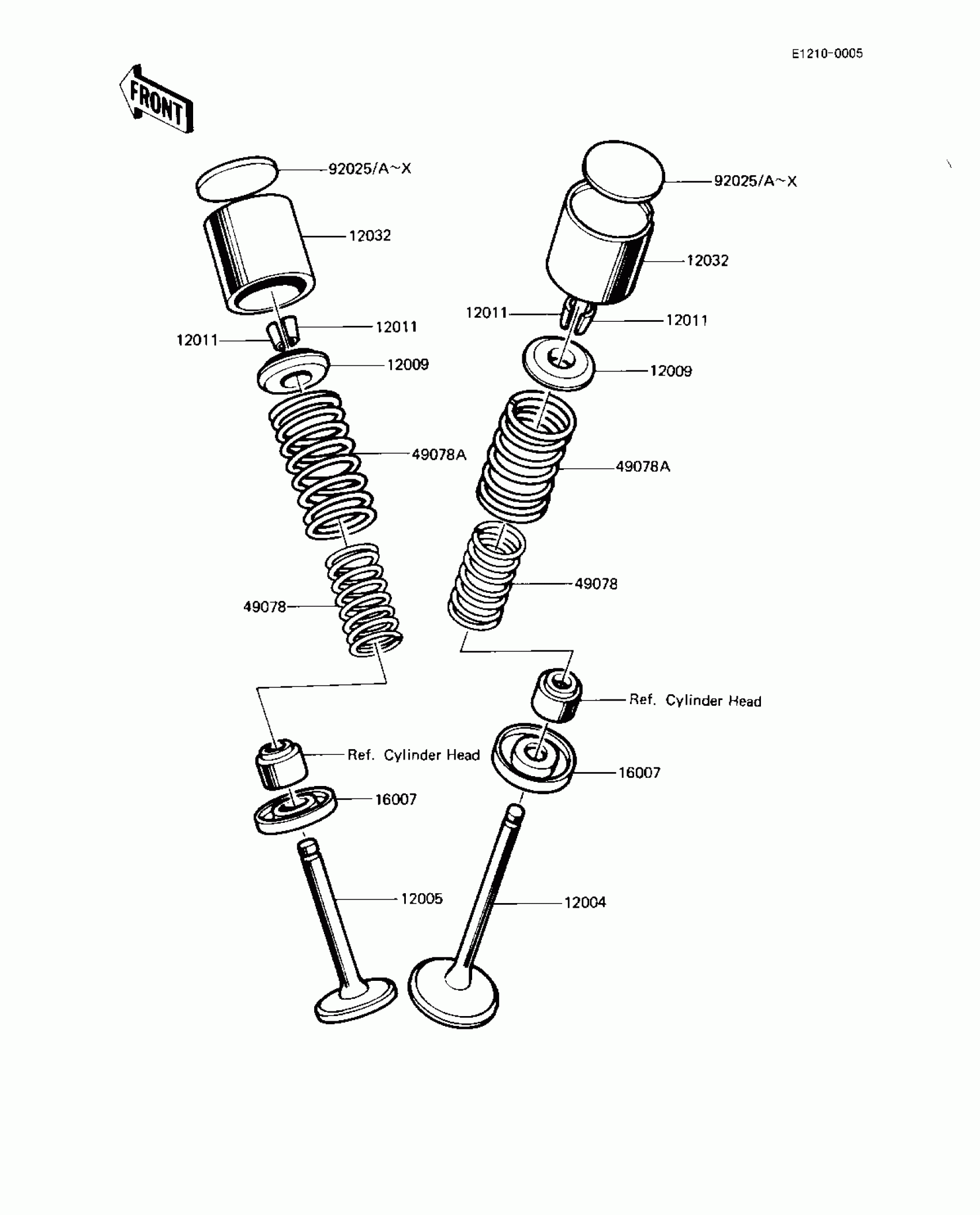

1983 Kawasaki Eddie Lawson Replica Valves Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1013

1
Out of stock

12005

VALVE-EXHAUST

12005-1011

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-005

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12032

TAPPET

12032-1002

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1001

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1002

1
Out of stock

92025

SHIM,T=2.00

12037-001

—
Out of stock

92025A

SHIM,T=2.05

12037-002

—
Out of stock

92025B

SHIM,T=2.10

12037-003

—
Out of stock

92025C

SHIM,T=2.15

12037-004

—
Out of stock

92025D

SHIM,T=2.20

12037-005

—
Out of stock

92025E

SHIM,T=2.25

12037-006

—
Out of stock

92025F

SHIM,T=2.30

12037-007

—
Out of stock

92025G

SHIM,T=2.35

12037-008

—
Out of stock

92025H

SHIM,T=2.40

12037-009

—
Out of stock

92025I

SHIM,T=2.45

12037-010

—
Out of stock

92025J

SHIM,T=2.50

12037-011

—
Out of stock

92025K

SHIM,T=2.55

12037-012

—
Out of stock

92025L

SHIM,T=2.60

12037-013

—
Out of stock

92025M

SHIM,T=2.65

12037-014

—
Out of stock

92025N

SHIM,T=2.70

12037-015

—
Out of stock

92025O

SHIM,T=2.75

12037-016

—
Out of stock

92025P

SHIM,T=2.80

12037-017

—
Out of stock

92025Q

SHIM,T=2.85

12037-018

—
Out of stock

92025R

SHIM,T=2.90

12037-019

—
Out of stock

92025S

SHIM,T=2.95

12037-020

—
Out of stock

92025T

SHIM,T=3.00

12037-021

—
Out of stock

92025U

SHIM,T=3.05

12037-022

—
Out of stock

92025V

SHIM,T=3.10

12037-023

—
Out of stock

92025W

SHIM,T=3.15

12037-024

—
Out of stock

92025X

SHIM,T=3.20

12037-025

—
Out of stock
